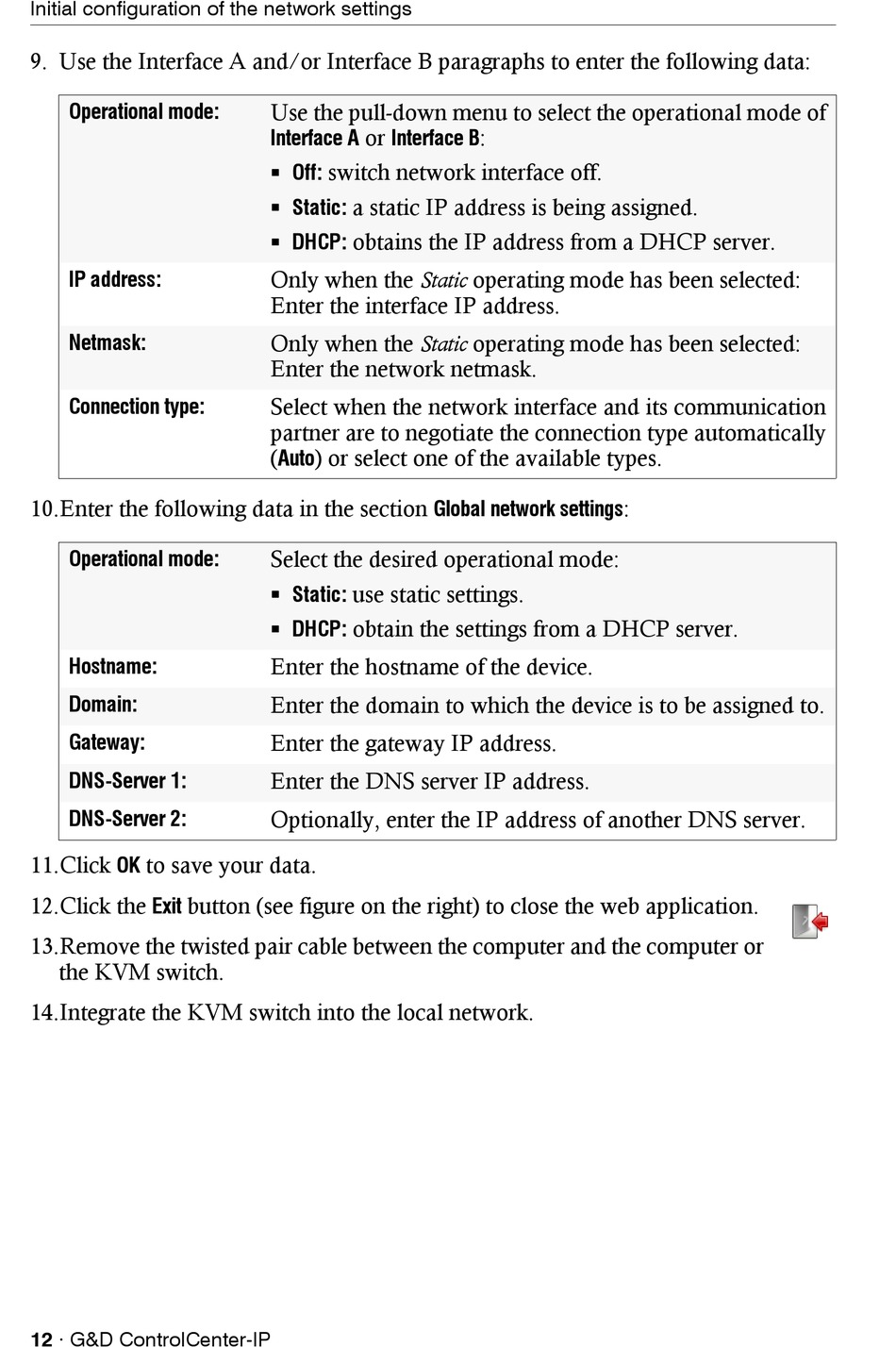

Initial configuration of the network settings
9. Use the Interface A and/or Interface B paragraphs to enter the following data:
Operational mode:
IP address:
Netmask:
Connection type:
10.Enter the following data in the section
Operational mode:
Hostname:
Domain:
Gateway:
DNS-Server 1:
DNS-Server 2:
11.Click to save your data.
OK
12.Click the button (see figure on the right) to close the web application.
Exit
13.Remove the twisted pair cable between the computer and the computer or
the KVM switch.
14.Integrate the KVM switch into the local network.
12 · G&D ControlCenter-IP
Use the pull-down menu to select the operational mode of
or
Interface A Interface B
 Off: switch network interface off.
 Static: a static IP address is being assigned.
 DHCP: obtains the IP address from a DHCP server.
Only when the Static operating mode has been selected:
Enter the interface IP address.
Only when the Static operating mode has been selected:
Enter the network netmask.
Select when the network interface and its communication
partner are to negotiate the connection type automatically
( ) or select one of the available types.
Auto
Global network settings
Select the desired operational mode:
 Static: use static settings.
 DHCP: obtain the settings from a DHCP server.
Enter the hostname of the device.
Enter the domain to which the device is to be assigned to.
Enter the gateway IP address.
Enter the DNS server IP address.
Optionally, enter the IP address of another DNS server.
:
:
