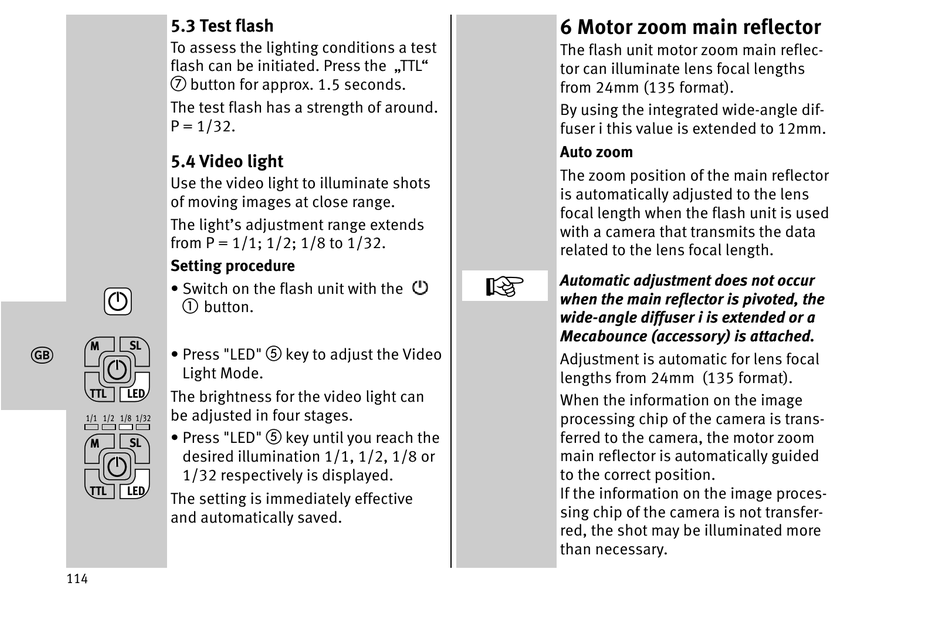

5.3 Test flash

To assess the lighting conditions a test
flash can be initiated. Press the „TTL"
button for approx. 1.5 seconds.
The test flash has a strength of around.
P = 1/32.

5.4 Video light

Use the video light to illuminate shots
of moving images at close range.
The light's adjustment range extends
from P = 1/1; 1/2; 1/8 to 1/32.
Setting procedure
• Switch on the flash unit with the
button.
k
M SL
• Press "LED"
Light Mode.
TTL LED
The brightness for the video light can
be adjusted in four stages.
1/1 1/2 1/8 1/32
• Press "LED"
M SL
desired illumination 1/1, 1/2, 1/8 or
1/32 respectively is displayed.
TTL LED
The setting is immediately effective
and automatically saved.
114
key to adjust the Video
key until you reach the

6 Motor zoom main reflector

The flash unit motor zoom main reflec-
tor can illuminate lens focal lengths
from 24mm (135 format).
By using the integrated wide-angle dif-
fuser i this value is extended to 12mm.
Auto zoom
The zoom position of the main reflector
is automatically adjusted to the lens
focal length when the flash unit is used
with a camera that transmits the data
related to the lens focal length.
+
Automatic adjustment does not occur
when the main reflector is pivoted, the
wide-angle diffuser i is extended or a
Mecabounce (accessory) is attached.
Adjustment is automatic for lens focal
lengths from 24mm (135 format).
When the information on the image
processing chip of the camera is trans-
ferred to the camera, the motor zoom
main reflector is automatically guided
to the correct position.
If the information on the image proces-
sing chip of the camera is not transfer-
red, the shot may be illuminated more
than necessary.
