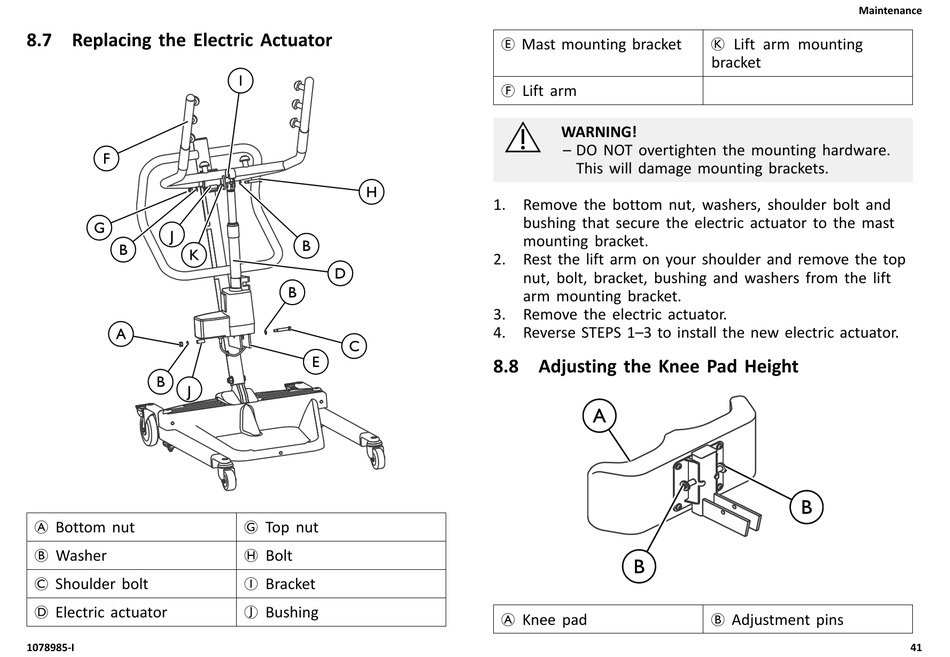

8.7 Replacing the Electric Actuator

A Bottom nut
B Washer
C Shoulder bolt
D Electric actuator
1078985-I
G Top nut
H Bolt
I Bracket
J Bushing
E Mast mounting bracket
F Lift arm
WARNING!
– DO NOT overtighten the mounting hardware.
This will damage mounting brackets.
1. Remove the bottom nut, washers, shoulder bolt and
bushing that secure the electric actuator to the mast
mounting bracket.
2. Rest the lift arm on your shoulder and remove the top
nut, bolt, bracket, bushing and washers from the lift
arm mounting bracket.
3. Remove the electric actuator.
4. Reverse STEPS 1–3 to install the new electric actuator.

8.8 Adjusting the Knee Pad Height

A Knee pad
Maintenance
K Lift arm mounting
bracket
B Adjustment pins
41
