Warning:
 Do not damage the transparent PE insulation underneath!
Remove the blue PVC layer

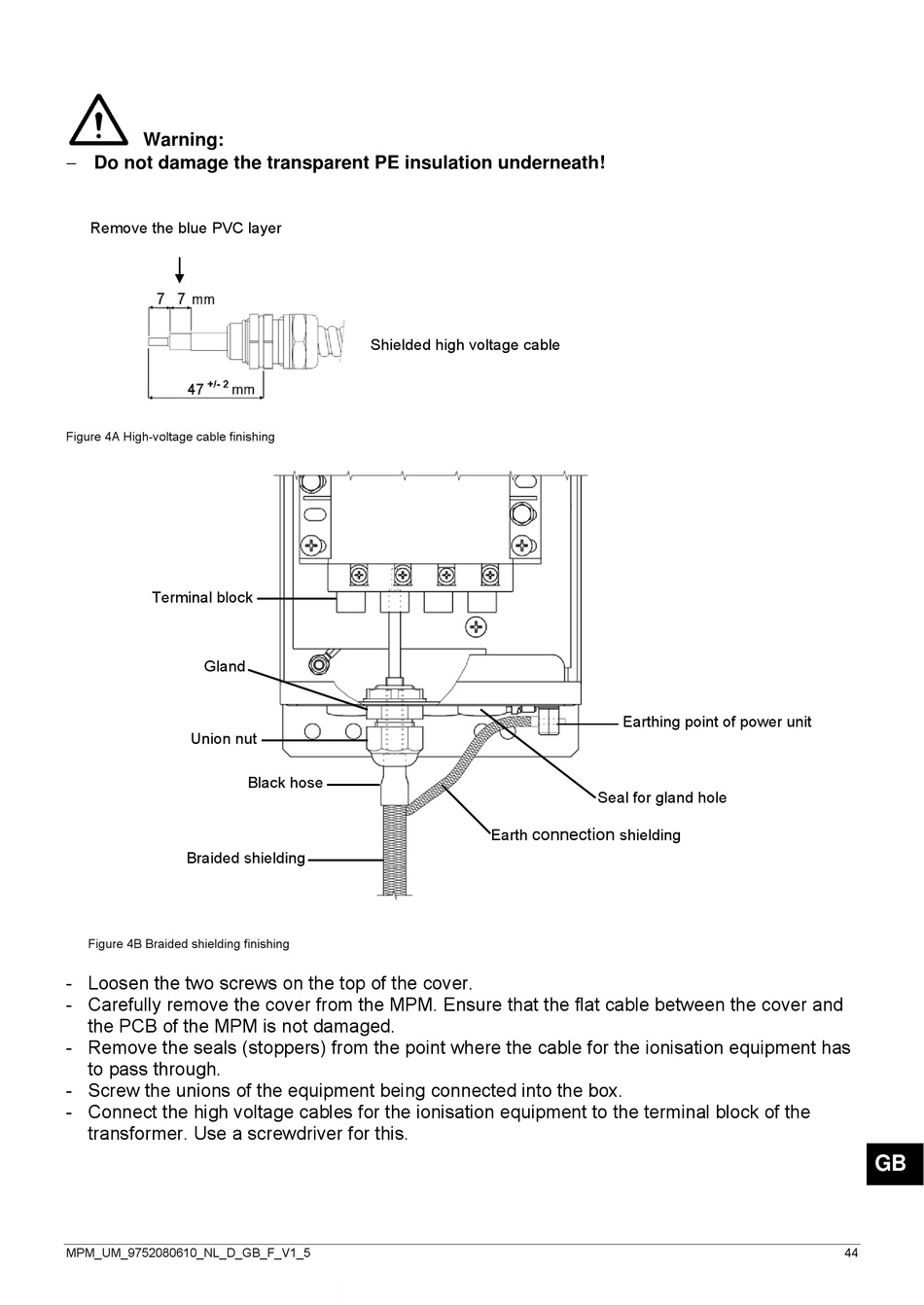

Figure 4A High-voltage cable finishing
Terminal block
Gland
Union nut
Braided shielding
Figure 4B Braided shielding finishing
- Loosen the two screws on the top of the cover.
- Carefully remove the cover from the MPM. Ensure that the flat cable between the cover and
the PCB of the MPM is not damaged.
- Remove the seals (stoppers) from the point where the cable for the ionisation equipment has
to pass through.
- Screw the unions of the equipment being connected into the box.
- Connect the high voltage cables for the ionisation equipment to the terminal block of the
transformer. Use a screwdriver for this.
MPM_UM_9752080610_NL_D_GB_F_V1_5
Shielded high voltage cable
Black hose
Earthing point of power unit
Seal for gland hole
connection
Earth shielding
