hexagon head bolts 32.
Rotate the actuator until the hexagon
G
head bolts / hexagon nuts 32 can be
inserted.
Screw the hexagon head bolts / hexagon
G
nuts 32 with washers 31 back in until
they are hand tight.
Diagonally tighten the hexagon head
G
bolts / hexagon nuts 32 evenly:
Bolt / nut size
M5
M6
M8
M10
M12
M14
M16
M20
14.3 Replacing spare parts in the
multifunction indicator
CAUTION
Use of wrong spare parts!
Damage to the multifunction indicator.
®
Manufacturer liability and guarantee will
®
be void.
Only the listed spare parts may be
G
replaced.
Only use genuine GEMÜ spare parts!
G
When ordering spare parts, state the
G
complete order number of the actuator.
See also chapter 20, "Exploded
drawing and spare parts".
Tightening torque
5 - 6 Nm
10 - 11 Nm
23 - 25 Nm
48 - 52 Nm
82 - 86 Nm
132 - 138 Nm
200 - 210 Nm
390 - 410 Nm
33 / 40

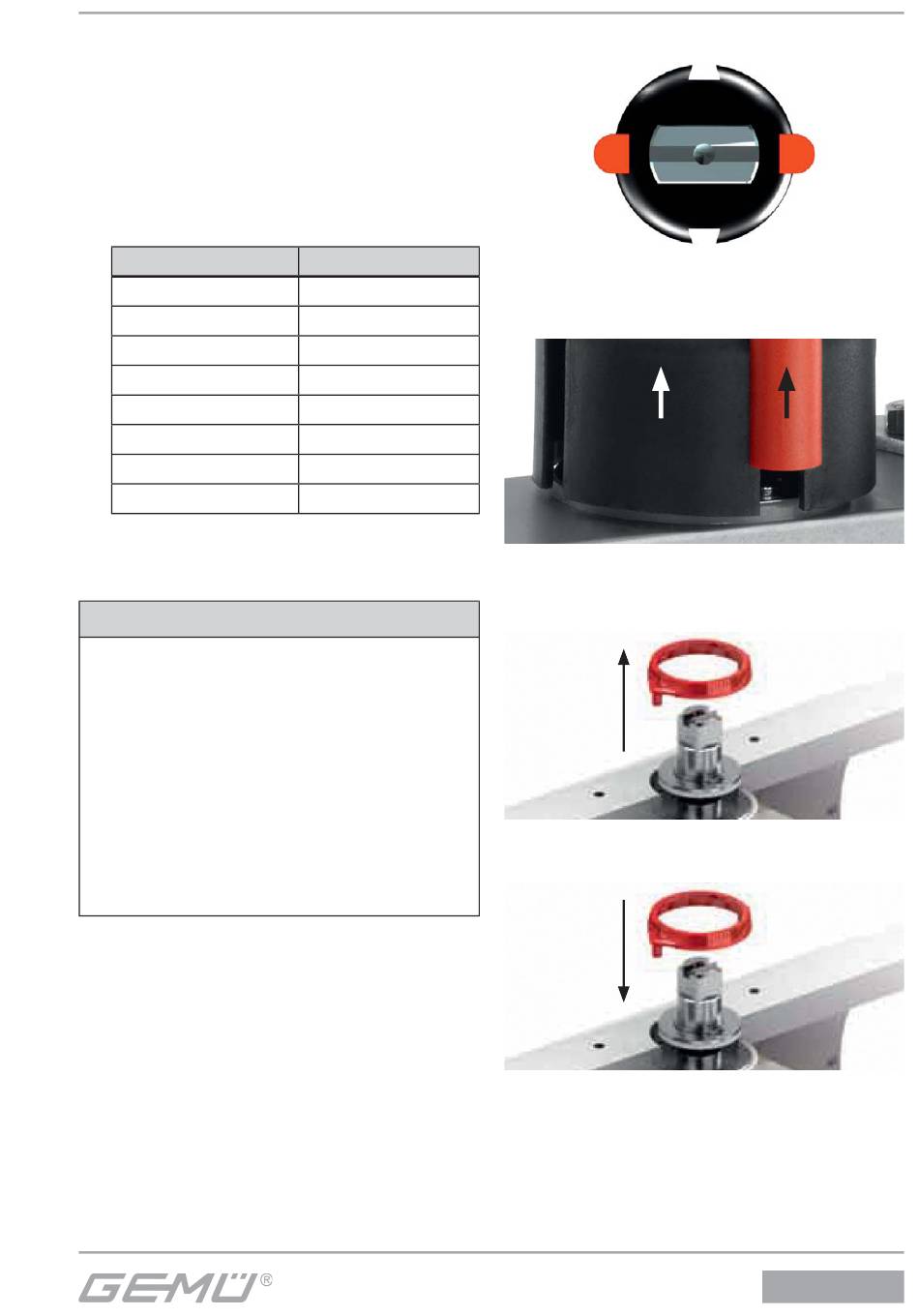

Procedure for ADA 00010:
1
1. Pull up the protective cap 1.
2. Unscrew and remove the protective
cap 2 using a suitable hexagon wrench.
5
3. Remove the cylindrical screws 3 with
spring washers 4.
4. Pull up the multifunction indicator 5.
5. Pull up the scale ring 6.
6. Pull up the mounting sleeve 7.
7. Attach the new mounting sleeve 7.
8. Attach the new scale ring 6.
1
2 1
1
1
3
4
6
7
6
7
ADA / ASR
