Type
ASR Single acting
ADA Double acting
For connectors 2 / 4 see picture on page 29
12

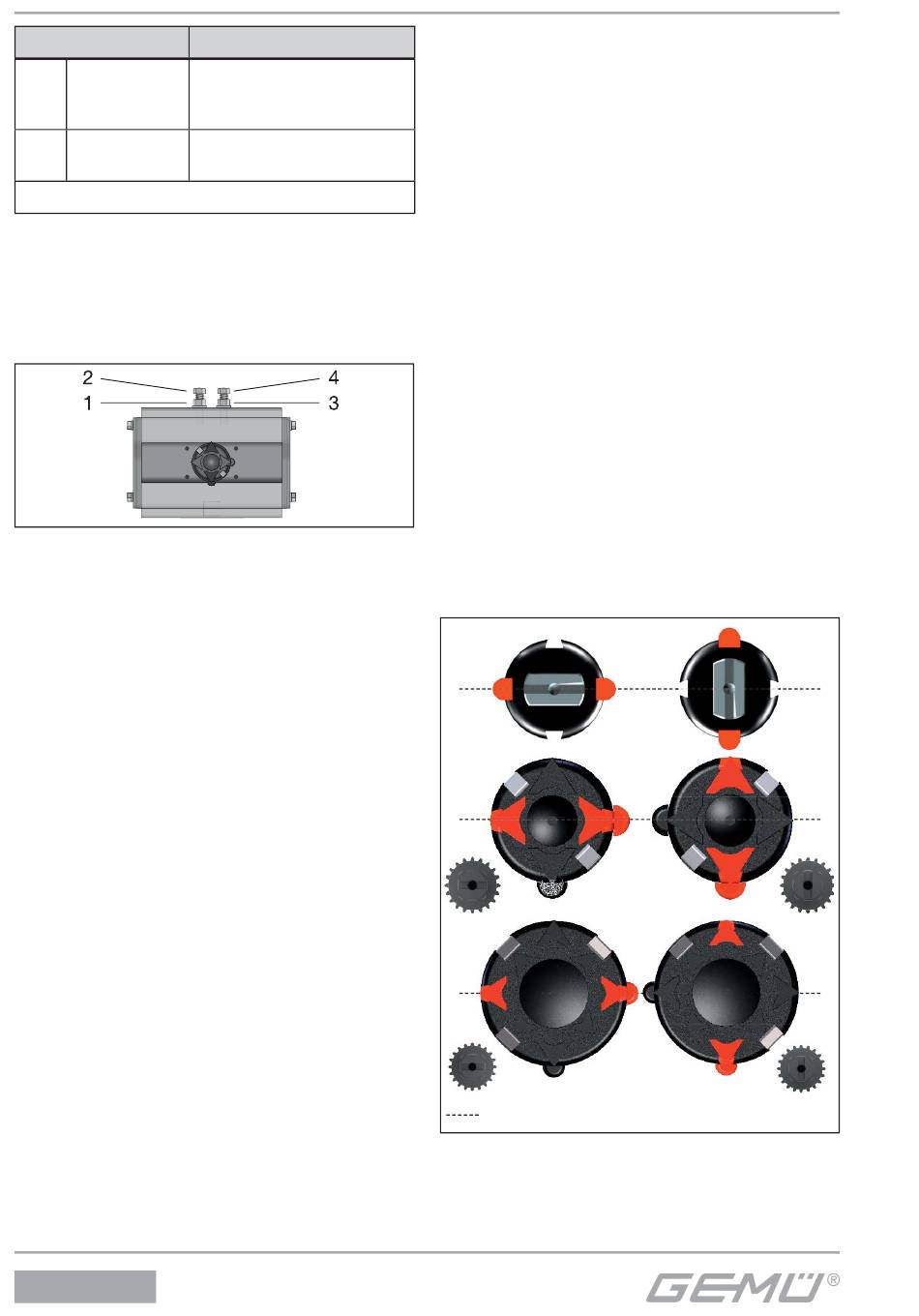

Setting and operation

12.1

Adjusting the end positions

ADA00010:
The setting range for the end positions is
±2° (88° to 92°).
Adjusting the end position 88°:
Move the actuator to the closed position.
G
Loosen the lock nut 1.
G
Adjust the end position via screw 2.
G
Tighten the lock nut 1.
G
Adjusting the end position 92°:
Move the actuator to the open position.
G
Loosen the lock nut 3.
G
Adjust the end position via screw 4.
G
Tighten the lock nut 3.
G
All other actuators:
The setting range for the end positions is
±5° (85° to 95°).
Adjusting the end position 85°:
Move the actuator to the closed position.
G
Loosen the lock nut 1.
G
Adjust the end position via screw 2.
G
Tighten the lock nut 1.
G
ADA / ASR
Connectors
2: Control medium
(open/close)
2: Control medium (open)
4: Control medium (close)
Adjusting the end position 95°:
Move the actuator to the open position.
G
Loosen the lock nut 3.
G
Adjust the end position via screw 4.
G
Tighten the lock nut 3.
G
By using a stroke limiter (optional), the end
positions can be set variably between 0° and
90° (not with ADA 00010 actuator).
Adjusting the end position 0°:
Move the actuator to the closed position.
G
Loosen the lock nut 1.
G
Adjust the end position via screw 2.
G
Tighten the lock nut 1.
G
Adjusting the end position 90°:
Move the actuator to the open position.
G
Loosen the lock nut 3.
G
Adjust the end position via screw 4.
G
Tighten the lock nut 3.
G
12.2

Optical position indicator

Top view:
Open
Piping axis
30 / 40
Closed
ADA 00010
ADA / ASR
0020U - 0850U
ADA / ASR
1200U - 4000U
