Gemü ADA 00010 Betriebsanleitung Seite 34

5
9. Attach the new multifunction indicator 5.
10. Connect the new spring washers 4 and
screw them down using new cylindrical
screws 3.
1
11. Attach the protective cap 2 and screw it
down using a suitable hexagon wrench.
12. Attach the new protective caps 1 and
press them downwards as far as they
will go.

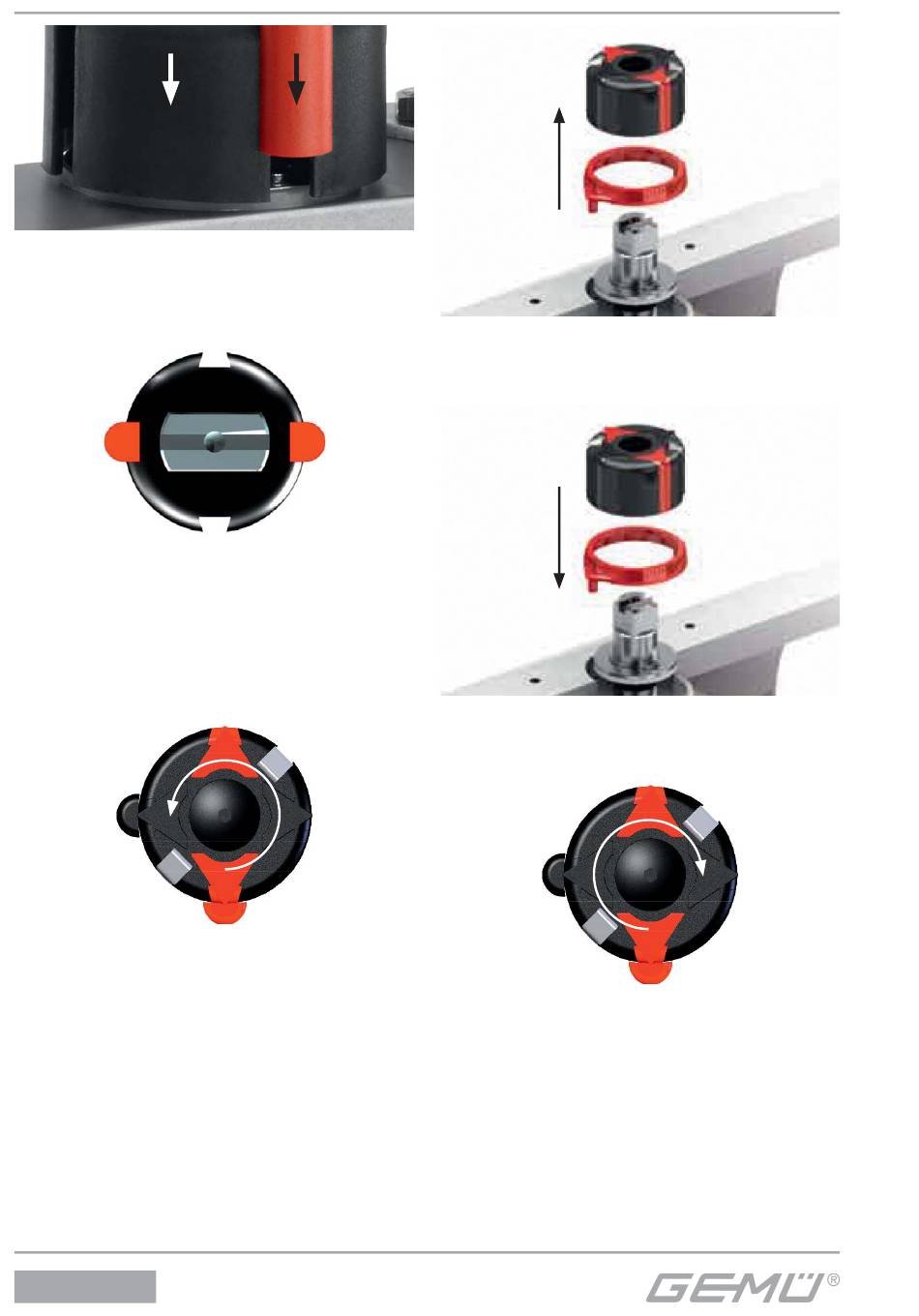

Procedure for ADA / ASR 0020U - 4000U:
1. Unscrew and remove the protective
cap 1 using a suitable hexagon wrench.
ADA / ASR
1
3
4
1
2 1
1
1
2. Pull up the multifunction indicator 2.
3. Pull up the scale ring 3.
4. Pull up the mounting sleeve 4.
5. Attach the new mounting sleeve 4.
6. Attach the new scale ring 3.
7. Attach the new multifunction indicator 2.
8. Attach the new protective cap 1 and
screw it down using a suitable hexagon
wrench.
34 / 40
2
3
4
2
3
4
1
