Mounting The Unit - Interlogix DDI602AM Montageanleitung

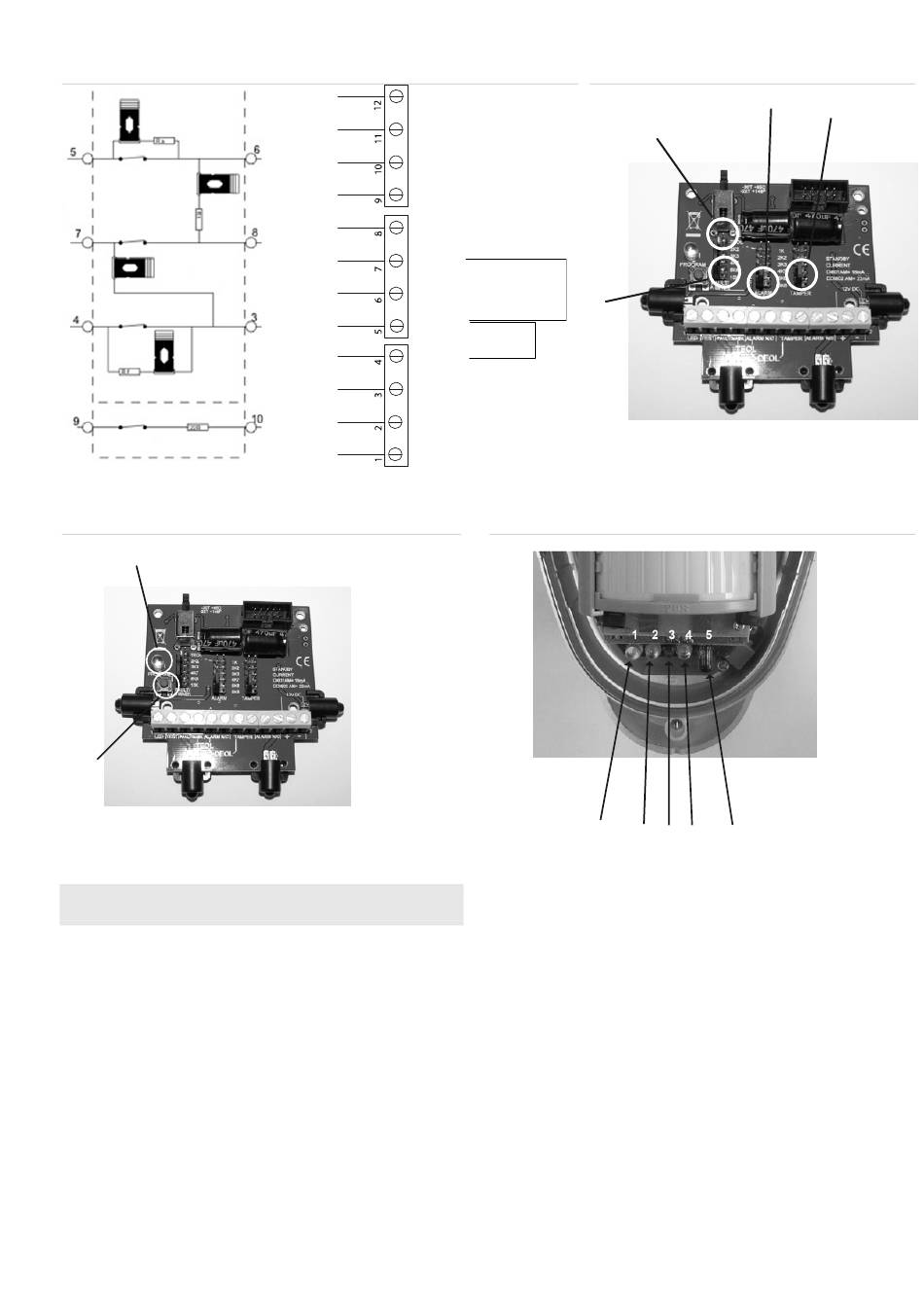

15
Ja
Ja
alarm n/c
Jt
tamper
J TEOL
fault
Jf
alarm n/o
16
(1)
(2)
EN: Installation Sheet
Package
The package contains:
• 1 x DDI602AM
• 1 x drilling template for fixing holes
• 3 x 31.75 mm wall plugs
• 3 x 31.75 mm screws
• 1 x lens mask
• 2 x additional curtain shutters
• 1 x tamper cup
• 2 x tamper caps (different lengths)
P/N 146655999-1 • REV A • ISS 30JUN14
0V
+12V
ALARM N/O
ALARM N/O
TAMPER
TAMPER
DEOL
ALARM N/C
ALARM N/C
TEOL
FAULT A/M
FAULT A/M
REMOTE TEST
REMOTE LED
17
• 1 x plastic locking tool
• 1 x installation sheet
• 1 x front cover screw cap
Introduction
The DDI602AM Outdoor Dual PIR/AM Detector is an external
motion detector and alarm trigger that uses two independent
passive infrared detectors plus a microwave sensor module.
Programmable options include a variable pulse count and a
choice of three detection ranges: 10 m, 20 m and 30 m.

Mounting the unit

When positioning the detector please consider that the PIR
sensor is more sensitive to a movement across the beams,
and less sensitive to a movement directly towards or away
15a
(1)
(4)
(1)
(2) (3) (4)
(5)
(2)
(3)
3 / 47
