Mounting The Unit - Interlogix DI601AM Montageanleitung

15
Ja
Ja

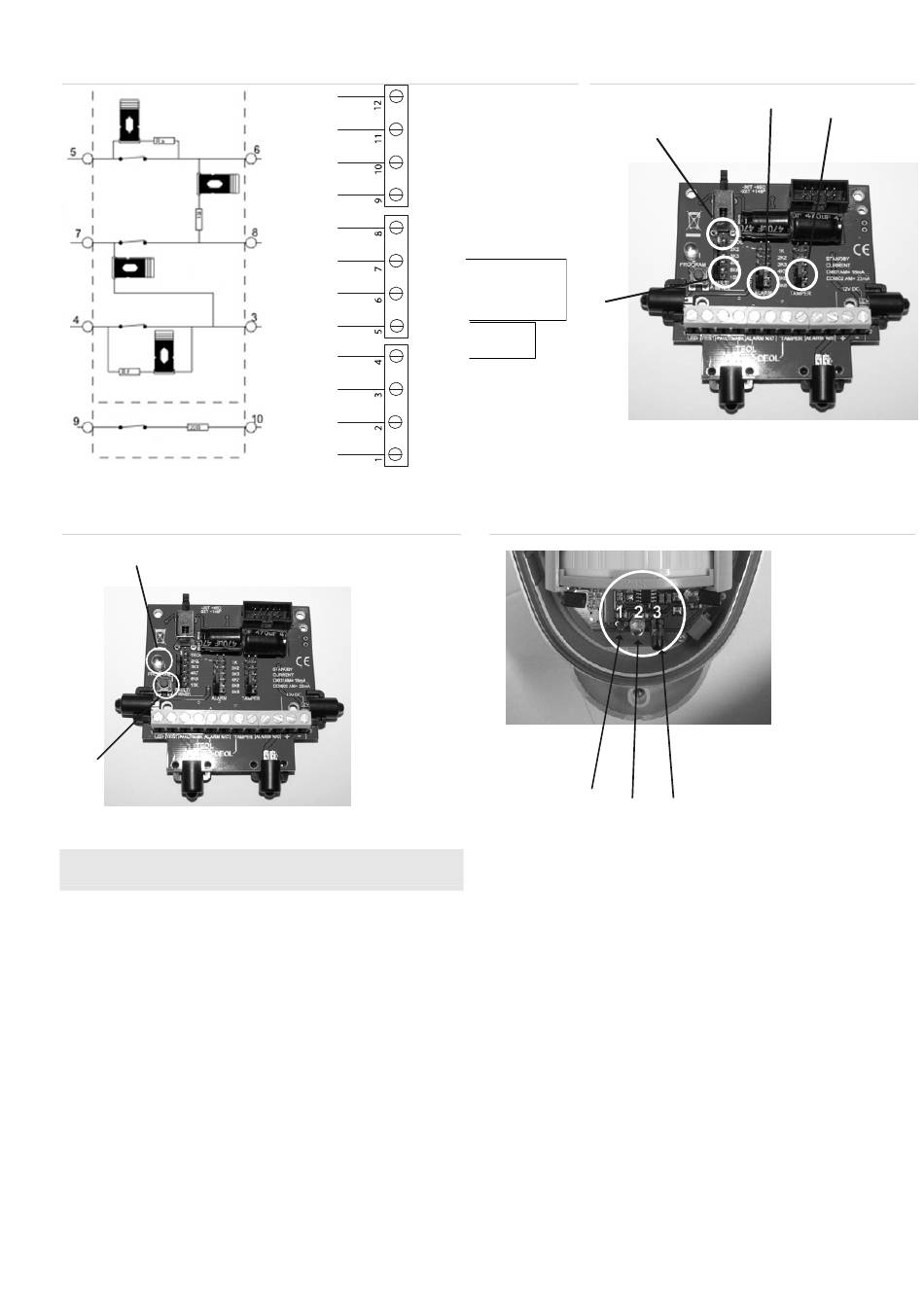

alarm n/c
Jt
tamper
J TEOL
fault
Jf
alarm n/o
16
(1)
(2)
EN: Installation Sheet
Package
The package contains:
• 1 x DI601AM
• 1 x drilling template for fixing holes
• 3 x 31.75 mm wall plugs
• 3 x 31.75 mm screws
• 1 x lens mask
• 2 x additional curtain shutters
• 1 x tamper cup
• 2 x tamper caps (different lengths)
• 1 x plastic locking tool
P/N 146656999-1 • REV A • ISS 30JUN14
0V
+12V
ALARM N/O
ALARM N/O
TAMPER
TAMPER
DEOL
ALARM N/C
ALARM N/C
TEOL
FAULT A/M
FAULT A/M
REMOTE TEST
REMOTE LED
17
(1)
• 1 x installation sheet
• 1 x front cover screw cap
Introduction
The DI601AM Outdoor Dual PIR/AM Detector is an external
motion detector and alarm trigger that uses two independent
passive infrared detectors
Both sensors must trigger to cause the detector to signal an
alarm. The DI601AM uses quad PIR technology to deliver
precise, reliable presence detection..
Programmable options include a variable pulse count and a
choice of three detection ranges: 10 m, 20 m and 30 m.

Mounting the unit

When positioning the detector please consider that the PIR
sensor is more sensitive to a movement across the beams,
and less sensitive to a movement directly towards or away
15a
(1)
(4)
(2) (3)
(2)
(3)
3 / 45
