The station is ready to work.
In order to make a solder joint you only need to
press over the thread dragging button in the
handle.
The programm of the station will allow you to modify
all the working parameters. You can display the
parameters with the SELECT key and modify
them with + and - keys.

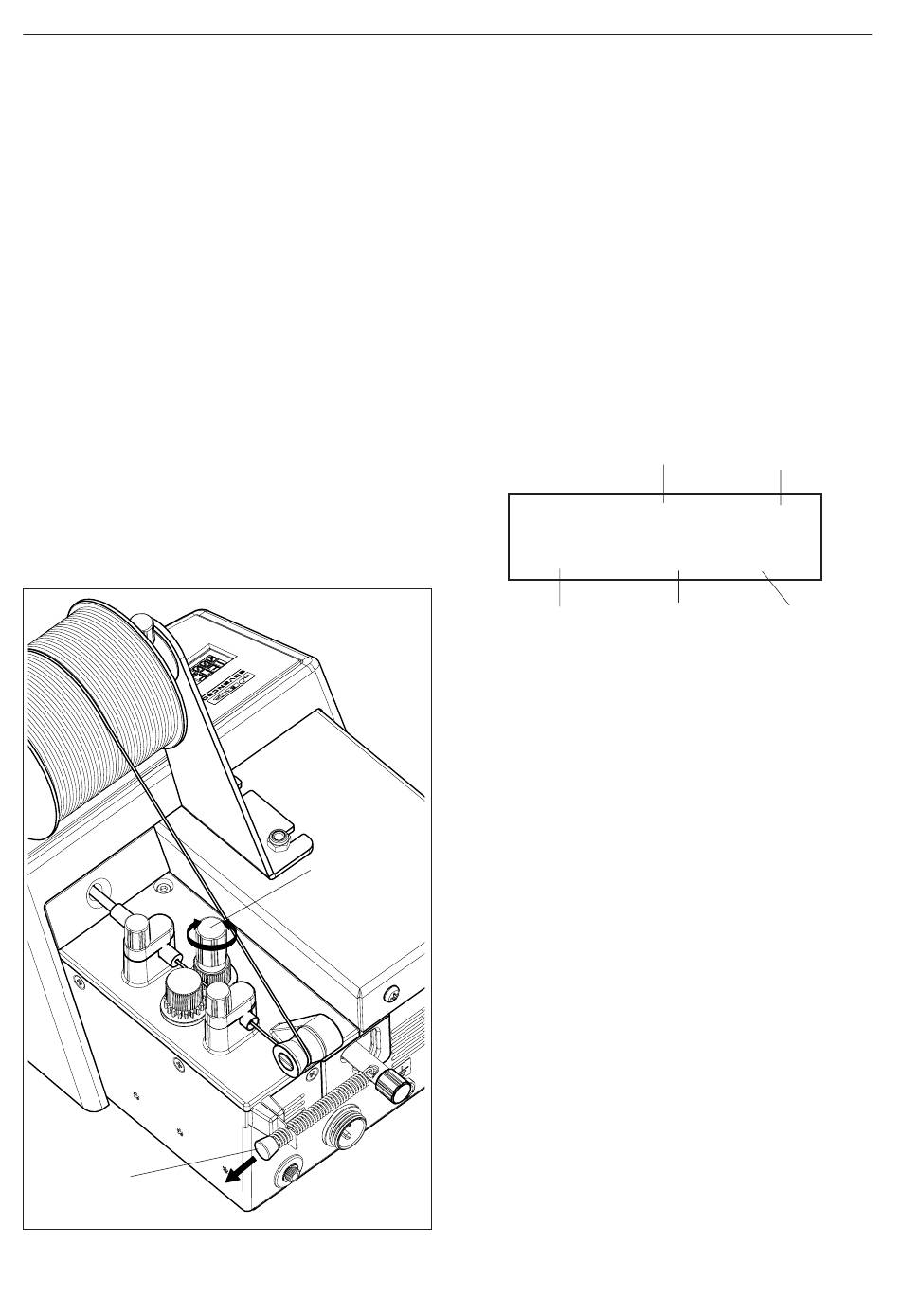

CLUTCH REGULATION
The dragging mechanism of the station has one
A
clutch .
Its function is to allow the forwarding of the solder
threat when the station is working properly but
also avoid stall and or clugging situations when
any cause arises.
The dragging strengh must be adjusted with the
A
command . If we rotate it the dragging strengh
is increased.
B
B
With command the dragging system is tauten.
The more gap, the more strenght will be obtained.
PROGRAMMING
The system allow us to modify and adjust the
following working parameters directly:
- Temperature between 90 and 400ºC (up to
- Working mode.
- Length thread.
- Speed advance thread.
In order to modify the initial installation parameters
and have access to the counters, you must hold
the SELECT key for 3 seconds.
You will find the operation diagrams are on the
following pages.
STATION DISPLAY
Working method
There are 4 tool status:
USE (Use). The tool is ready to work.
STD (Stand). The tool is placed in the stand but
still not in the sleep mode.
SLP (Sleep). The tool is in the sleep mode in the
stand, its temperature has dropped till the sleep
temperature.
OL. The power circuit is overheated. The power
is temporarily not supplied.
A
7
450ºC with SETUP).
Tool temperature
TEMP. 230ºC
disc. L 10 S 11
Length thread
ENGLISH
Tool status
USE
Speed
