OPERATION

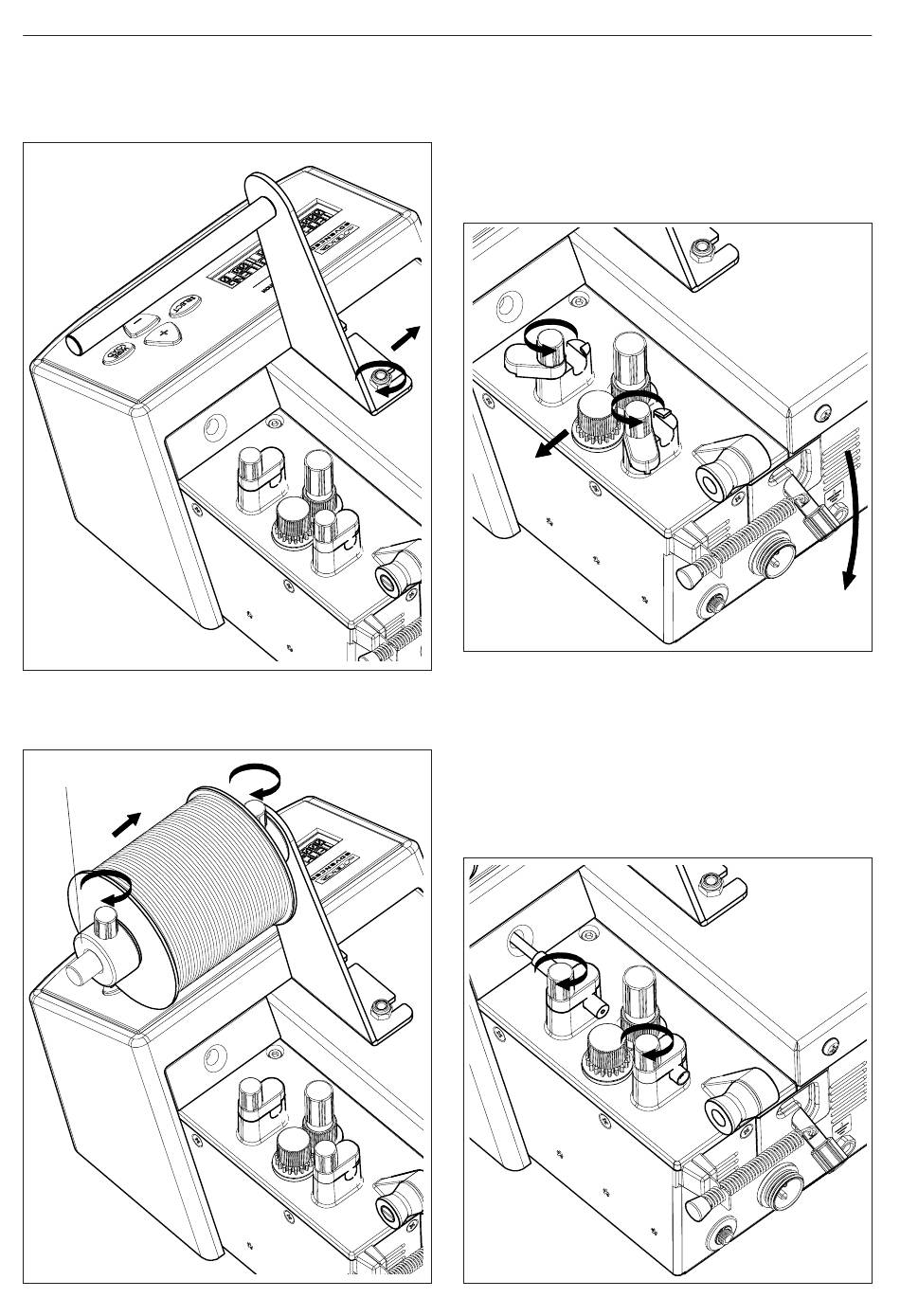

Place the solder reel in the stand and set the 2
screws.
Place the toolholder metal base and the solder reel
(maximum weight 1kg). Press the 2 screws.
Toolholder metalbase
For a proper installation, please proceed as follow:
1
. Place the control in the position showed in the
graphic in order to open the dragging mechanism.
2
. Loosen the solder reel guide screws of the
control unit.
2
1
3
. Place the tubes and guides set in the control
unit. Tighten the screws.
The guide set for the solder thread supplied with
the control unit is specially designed for solder
reels diammeter of 0,9 to 1 mm.
If you wish to use other solder reel sizes, you can
order other 3 guide sets as accessory (see
previous page).
3
5
ENGLISH
2
3
1
