ENGLISH
4

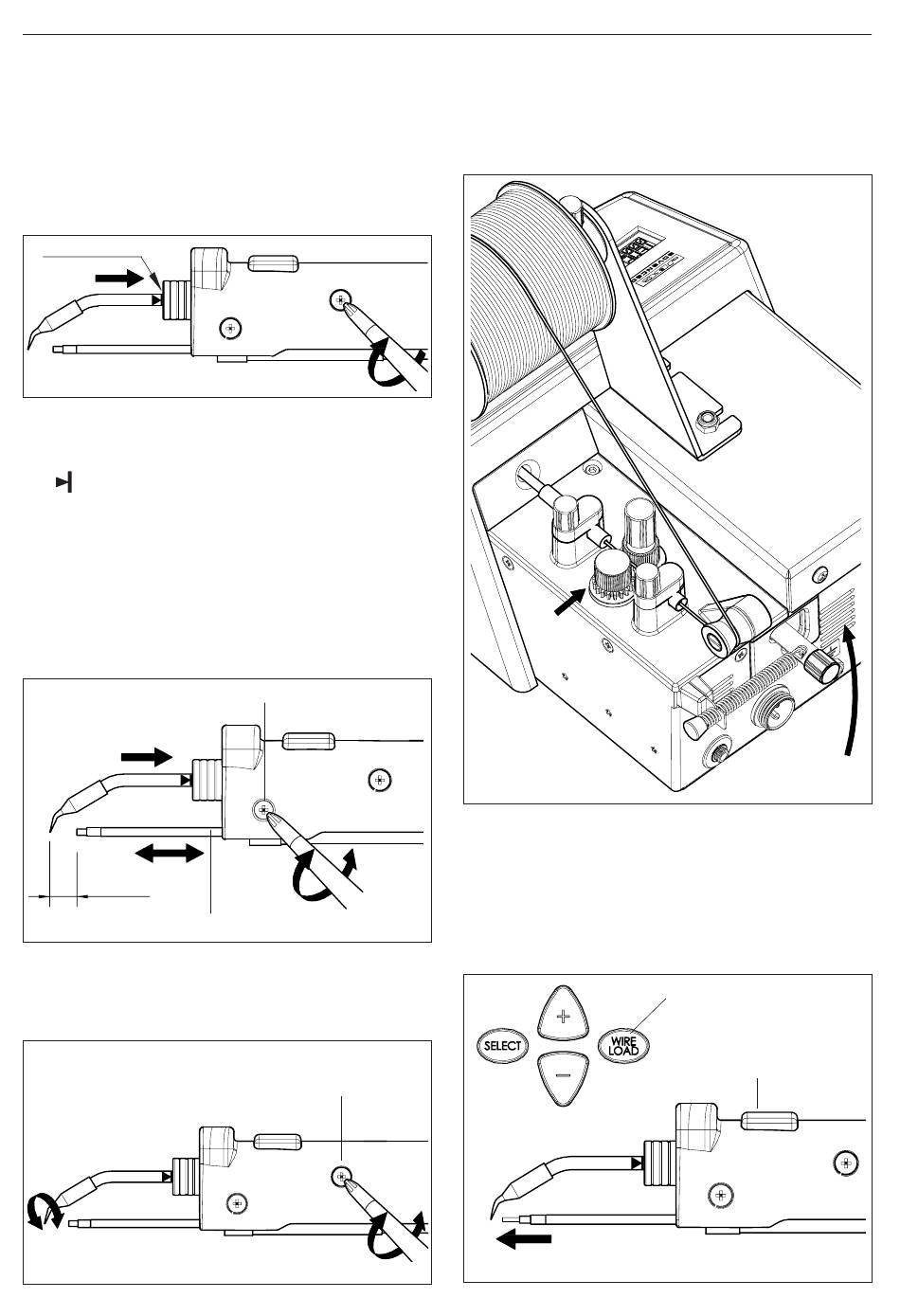

. Place the solder feed handpiece.
¡Warning!
As a safety measure and in order to avoid burns,
when the cartridge is manipulated you must switch
off the station or disconnect the solder feed
handpiece. Take into account that it only takes a
few seconds to reach the working temperature.
Alignment
4
Important.
- It is essential to insert the cartridge till the
end for a good connection. Take the mark
as reference.
5
. Place the guide tube for the solder threat in the
solder feed handpiece. You must leave a distance
between 8-10mm from the tip of the cartridge and
the end of the guide tube end. Tighten the screw
of the guide tube.
8 - 10 mm
Guide tube
6
. Point the tip of the cartridge to the solder guide
tube exit. Tighten the cartridge screws.
WARNING: It is esential
to tighten this screw for
the tool to function.
6
Guide tube screw
5
C a r t r i d g e
electric connection
screw
7
. Take the solder thread from the solder reel until
the guide tube start.
Place the control in the indicated position in order
to close the dragging mechanism.
7
Connect the handpiece to the station and switch it
on. Press the WIRE LOAD key (Fast dragging
thread) till the solder leaves by the end of the guide
tube. Display will show the message "LOADING
SOLDER WIRE".
a n d
6
7
Fast dragging thread
Thread dragging
button
