ENGLISH
AL 2500 Solder feed station
- AL 2500 230V
- AL 2500 120V
- AL 2500 100V
This station allows you to keep the hand that would
normally hold the solder wire free. If you plan to
use accessories such as pedal switch and stand
arm, then both hands will remain free. This system
is also designed to work as an automatic solder
feed station.

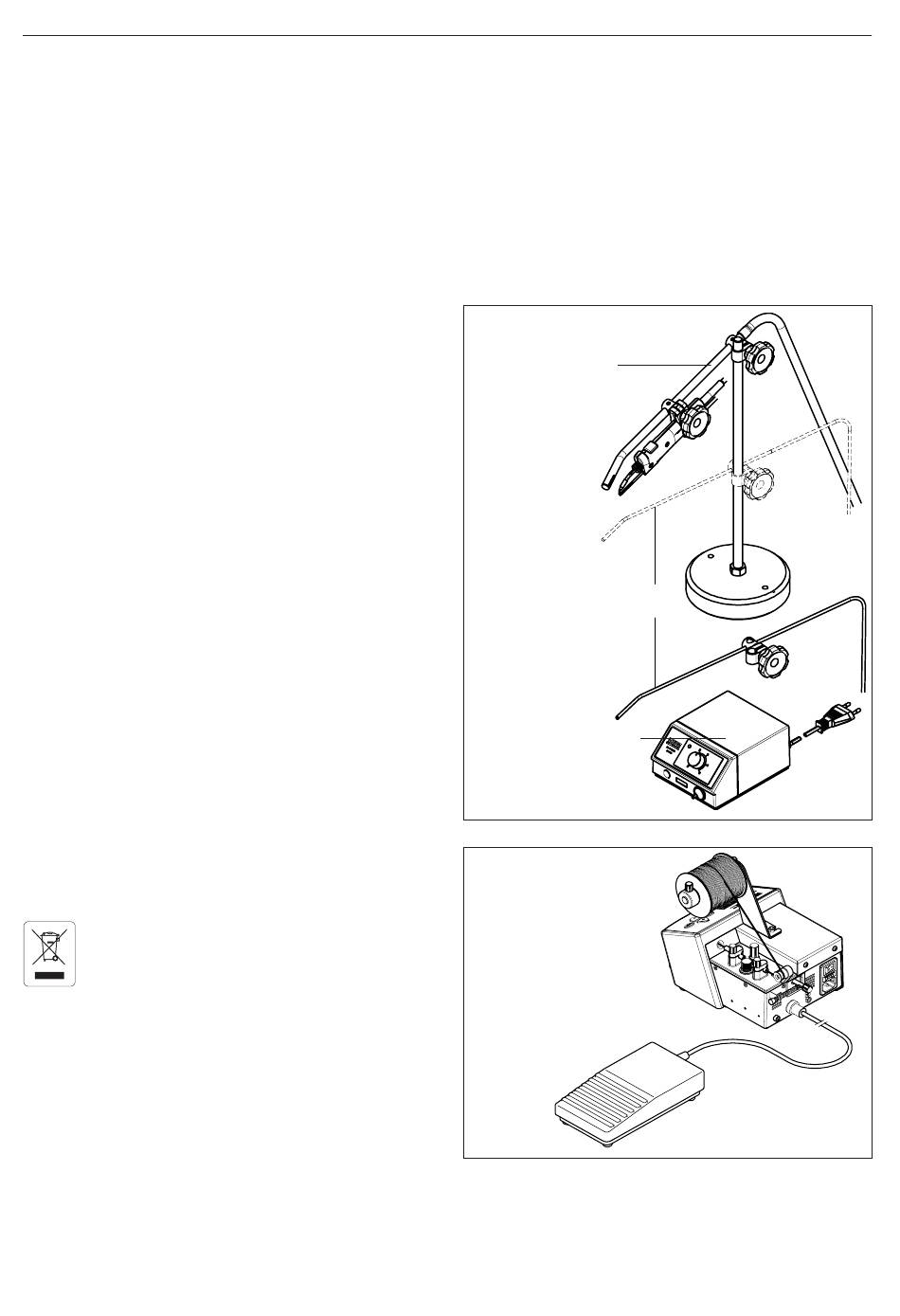

The system includes:
- Control unit.
- Solder feed handpiece
with the 2500-403 cartridge
- AL 8250 solder feed stand
- Guide set
for solder thread 0,9 - 1
- Connection cable to mains.
- Transport packaging.
Technical specifications
- AL 2500 230V control unit
Input: 230V 50Hz. Output: 24V
- AL 2500 120V control unit
Input: 120V 60Hz. Output: 24V
- Power: 60W.
- ESD protected housing.
Typical surface resistance: 10
square.
- Complies with CE standards on electrical
safety, electromagnetic compatibility and
antistatic protection.
- Equipotential connector and the tool tip are
connected to station mains ground supply for
ESD protection.
- RoHS compliant.
- Total weight of unit: 6,1 Kgs (13,5lbs).
This product should not be thrown in the
garbadge.

RECOMMENDATIONS FOR USE

For soldering
- Preferably select a temperature below
350°C (662ºF). Excess temperature reduce
tip life.
- The tip must be well tinned for good heat
conduction.
Safety measures
- Place the tool back on its stand in order to
let it cool down before you store it.
Ref. 2500200
Ref. 2500100
Ref. 2500110
Ref. 2500000
Ref. 2500403
Ref. 0788250
ø
Ref. 0002401
Ref. 2500200
Ref. 2500100
5 11
-10 Ohms/
Accessories
There are other 3 guide sets, apart from the one
supplied with the equipment, for the following solder
thread diameters:
ø
- 0,4 - 0,5
ø
- 0,6 - 0,8
ø
- 1,1 - 1,5
Each set is supplied with 2 thread guides, the
leading tube and the exit guide in the iron.
Hands free soldering
stand AL 2500
Ref. 0002864
Accessory blower
AL 2500
Ref. 0003293
AB 2550 Air blower
Ref. 2550200 (230V)
Ref. 2550100 (120V)
Pedal
Ref. 0964551
The pedal can be plugged to the connector
placed at the rear of the station. Pedal is an
option.
Foot switch has the same function as button on
the handle used to feed solder.
2
Ref. 0002399
Ref. 0002402
Ref. 0002843
