Changing the handpiece's cartridge
¡Warning!
As a safety measure and in order to avoid burns,
when the cartridge is manipulated you must switch
off the station or disconnect the solder feed
handpiece. Take into account that it only takes a
few seconds to reach the working temperature.

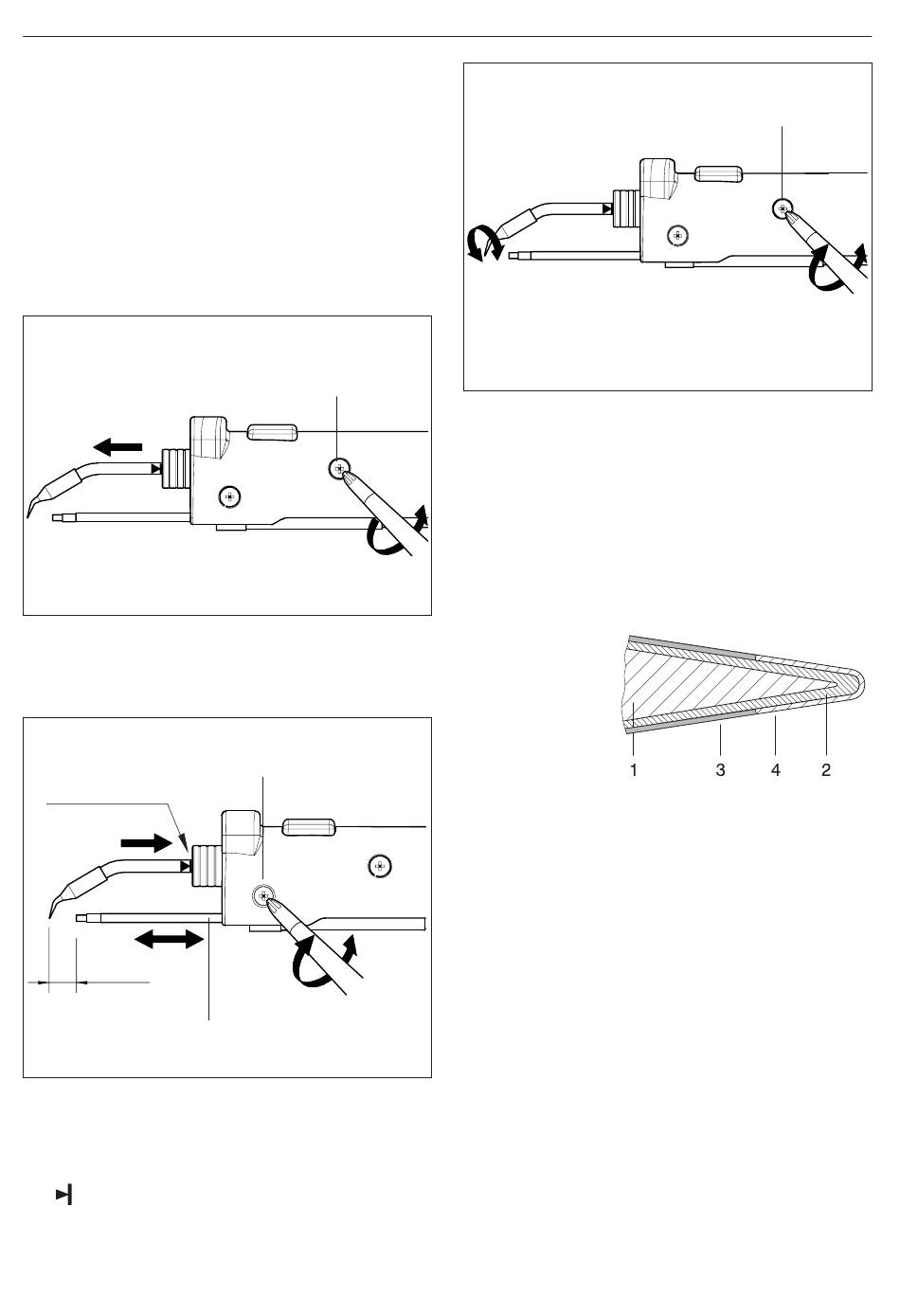

With the Advanced system, the cartridge can be
changed quickly. Here is what to do to change
the cartridge:
1
1 Loose the fixed cartridge screw you will find
in the handle. Release the cartridge.
2
Alignment
8 - 10 mm
Guide tube
2 Place the cartridge in the solder feed handle.
Important.
- It is essential to insert the cartridge till the
end for a good connection. Take the mark
as reference.
You must leave a distance between 8-10mm from
the tip of the cartridge and the end of the guide
tube end. Tighten the screw of the guide tube.
Cartridge screw
Guide tube screw
3
WARNING: It is esential to tighten this screw for the
tool to function.
3 Direct the tip of the cartridge over the solder
guide tube exit. Tighten the cartridge screw.
Advanced series cartridge
The cartridge is made of the heating element
which has the heating system, a temperature
sensor and a long life tip.
The long-life tip is basically made of:
1 Copper
2 Iron
3 Chromium
4 Tin plate
Tip care recommendations
Except for the copper core, the rest of metals
are placed galvanically on relatively thin layers,
therefore it is necessary to avoid anything which
could cause their destruction.
To clean the tips, use the sponge included with
the stand and check that it is slightly moisted.
Only deionised water (car battery water) Only deionised water (car battery water) Only deionised water (car battery water) Only deionised water (car battery water) Only deionised water (car battery water)
should be used in order to wet the sponge should be used in order to wet the sponge
should be used in order to wet the sponge. If should be used in order to wet the sponge should be used in order to wet the sponge
normal water was to be used, it is very likely
that the tip will become dirty due to the salts
dissolved within the water.
To re-tin the soldering tips, we recommend
using the TT 9900 tip tinner/cleaner ref. 9900000.
JBC reserves the right to make technical changes without prior
notification.
13
ENGLISH
C a r t r i d g e a n d
electric connection
screw
