Risers
ASSEMBLE THE TRAPEZE CANOPY
1. Using the provided 3/16" allen wrench, loosen the set screws
in each of the eight flanges mounted to the outside of the
Reformer frame. Insert the provided cotter pins into the 1/8"
holes near the bottom ends of each vertical tube. Pick up
the vertical tube assemblies and place the tube ends into
the flanges. The cotter pins will automatically set the tubing
height. Be careful that the cotter pin doesn't scratch the
wooden frame. The tubes with the push-through bar go at the
head end of the machine (opposite the standing platform).
The eyebolts on the tubes should face the other end.
2. Now set the canopy top onto the four vertical tubes. You will
need help with this. The end of the canopy frame with the
black safety strap goes over the push-through bar. Be certain
all four corner fittings fit securely over the tubes.
3. Using the allen wrench, tighten the set screws in the corner
fittings and in the flanges around the Reformer frame.
4. Supporting the Push-Through Bar (PTB), remove the T-pins
one at a time and re-insert them so that they enter from the
outside of the tubes. If either pin binds, some adjustment of
the vertical tubes is needed. Simply loosen the set screws and
rotate the tubes until both pins slide in and out freely. Be sure
to re-tighten all set screws. Remove the cotter pins from the
tubes and save for future use.
6
Shoulder
Rests h
Footbar b

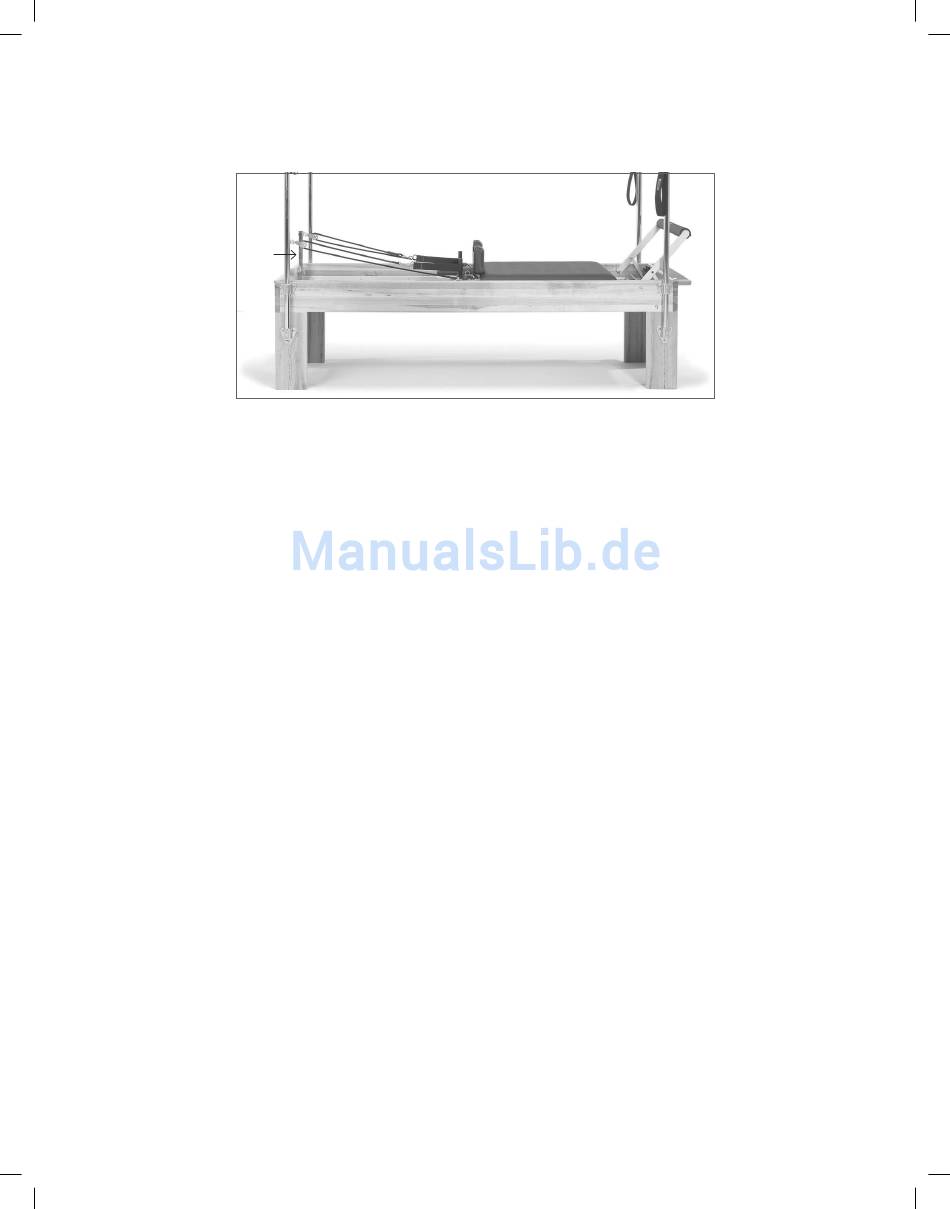

Reformer Mode
ASSEMBLE THE REFORMER
5. Swing the footbar up and place the support into position.
6. Place the carriage into the frame and attach the springs
to the spring bracket on the underside of the carriage. The
springs should have the open, hooked end pointing down
through each eye bolt on the bracket and should lay across
the padded bar at the foot end of the carriage. Attach one or
more of the springs to the spring bar to secure the carriage in
position.
7. Install the shoulder rests onto the carriage by locking them
into the keyholes on either side of the headrest. They can be
set wider or narrower by reversing their placement. Always lock
them in place with the pin.
8. Install the adjustable risers with the pulleys facing the
carriage. Again, always lock them in the desired position with
their pins. Unroll the ropes and separate them. Clip a cotton
loop onto the end of each rope and hang the loops on the
shoulder rests. Thread the other end of each rope through a
pulley and back into the cam cleats on the carriage to adjust
the length. Be sure to go through the chrome eyestraps on
both sides of the cam cleats. Always push the rope firmly
down into the cleats to insure a good grip.
