Wind speed/wind direction indicator
WSD822

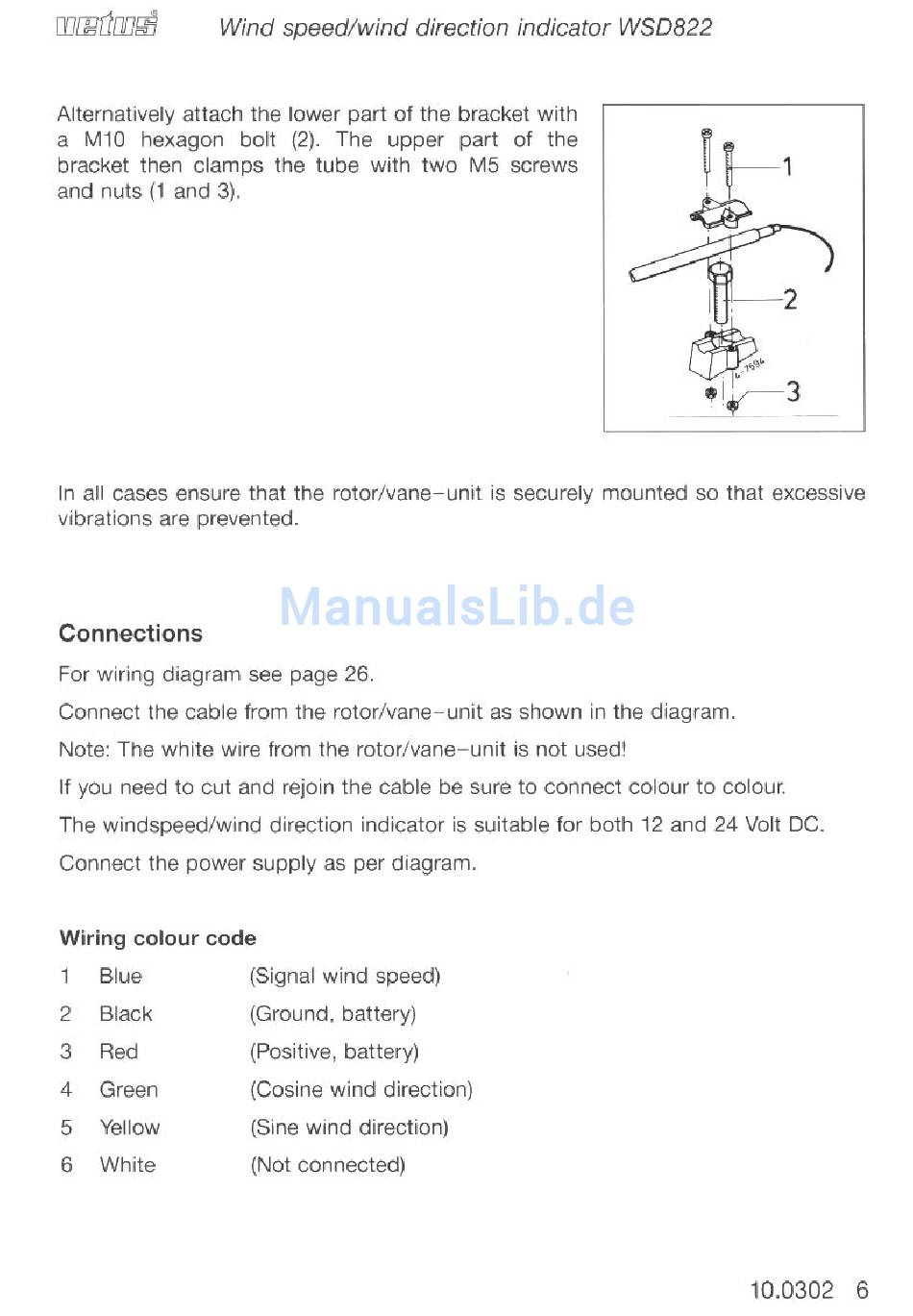

Alternatively attach the lower part of the bracket with
a M10 hexagon bolt (2). The upper part of the
bracket then clamps the tube with two M5 screws
and nuts (1 and 3).
In all cases ensure that the rotor/vane-unit is securely mounted so that excessive
vibrations are prevented.
Connections
For wiring diagram see page 26.
Connect the cable from the rotor/vane-unit as shown in the diagram.
Note: The white wire from the rotor/vane-unit is not used!
If you need to cut and rejoin the cable be sure to connect colour to colour.
The windspeed/wind direction indicator is suitable for both 12 and 24 Volt DC.
Connect the power supply as per diagram.
Wiring colour code
1 Blue (Signal wind speed)
2 Black (Ground, battery)
3 Red (Positive, battery)
4 Green (Cosine wind direction)
5 Yellow (Sine wind direction)
6 White (Not connected)
