Measuring distances

1. Switch the appliance on by pressing the button
ON/OFF 0.
2. If necessary, press the MODE 9 button several times
until the indicator
appears in the display.
3. To switch between metric (Meter M) and Anglo-American
(Feet'/Inch'') measurement units, press the button
FT/M 4.
4. Hold the appliance upright towards the wall to which
you wish to measure the distance. The ultrasound sender/
receiver 2 must be at a right-angle to the wall. For this,
use the spirit level 8:
The bubble in the glass 8 must stand between the
marking lines (see Fig.1).
5. Press the button READ q briefly. A laser point is projected
and an acoustic signal sounds. Hold the appliance in
this position until the measured distance appears in the
display w.
Note:
Measurements start at the measurement point 6 ! Should the
measurement lie outside the measurement range, "Error" or
an illogical number appear in the display. The measurement
range lies between 0,6 m (ca.2´) and 16 m (ca.53´).

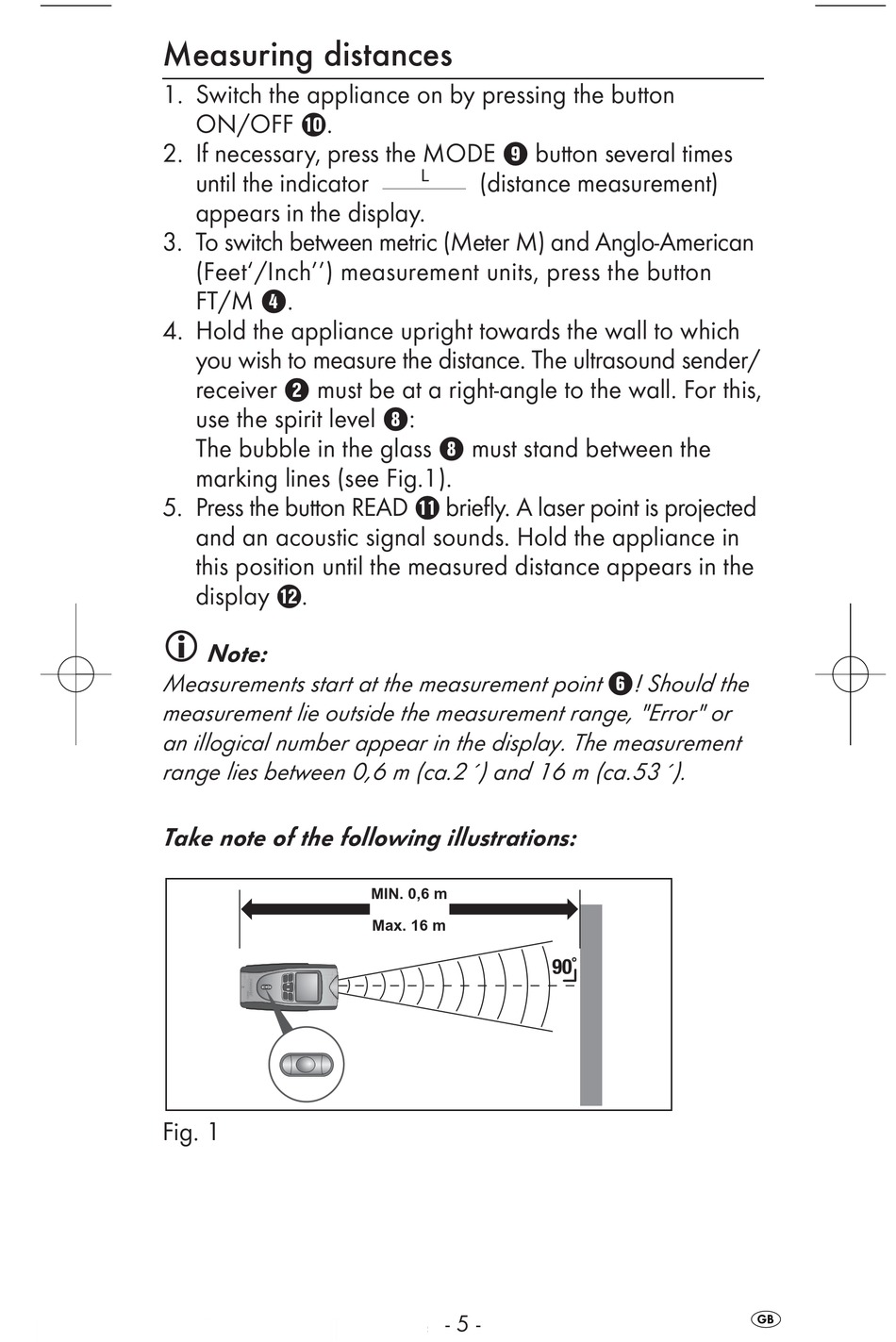

Take note of the following illustrations:
Fig. 1
L
(distance measurement)
MIN. 0,6 m
Max. 16 m
