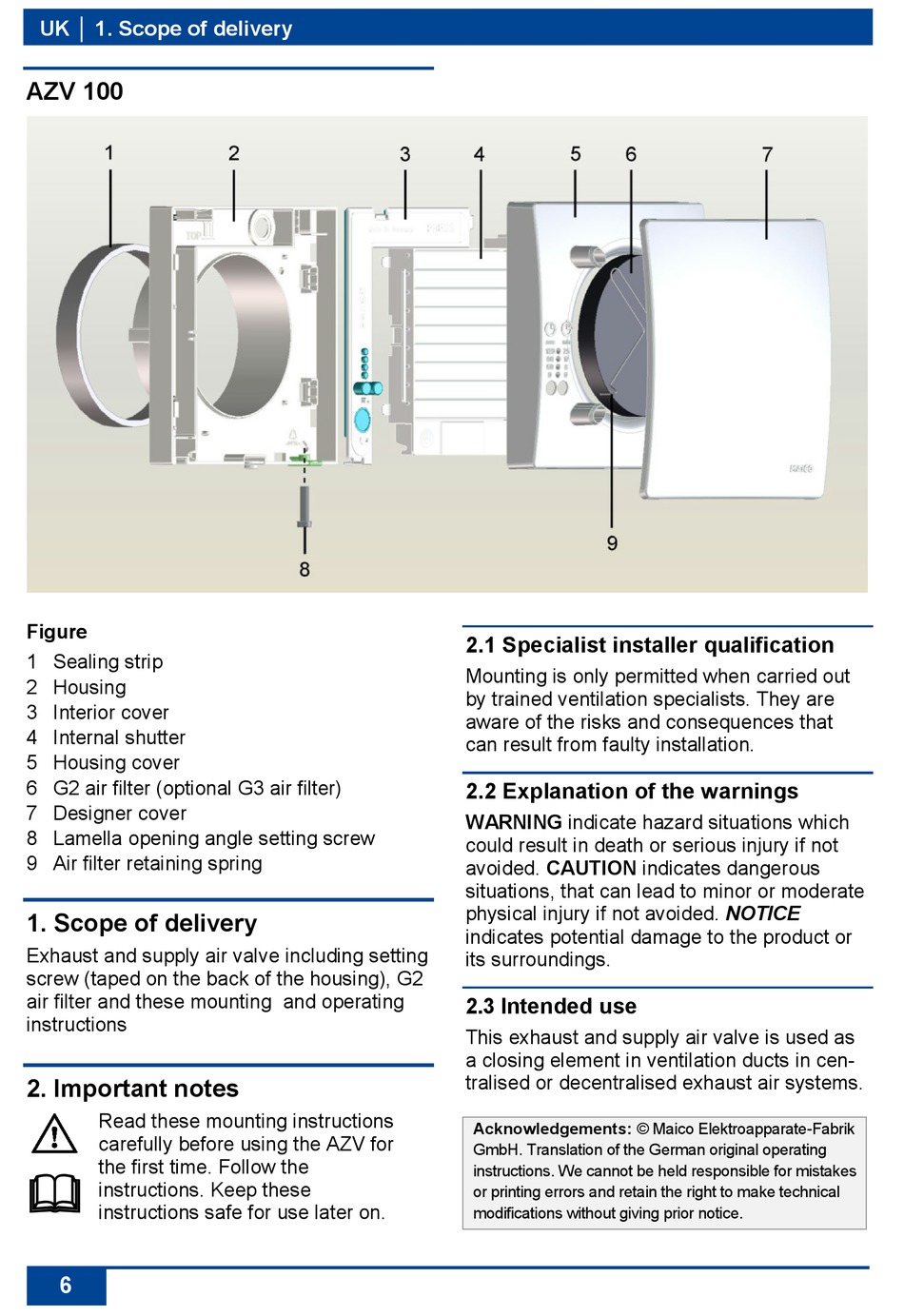

UK │ 1. Scope of delivery
AZV 100
Figure
1 Sealing strip
2 Housing
3 Interior cover
4 Internal shutter
5 Housing cover
6 G2 air filter (optional G3 air filter)
7 Designer cover
8 Lamella opening angle setting screw
9 Air filter retaining spring
1. Scope of delivery
Exhaust and supply air valve including setting
screw (taped on the back of the housing), G2
air filter and these mounting and operating
instructions
2. Important notes
Read these mounting instructions
carefully before using the AZV for
the first time. Follow the
instructions. Keep these
instructions safe for use later on.
6
2.1 Specialist installer qualification
Mounting is only permitted when carried out
by trained ventilation specialists. They are
aware of the risks and consequences that
can result from faulty installation.
2.2 Explanation of the warnings
WARNING indicate hazard situations which
could result in death or serious injury if not
avoided. CAUTION indicates dangerous
situations, that can lead to minor or moderate
physical injury if not avoided. NOTICE
indicates potential damage to the product or
its surroundings.
2.3 Intended use
This exhaust and supply air valve is used as
a closing element in ventilation ducts in cen-
tralised or decentralised exhaust air systems.
Acknowledgements: © Maico Elektroapparate-Fabrik
GmbH. Translation of the German original operating
instructions. We cannot be held responsible for mistakes
or printing errors and retain the right to make technical
modifications without giving prior notice
.
