Mounting A Concave Diaphragm - Gemü DN 4 - 25 Montageanleitung

New version
Pict. 1
D
Pict. 2
C
45°

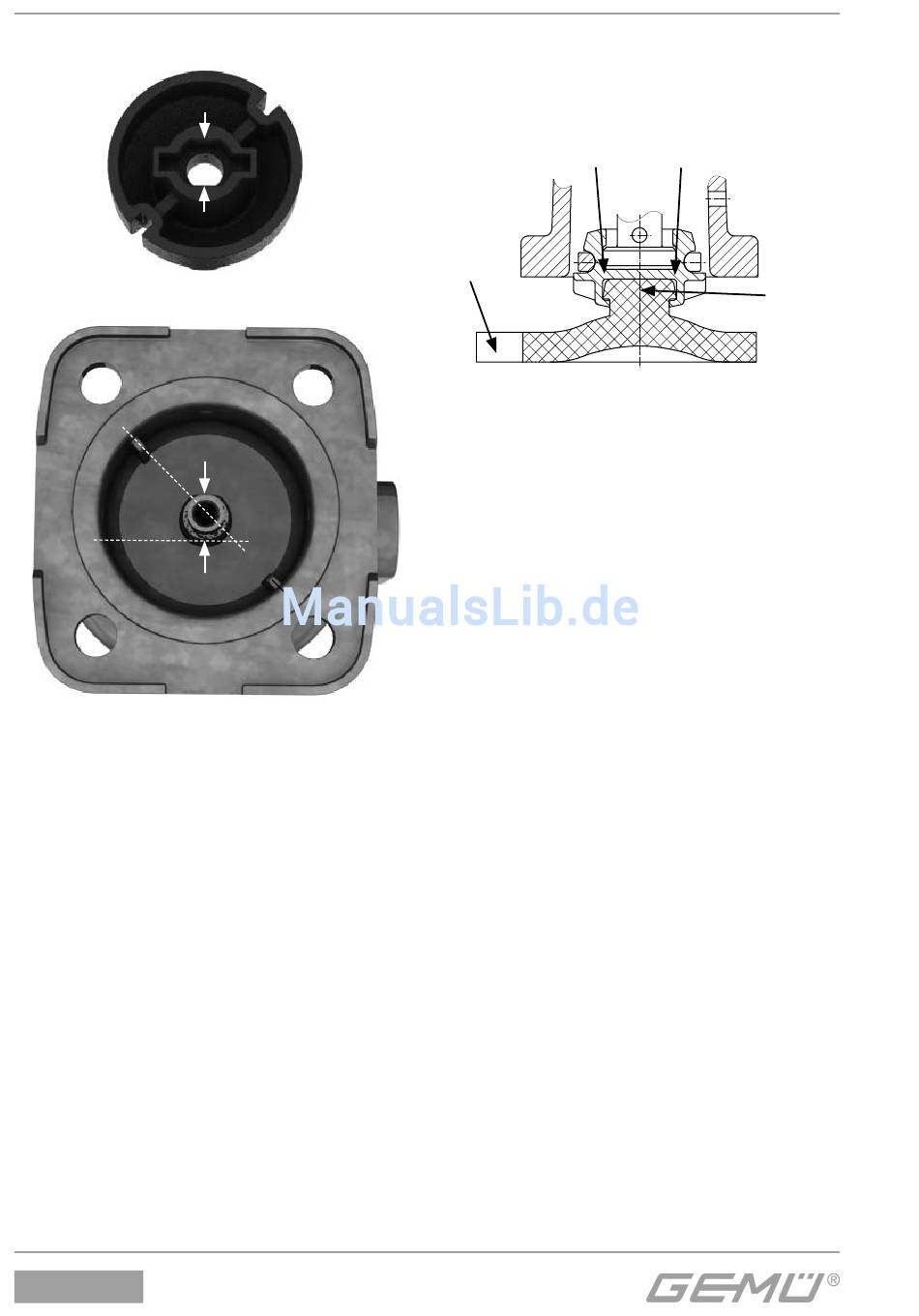

A double flat A (arrows picture 2) at the
end of the actuator spindle serves as an
anti-twist system of the actuator piston.
When mounting the compressor, the double
flat A must be in correct alignment with the
recess B of the compressor back (arrows
picture 1).
If the actuator piston is not in the correct
position, it must be turned to the correct
position. The position of the double flat A is
offset by 45° to the position of C.
Place the compressor loosely on the
actuator piston, fit the recesses D into the
guides C and A into B. The compressor
must be able to be moved freely between
the guides!
660
D
B
B
A
A
C
12.3.2 Mounting a
concave diaphragm
Diaphragm size 8
Push-fit diaphragm:
Recess of compressor
Tab
1. Move actuator A to the closed position.
2. Place the diaphragm 2 with the fastening
spigot in an inclined position at the
recess of the compressor.
3. Turn the diaphragm as manual force
is applied to push the spigot into the
compressor.
4. Align diaphragm tab (identifying
manufacturer and material) in parallel to
compressor weir.
38 / 48
