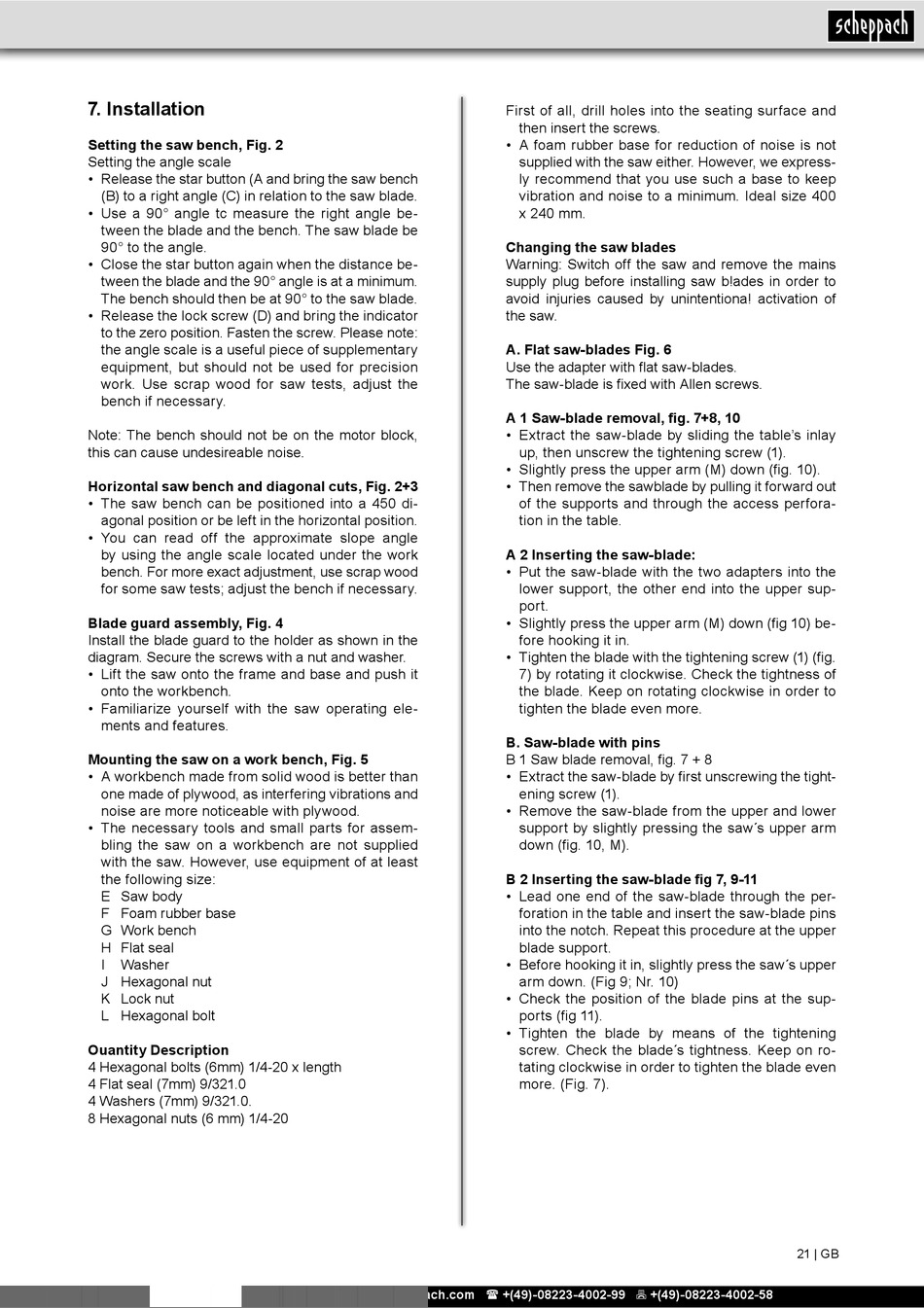

7. Installation

Setting the saw bench, Fig. 2
Setting the angle scale
• Release the star button (A and bring the saw bench
(B) to a right angle (C) in relation to the saw blade.
• Use a 90° angle tc measure the right angle be-
tween the blade and the bench. The saw blade be
90° to the angle.
• Close the star button again when the distance be-
tween the blade and the 90° angle is at a minimum.
The bench should then be at 90° to the saw blade.
• Release the lock screw (D) and bring the indicator
to the zero position. Fasten the screw. Please note:
the angle scale is a useful piece of supplementary
equip ment, but should not be used for precision
work. Use scrap wood for saw tests, adjust the
bench if neces sary.
Note: The bench should not be on the motor block,
this can cause undesireable noise.
Horizontal saw bench and diagonal cuts, Fig. 2+3
• The saw bench can be positioned into a 450 di-
agonal position or be left in the horizontal position.
• You can read off the approximate slope angle
by using the angle scale located under the work
bench. For more exact adjustment, use scrap wood
for some saw tests; adjust the bench if necessary.
Blade guard assembly, Fig. 4
Install the blade guard to the holder as shown in the
diagram. Secure the screws with a nut and washer.
• Lift the saw onto the frame and base and push it
onto the workbench.
• Familiarize yourself with the saw operating ele-
ments and features.
Mounting the saw on a work bench, Fig. 5
• A workbench made from solid wood is better than
one made of plywood, as interfering vibrations and
noise are more noticeable with plywood.
• The necessary tools and small parts for assem-
bling the saw on a workbench are not supplied
with the saw. However, use equipment of at least
the following size:
E Saw body
F Foam rubber base
G Work bench
H Flat seal
I Washer
J Hexagonal nut
K Lock nut
L Hexagonal bolt
Ouantity Description
4 Hexagonal bolts (6mm) 1/4-20 x length
4 Flat seal (7mm) 9/321.0
4 Washers (7mm) 9/321.0.
8 Hexagonal nuts (6 mm) 1/4-20
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
First of all, drill holes into the seating surface and
then insert the screws.
• A foam rubber base for reduction of noise is not
supplied with the saw either. However, we express-
ly recommend that you use such a base to keep
vibration and noise to a minimum. Ideal size 400
x 240 mm.
Changing the saw blades
Warning: Switch off the saw and remove the mains
supply plug before installing saw b!ades in order to
avoid injuries caused by unintentiona! activation of
the saw.
A. Flat saw-blades Fig. 6
Use the adapter with flat saw-blades.
The saw-blade is fixed with Allen screws.
A 1 Saw-blade removal, fig. 7+8, 10
• Extract the saw-blade by sliding the table's inlay
up, then unscrew the tightening screw (1).
• Slightly press the upper arm (M) down (fig. 10).
• Then remove the sawblade by pulling it forward out
of the supports and through the access perfora-
tion in the table.
A 2 Inserting the saw-blade:
• Put the saw-blade with the two adapters into the
lower support, the other end into the upper sup-
port.
• Slightly press the upper arm (M) down (fig 10) be-
fore hooking it in.
• Tighten the blade with the tightening screw (1) (fig.
7) by rotating it clockwise. Check the tightness of
the blade. Keep on rotating clockwise in order to
tighten the blade even more.
B. Saw-blade with pins
B 1 Saw blade removal, fig. 7 + 8
• Extract the saw-blade by first unscrewing the tight-
ening screw (1).
• Remove the saw-blade from the upper and lower
support by slightly pressing the saw´s upper arm
down (fig. 10, M).
B 2 Inserting the saw-blade fig 7, 9-11
• Lead one end of the saw-blade through the per-
foration in the table and insert the saw-blade pins
into the notch. Repeat this procedure at the upper
blade support.
• Before hooking it in, slightly press the saw´s upper
arm down. (Fig 9; Nr. 10)
• Check the position of the blade pins at the sup-
ports (fig 11).
• Tighten the blade by means of the tightening
screw. Check the blade´s tightness. Keep on ro-
tating clockwise in order to tighten the blade even
more. (Fig. 7).
