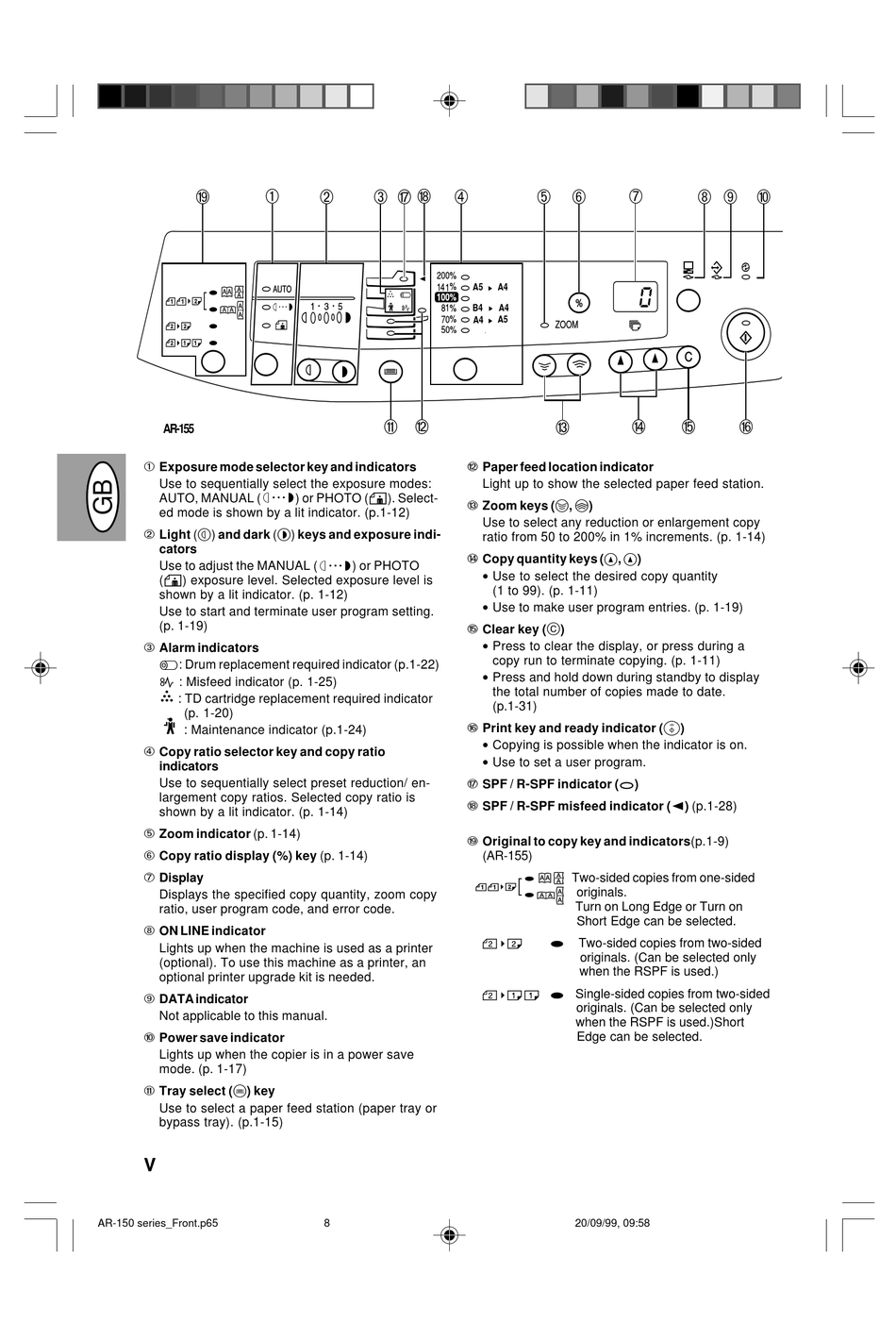

AR-155
1 Exposure mode selector key and indicators
Use to sequentially select the exposure modes:
=
AUTO, MANUAL (
ed mode is shown by a lit indicator. (p.1-12)
{
2 Light (
) and dark (
cators
Use to adjust the MANUAL (
(
) exposure level. Selected exposure level is
shown by a lit indicator. (p. 1-12)
Use to start and terminate user program setting.
(p. 1-19)
3 Alarm indicators
w : Drum replacement required indicator (p.1-22)
t
: Misfeed indicator (p. 1-25)
s
: TD cartridge replacement required indicator
(p. 1-20)
p
: Maintenance indicator (p.1-24)
4 Copy ratio selector key and copy ratio
indicators
Use to sequentially select preset reduction/ en-
largement copy ratios. Selected copy ratio is
shown by a lit indicator. (p. 1-14)
5 Zoom indicator (p. 1-14)
6 Copy ratio display (%) key (p. 1-14)
7 Display
Displays the specified copy quantity, zoom copy
ratio, user program code, and error code.
8 ON LINE indicator
Lights up when the machine is used as a printer
(optional). To use this machine as a printer, an
optional printer upgrade kit is needed.
9 DATA indicator
Not applicable to this manual.
0 Power save indicator
Lights up when the copier is in a power save
mode. (p. 1-17)
M
q Tray select (
) key
Use to select a paper feed station (paper tray or
bypass tray). (p.1-15)
V V
AR-150 series_Front.p65
3
o p
2
q w
) or PHOTO (
). Select-
}
) keys and exposure indi-
=
) or PHOTO
8
4
5
6
A A
A
A5
A4
B4
A4
A
A5
A4
e
w Paper feed location indicator
Light up to show the selected paper feed station.
N
L
e Zoom keys (
,
)
Use to select any reduction or enlargement copy
ratio from 50 to 200% in 1% increments. (p. 1-14)
<
<
r Copy quantity keys (
,
• Use to select the desired copy quantity
(1 to 99). (p. 1-11)
• Use to make user program entries. (p. 1-19)
>
u Clear key (
)
• Press to clear the display, or press during a
copy run to terminate copying. (p. 1-11)
• Press and hold down during standby to display
the total number of copies made to date.
(p.1-31)
i Print key and ready indicator (
• Copying is possible when the indicator is on.
• Use to set a user program.
o SPF / R-SPF indicator (
p SPF / R-SPF misfeed indicator (
ü Original to copy key and indicators(p.1-9)
(AR-155)
Two-sided copies from one-sided
originals.
Turn on Long Edge or Turn on
Short Edge can be selected.
Two-sided copies from two-sided
originals. (Can be selected only
when the RSPF is used.)
Single-sided copies from two-sided
originals. (Can be selected only
when the RSPF is used.)Short
Edge can be selected.
20/09/99, 09:58
7
0
8 9
r
u
i
)
)
)
) (p.1-28)
