Motortypenbezeichnung - MTU 12 V 4000 L32 FB Betriebsanleitung

Inhaltsverzeichnis

Werbung

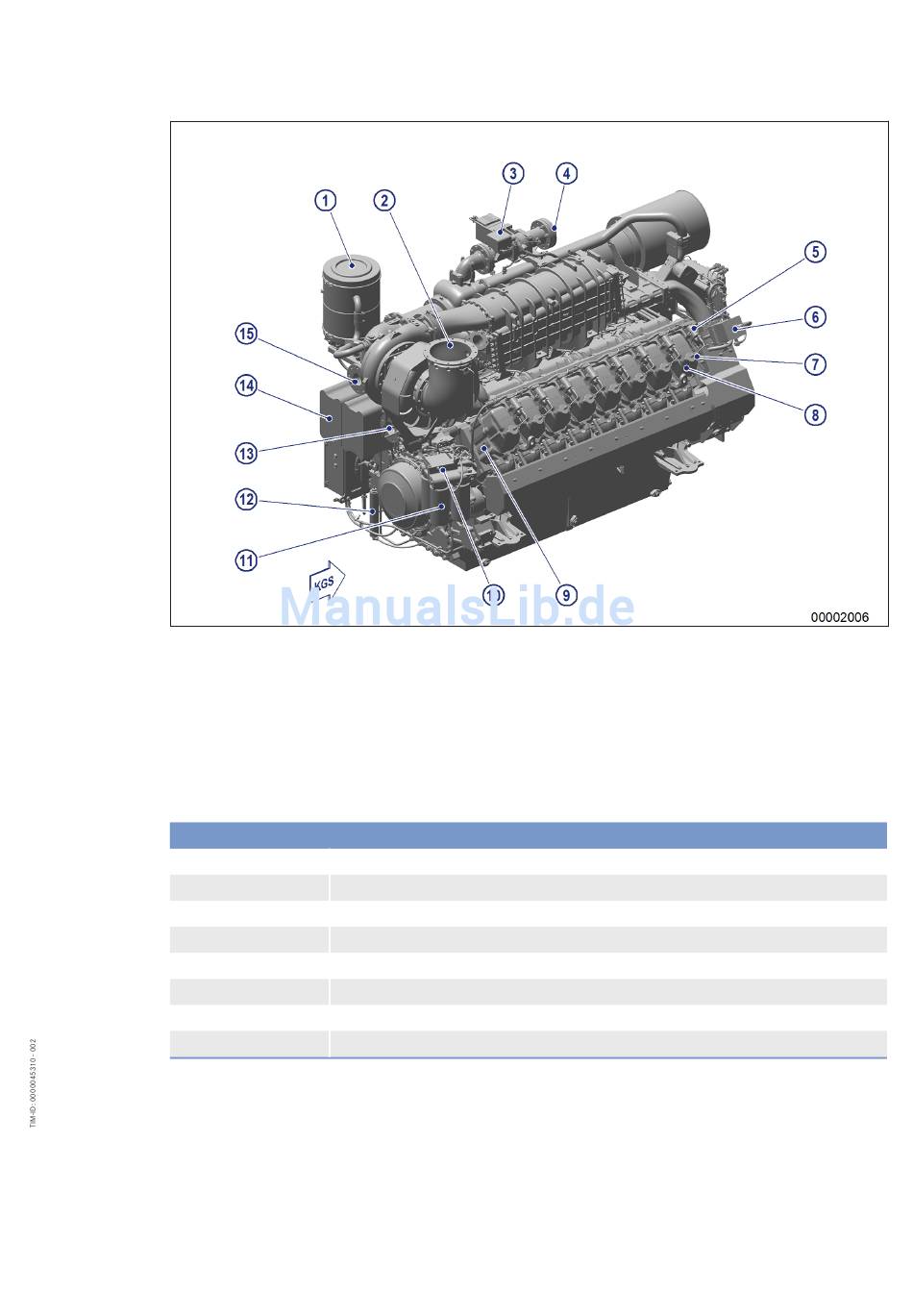

1 Kurbelgehäuseentlüftung,
Ölabscheider
2 Abgasaustritt
3 Gasregelventil
4 Anschluss Gaseintritt
5 Zündspule
6 Drosselklappe

Motortypenbezeichnung

Erklärung der Motortypenbezeichnung 12/16 V 4000 L32 FB
12/16
Zylinderzahl
V
Zylinderanordnung: V-Motor
4000
Baureihe
L
Anwendung: L = Gasmotor
3
Lastprofil
2
Konstruktionsstand
F
Zusatzmerkmal: F = 50 Hertz
B
Zusatzmerkmal: B = Biogene Gase aus Fermentationsprozessen
Tabelle 2: Motortypenbezeichnung
7 Zündkerze
8 Zylinderkopfhaube
9 Zylinderkopf
10 Entnahmestutzen für Motor-
ölprobe
11 Motorölfilter
12 Ölstandniveauschalter
MS150115/02D 2016-07 | Produktübersicht | 23
13 Anschluss Motorkühlmittel-
eintritt
14 Motorölwärmetauscher
15 Anschluss Motorkühlmittel-
austritt
