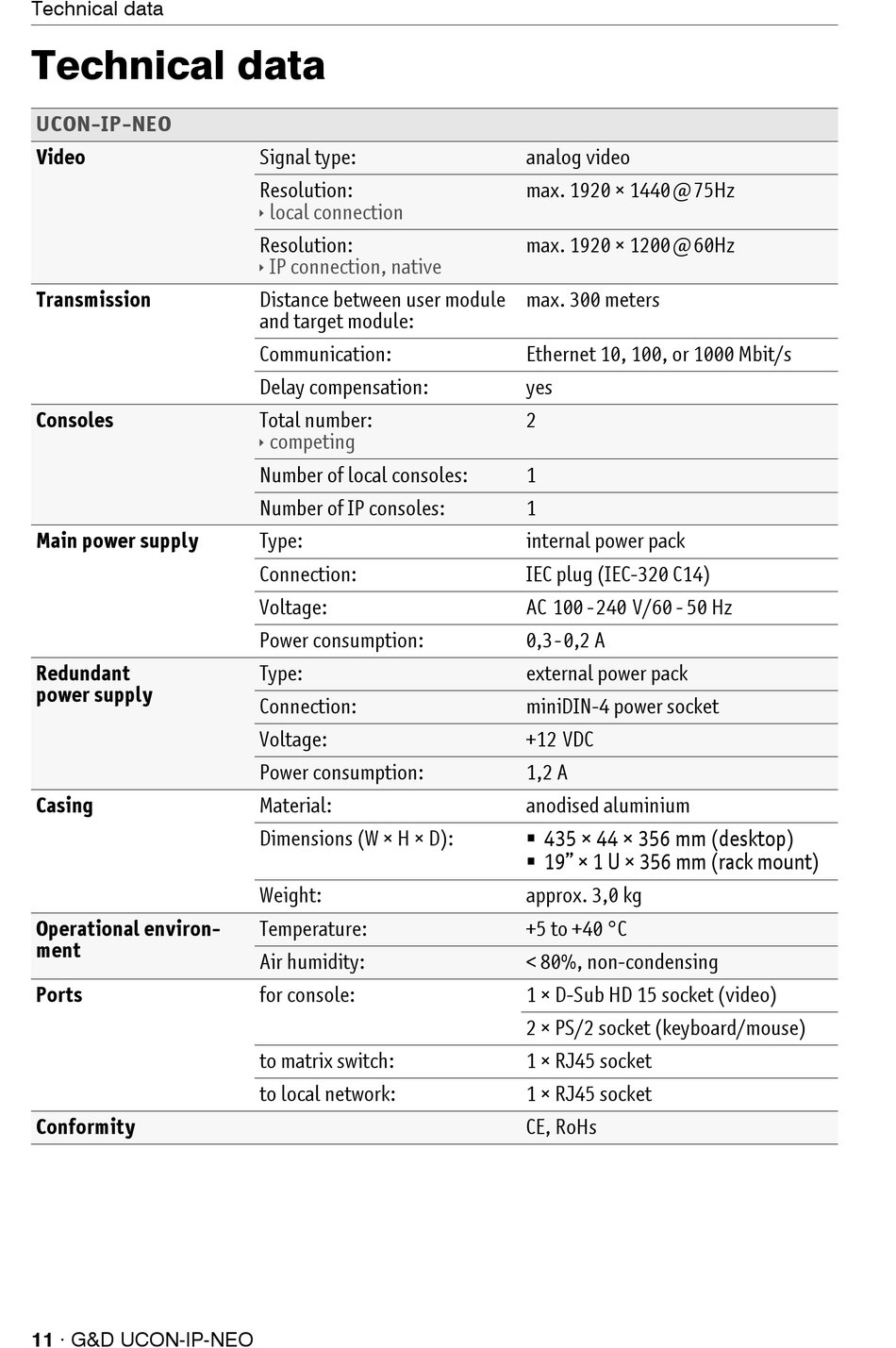

Technical data

Technical data
UCON-IP-NEO
Video
Transmission
Consoles
Main power supply
Redundant 
power supply
Casing
Operational environ-
ment
Ports
Conformity
11 · G&D UCON-IP-NEO
Signal type:
Resolution:
 local connection
Resolution:
 IP connection, native
Distance between user module
and target module:
Communication:
Delay compensation:
Total number:
 competing
Number of local consoles:
Number of IP consoles:
Type:
Connection:
Voltage:
Power consumption:
Type:
Connection:
Voltage:
Power consumption:
Material:
Dimensions (W × H × D):
Weight:
Temperature:
Air humidity:
for console:
to matrix switch:
to local network:
analog video
max. 1920 × 1440 @ 75Hz
max. 1920 × 1200 @ 60Hz
max. 300 meters
Ethernet 10, 100, or 1000 Mbit/s
yes
2
1
1
internal power pack
IEC plug (IEC-320 C14)
AC 100 - 240 V/60 - 50 Hz
0,3 - 0,2 A
external power pack
miniDIN-4 power socket
+12 VDC
1,2 A
anodised aluminium
 435 × 44 × 356 mm (desktop)
 19" × 1 U × 356 mm (rack mount)
approx. 3,0 kg
+5 to +40 °C
< 80%, non-condensing
1 × D-Sub HD 15 socket (video)
2 × PS/2 socket (keyboard/mouse)
1 × RJ45 socket
1 × RJ45 socket
CE, RoHs
