Technical Data - Guntermann & Drunck DVICenter DP64 Installationsanleitung

Technical data « Central Module

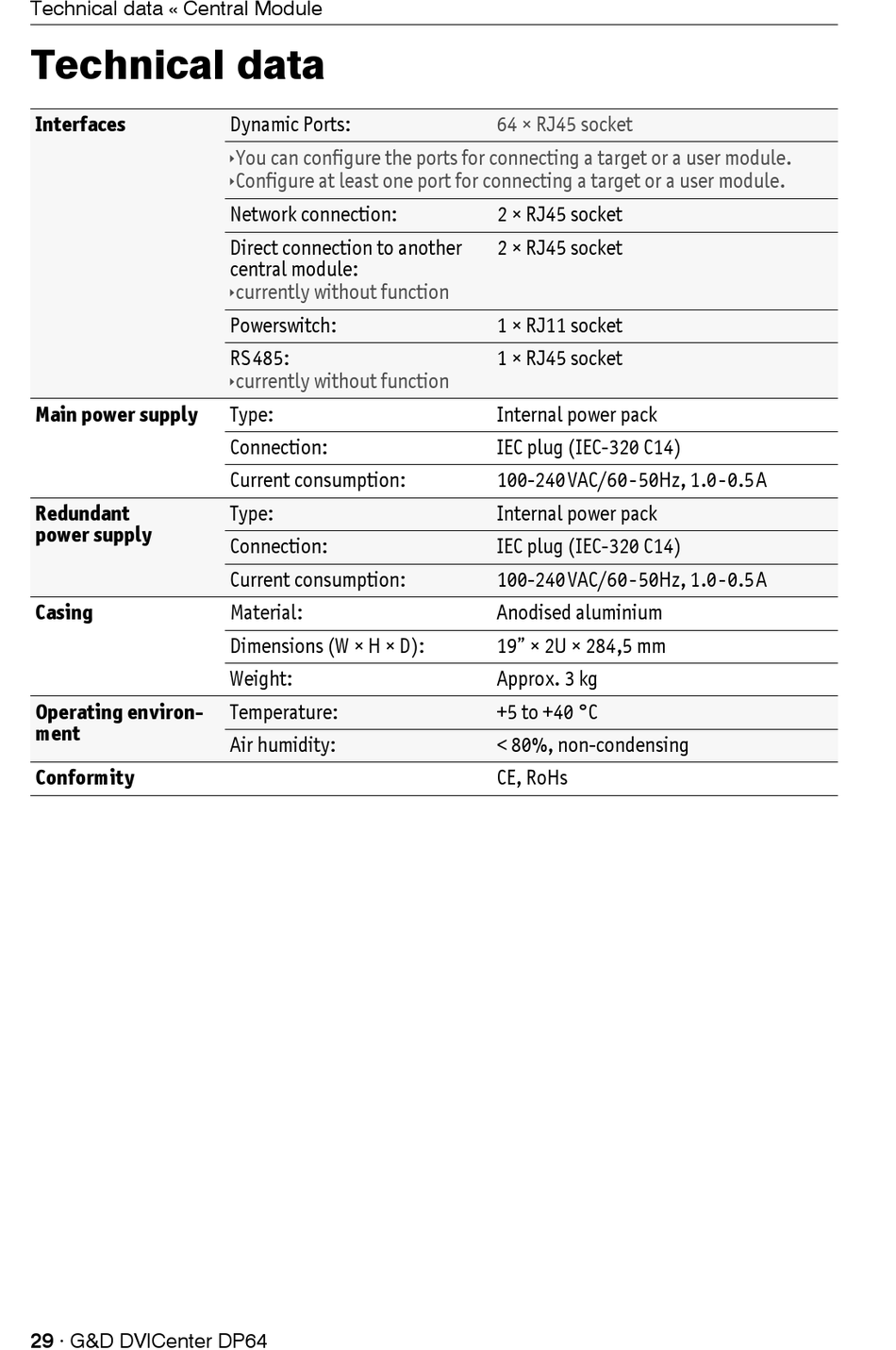

Technical data

Interfaces
Main power supply
Redundant
power supply
Casing
Operating environ-
ment
Conformity
29 · G&D DVICenter DP64
Dynamic Ports:
You can configure the ports for connecting a target or a user module.
Configure at least one port for connecting a target or a user module.
Network connection:
Direct connection to another
central module:
currently without function
Powerswitch:
RS 485:
currently without function
Type:
Connection:
Current consumption:
Type:
Connection:
Current consumption:
Material:
Dimensions (W × H × D):
Weight:
Temperature:
Air humidity:
64 × RJ45 socket
2 × RJ45 socket
2 × RJ45 socket
1 × RJ11 socket
1 × RJ45 socket
Internal power pack
IEC plug (IEC-320 C14)
100-240 VAC/60 - 50Hz, 1.0 - 0.5 A
Internal power pack
IEC plug (IEC-320 C14)
100-240 VAC/60 - 50Hz, 1.0 - 0.5 A
Anodised aluminium
19" × 2U × 284,5 mm
Approx. 3 kg
+5 to +40 °C
< 80%, non-condensing
CE, RoHs
