Back panel

Network Keyb. Mouse

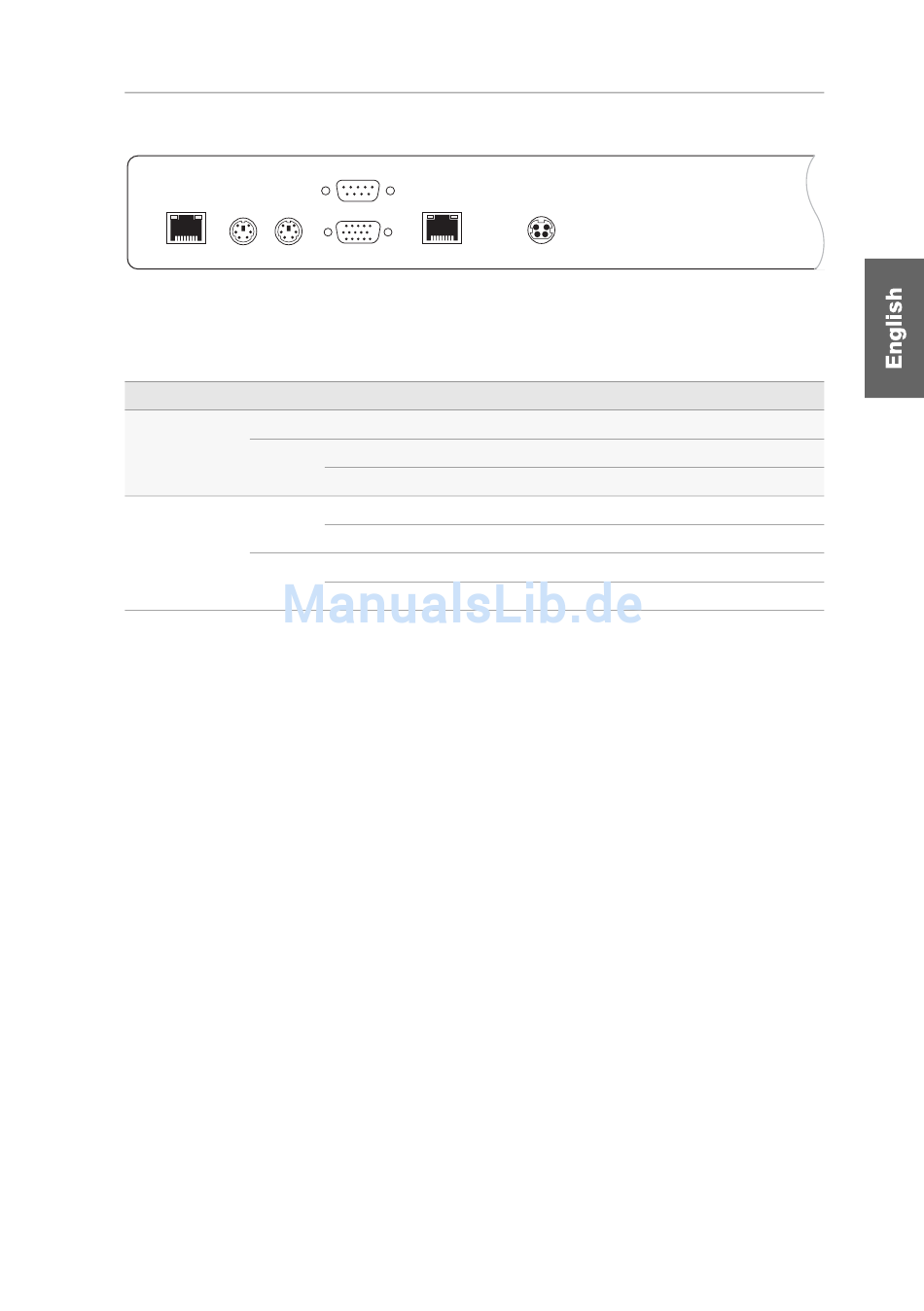

Figure 4: Left section of the back panel of the user module
Both the Network and the Transmission port provide additional status LEDs, which
indicate the following operating conditions:
Section LED
Network yellow
green
Transmission yellow
green
COM1
Monitor Transmission
Status Meaning
blinking Indicates activity.
on Established link.
blinking Link could not be established.
on Port is used by another user.
off Free port.
on Established connection to matrix system.
off No connection to matrix switch.
Red. Power
G&D UCON-IP-NEO · 10
Status displays
