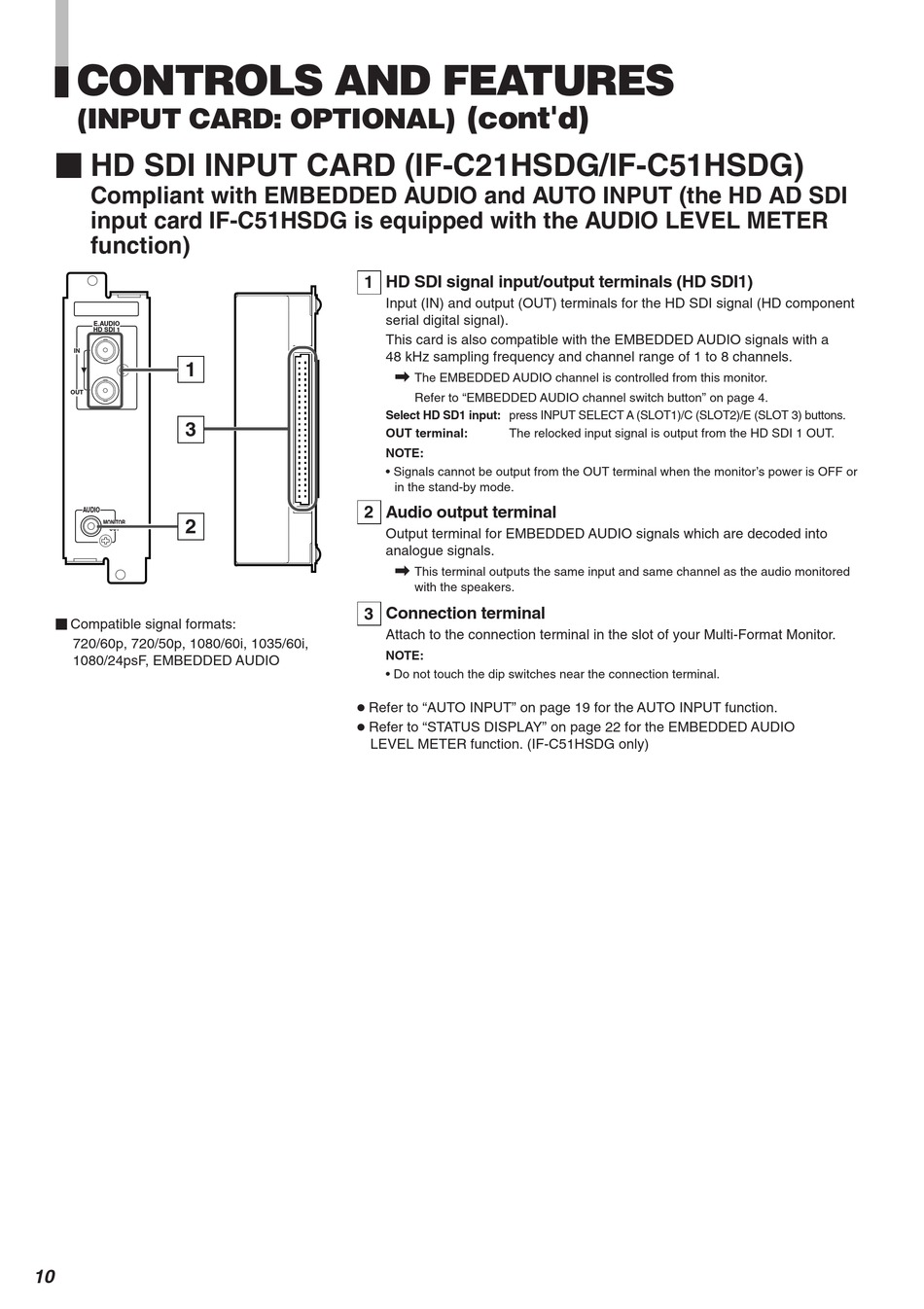

CONTROLS AND FEATURES
(INPUT CARD: OPTIONAL)
HD SDI INPUT CARD (IF-C21HSDG/IF-C51HSDG)
Compliant with EMBEDDED AUDIO and AUTO INPUT (the HD AD SDI
input card IF-C51HSDG is equipped with the AUDIO LEVEL METER
function)
E.AUDIO
HD SDI 1
IN
1
OUT
3
AUDIO
2
MONITOR
OUT
Compatible signal formats:
720/60p, 720/50p, 1080/60i, 1035/60i,
1080/24psF, EMBEDDED AUDIO
10
(cont'd)
1 HD SDI signal input/output terminals (HD SDI1)
Input (IN) and output (OUT) terminals for the HD SDI signal (HD component
serial digital signal).
This card is also compatible with the EMBEDDED AUDIO signals with a
48 kHz sampling frequency and channel range of 1 to 8 channels.
The EMBEDDED AUDIO channel is controlled from this monitor.
Refer to "EMBEDDED AUDIO channel switch button" on page 4.
Select HD SD1 input: press INPUT SELECT A (SLOT1)/C (SLOT2)/E (SLOT 3) buttons.
OUT terminal: The relocked input signal is output from the HD SDI 1 OUT.
NOTE:
• Signals cannot be output from the OUT terminal when the monitor's power is OFF or
in the stand-by mode.
2
Audio output terminal
Output terminal for EMBEDDED AUDIO signals which are decoded into
analogue signals.
This terminal outputs the same input and same channel as the audio monitored
with the speakers.
Connection terminal
3
Attach to the connection terminal in the slot of your Multi-Format Monitor.
NOTE:
• Do not touch the dip switches near the connection terminal.
● Refer to "AUTO INPUT" on page 19 for the AUTO INPUT function.
● Refer to "STATUS DISPLAY" on page 22 for the EMBEDDED AUDIO
LEVEL METER function. (IF-C51HSDG only)
