4 Mechanical installation
Standard devices in the power range 0.37 ... 11 kW
Mounting with fixing rails (standard)
4.1.2 Mounting with fixing rails (standard)
Mounting material required from the scope of supply:
Description
Fixing rails
Dimensions
0
L
b1 d b b1
c
a

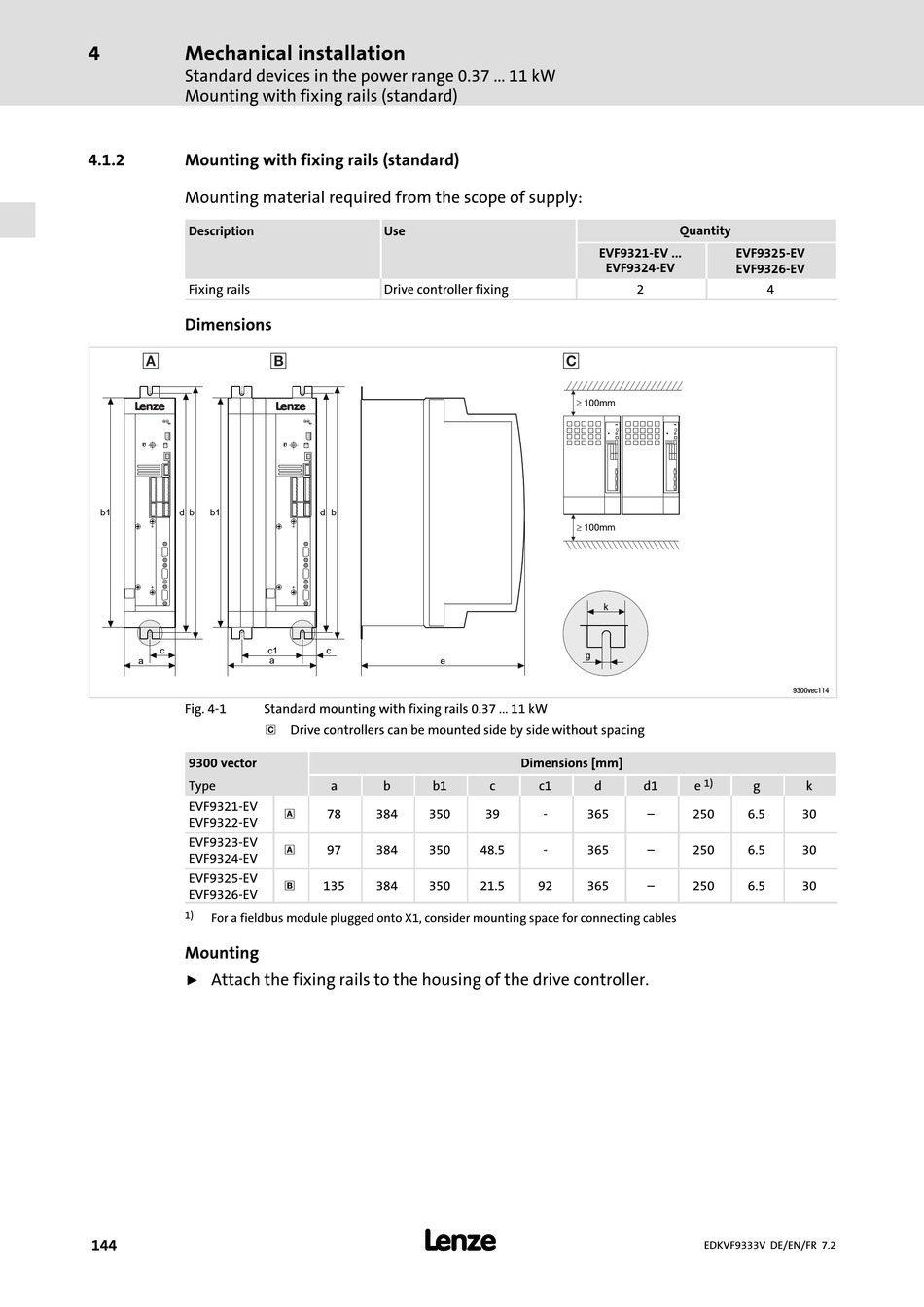

Fig. 4−1
9300 vector
Type
EVF9321−EV
EVF9322−EV
EVF9323−EV
EVF9324−EV
EVF9325−EV
EVF9326−EV
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting
Attach the fixing rails to the housing of the drive controller.
ƒ
144
Use
Drive controller fixing
1
L
d b
c1 c
a
Standard mounting with fixing rails 0.37 ... 11 kW
2
Drive controllers can be mounted side by side without spacing
a b b1
0
78 384 350
0
97 384 350
1
135 384 350
l
EVF9321−EV ...
EVF9324−EV
2
³ 100mm
³ 100mm
k
g
e
Dimensions [mm]
c c1 d
39 − 365
48.5 − 365
21.5 92 365
Quantity
EVF9325−EV
EVF9326−EV
2 4
9300vec114
1)
d1 e g k
˘ 250 6.5 30
˘ 250 6.5 30
˘ 250 6.5 30
EDKVF9333V DE/EN/FR 7.2
