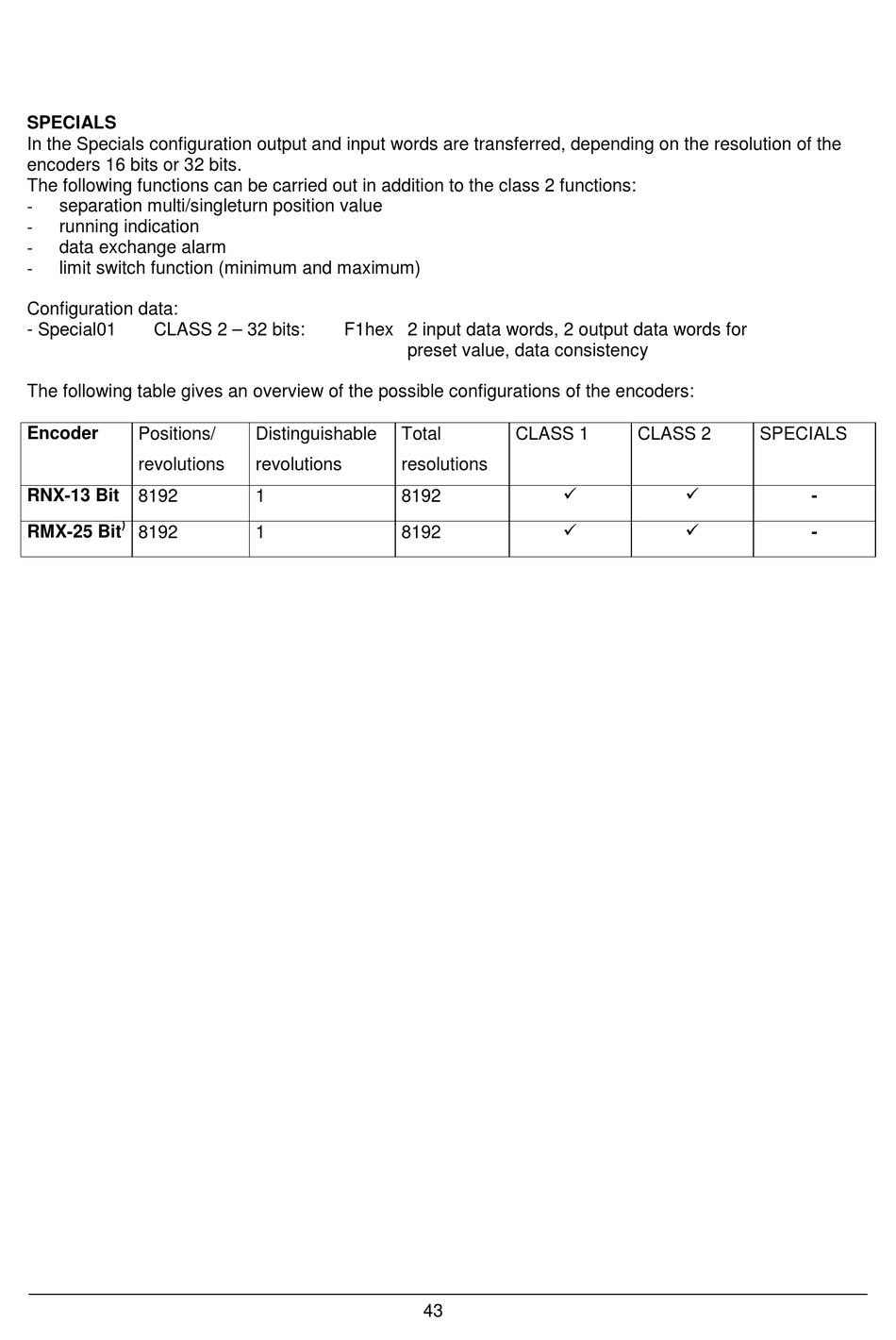

SPECIALS
In the Specials configuration output and input words are transferred, depending on the resolution of the
encoders 16 bits or 32 bits.
The following functions can be carried out in addition to the class 2 functions:
separation multi/singleturn position value
-
running indication
-
- data exchange alarm
limit switch function (minimum and maximum)
-
Configuration data:
- Special01 CLASS 2 – 32 bits:
The following table gives an overview of the possible configurations of the encoders:
Encoder
Positions/
revolutions
RNX-13 Bit
8192
)
RMX-25 Bit
8192
F1hex 2 input data words, 2 output data words for
preset value, data consistency
Distinguishable Total
revolutions resolutions
1 8192
1 8192
43
CLASS 1 CLASS 2
!
!
SPECIALS
!
-
!
-
