techem compact V ec Montageanleitung Seite 6

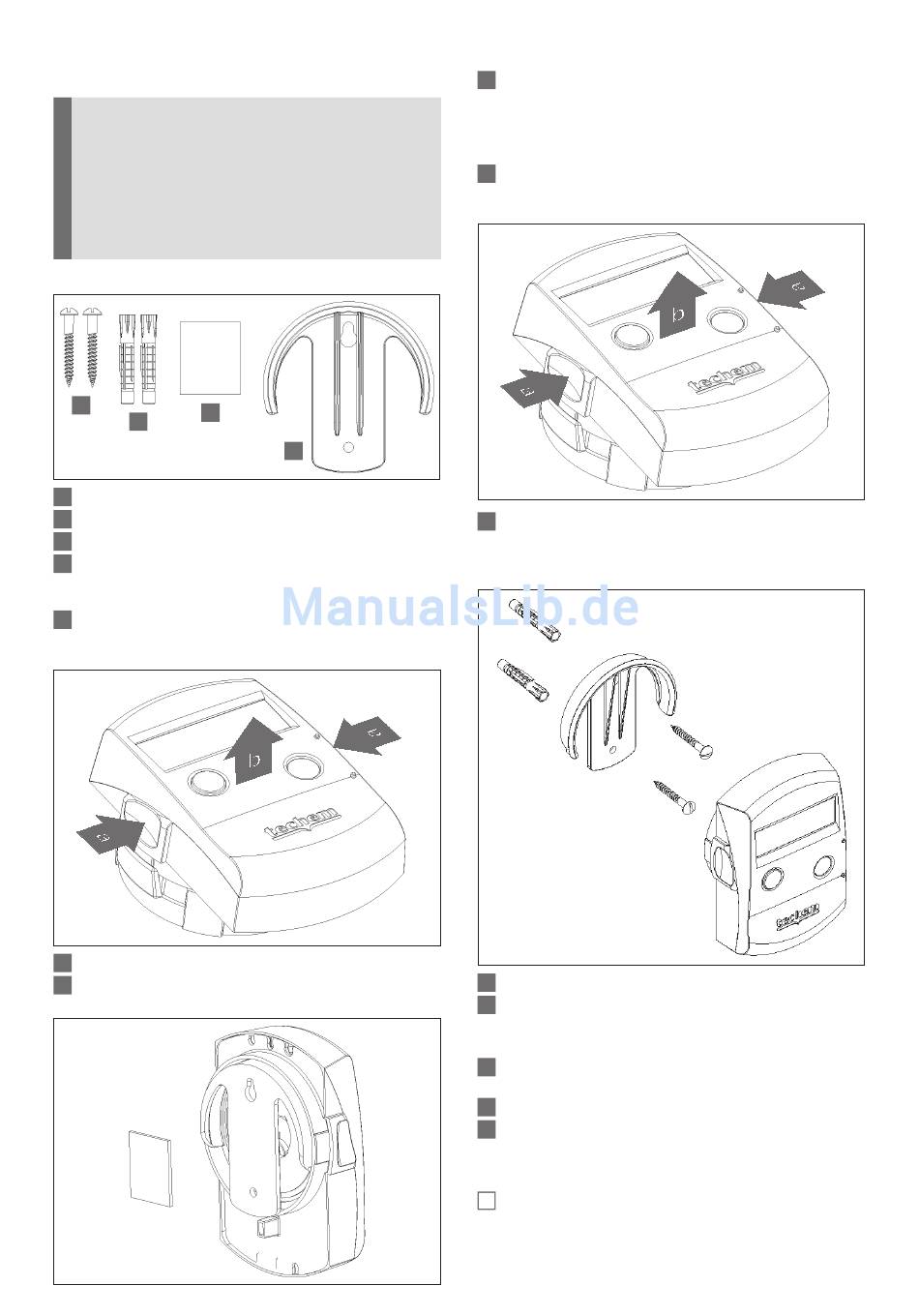

Assembling the calculator with wall mount
!
The calculator must be removed from the flow
sensor and mounted on the wall with the wall
mount. The display must be accessible at all times
and readable without further aids.
The calculator must not be assembled beneath the
flow meter!
The flow meter complies with protection class IP65;
the calculator complies with protection class IP54.
The assembly set for wall mounting consists of:
a
c
b
a 2 screws
b 2 dowels
c 1 double-sided adhesive pad
d 1 wall mount
When installing with the adhesive pad, proceed as follows:
1 Lightly press the catch points on both sides of the
calculator (a) and lift the calculator from the flow
sensor (b):
2 Engage the wall mount on the calculator.
3 Remove the protective foil from the adhesive pad
and stick the adhesive pad on the wall mount:
6
d
4 Remove the other protective foil from the adhesive
pad and press the calculator with the wall mount
firmly on the installation point.
When installing with the dowels, proceed as follows:
1 Lightly press the catch points on both sides of the
calculator (a) and lift the calculator from the flow
sensor (b):
Drill holes for the dowels (∅ 6 mm, depth 40 mm).
2
Observe the maximum length of the white connec-
ting cable between the the flow sensor and the the
calculator.
3 Screw the wall mount tight.
4 Place the calculator on the wall adapter.
Functional check
Open the shut-off devices in the forward and return
1
flow.
2 Check the leak tightness of the connector.
3 Press the push-button on the meter to switch on the
display.
You can assume that the meter works correctly if
4 the flow quantity and the temperatures are displayed
plausibly (refer to the description of the displays on
the next page),
