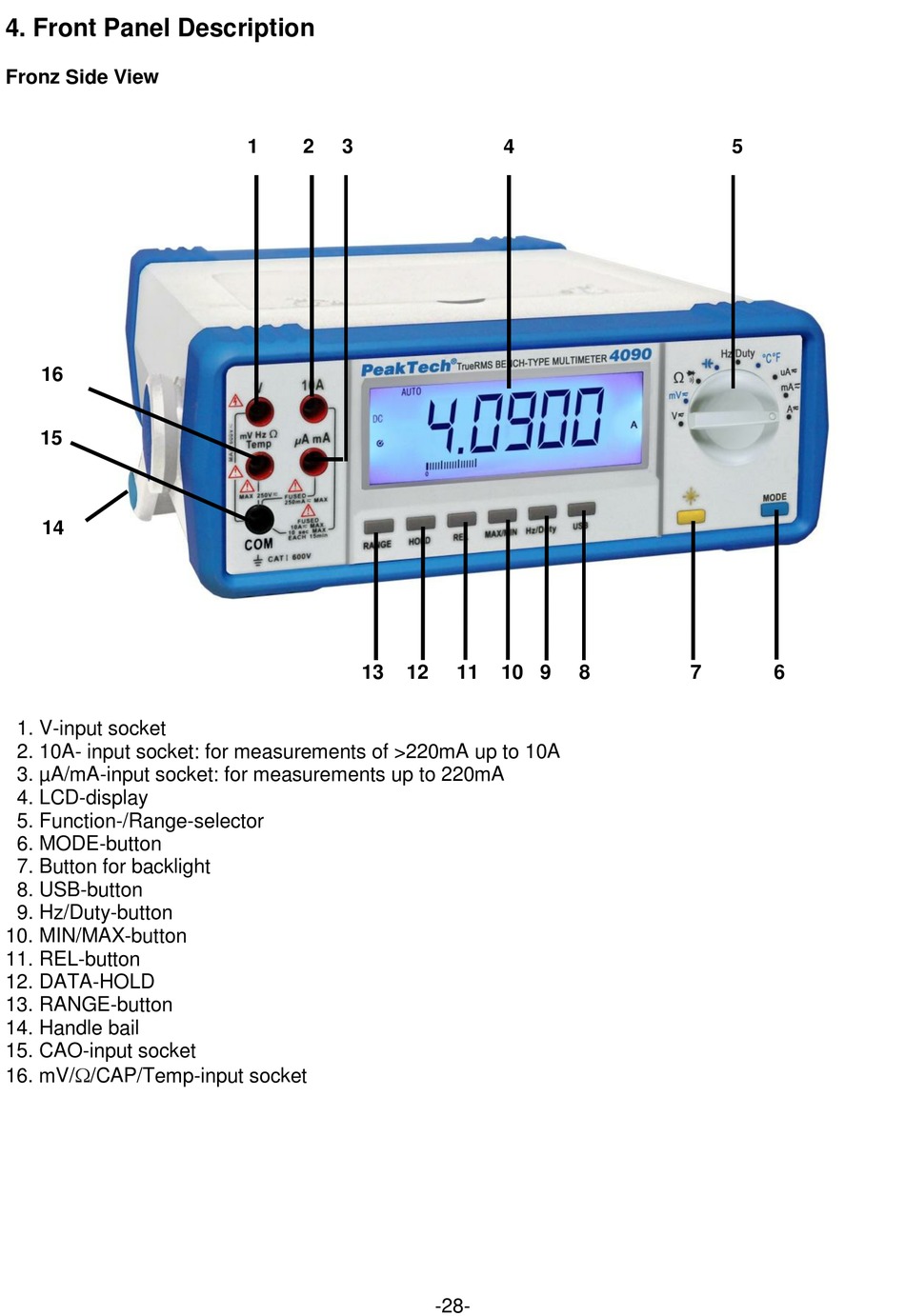

4. Front Panel Description

Fronz Side View
16
15
14
1. V-input socket
2. 10A- input socket: for measurements of >220mA up to 10A
3. µA/mA-input socket: for measurements up to 220mA
4. LCD-display
5. Function-/Range-selector
6. MODE-button
7. Button for backlight
8. USB-button
9. Hz/Duty-button
10. MIN/MAX-button
11. REL-button
12. DATA-HOLD
13. RANGE-button
14. Handle bail
15. CAO-input socket
16. mV//CAP/Temp-input socket
