Outline And Dimensions - Daikin FWT02CATNMV1 Installationshandbuch

Indoor Unit
THE MARK SHOWS PIPING DIRECTION
REAR
LEFT
BOTTOM
LOUVER
FRONT GRILLE FIXED SCREWS
(INSIDE)
NOTE: PLEASE BASED ON ACTUAL INSTALLATION PLATE DESIGN IN THE UNIT FOR INSTALLATION PLATE
FWT02/03/04 DIMENSION REFERENCE AT PAGE 1&2.
« Recommended mounting plate retention spots
(5 spots in all)
D
H
J
Dimension
Model
FWT02/03/04

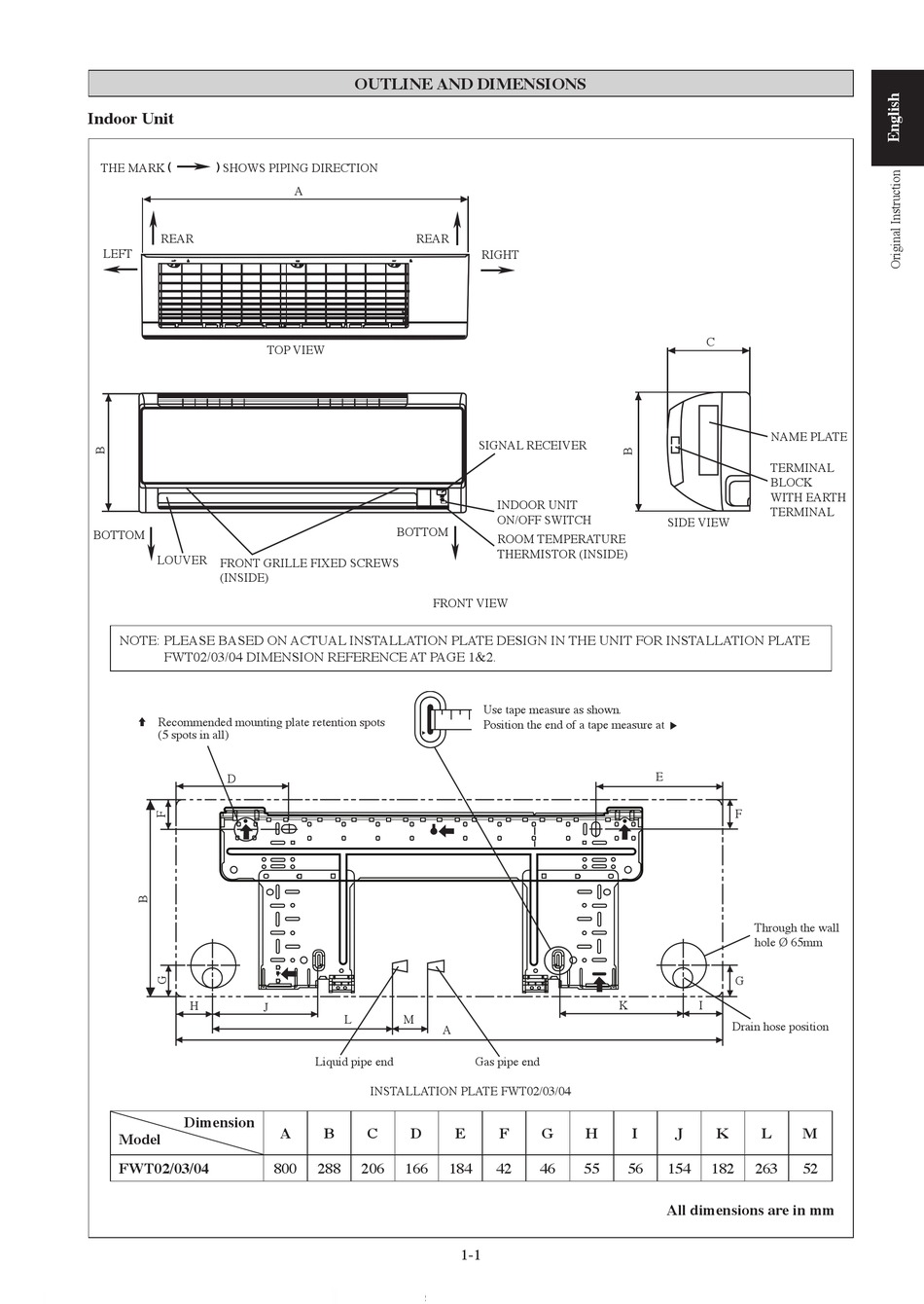

OUTLINE AND DIMENSIONS

A
REAR
TOP VIEW
BOTTOM
FRONT VIEW
L M
Liquid pipe end
INSTALLATION PLATE FWT02/03/04
A B C D
800 288 206 166
RIGHT
SIGNAL RECEIVER
INDOOR UNIT
ON/OFF SWITCH
ROOM TEMPERATURE
THERMISTOR (INSIDE)
Use tape measure as shown.
Position the end of a tape measure at Ñ
A
Gas pipe end
E F G H
184 42 46 55
1-1
C
NAME PLATE
TERMINAL
BLOCK
WITH EARTH
TERMINAL
SIDE VIEW
E
F
Through the wall
hole Ø 65mm
G
K I
Drain hose position
I J K L
56 154 182 263
All dimensions are in mm
M
52
