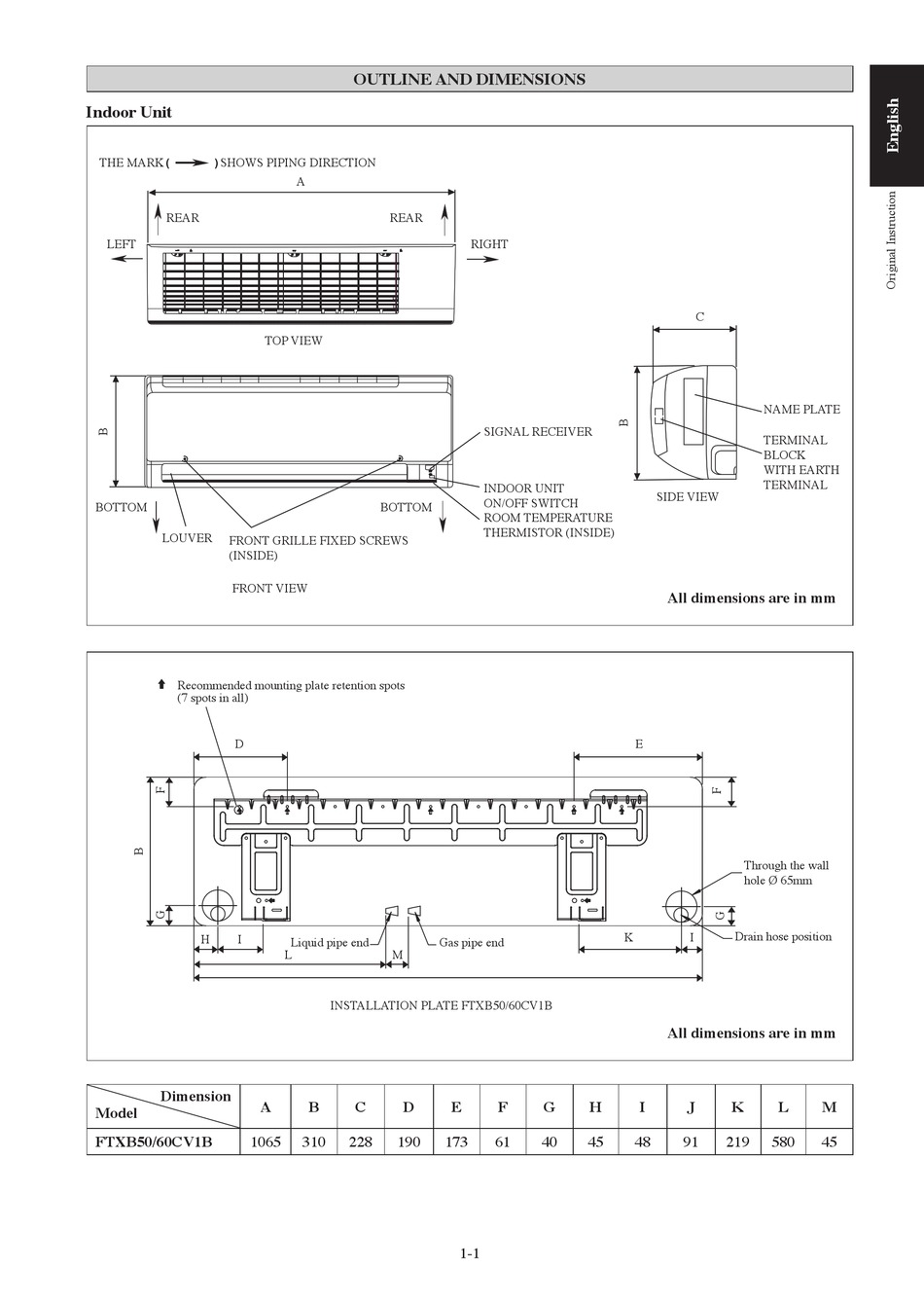

Outline And Dimensions - Daikin FTXB50CV1B Installationsanleitung

Indoor Unit
THE MARK SHOWS PIPING DIRECTION
REAR
LEFT
BOTTOM
LOUVER
FRONT GRILLE FIXED SCREWS
(INSIDE)
FRONT VIEW
«
Recommended mounting plate retention spots
(7 spots in all)
D
H I
Dimension
A
Model
FTXB50/60CV1B 1065

OUTLINE AND DIMENSIONS

A
REAR
TOP VIEW
BOTTOM
Liquid pipe end Gas pipe end
L M
INSTALLATION PLATE FTXB50/60CV1B
B C D
310 228 190
RIGHT
SIGNAL RECEIVER
INDOOR UNIT
ON/OFF SWITCH
ROOM TEMPERATURE
THERMISTOR (INSIDE)
E F G H
173 61 40 45
1-1
C
NAME PLATE
TERMINAL
BLOCK
WITH EARTH
TERMINAL
SIDE VIEW
All dimensions are in mm
E
Through the wall
hole Ø 65mm
Drain hose position
K I
All dimensions are in mm
I J K L
48 91 219 580
M
45
