Documentation
The following documents have to be turned over to the
operator of the system:
• Installation instructions with completed test record,
• Revision plan showing the location of heating mats,
temperature sensor and furniture arrangement as well as
splices of heating wires and cold tails.
• Description of floor construction.
Temperature control
Several thermostatic controllers suitable both for surface
and flush mounting are available to regulate the floor
and/or room temperature. In rooms with several heat
sources (e.g. bathrooms) only floor temperature
thermostats may be used.
For precise temperature control, a timer can be installed
upstream of the underfloor heating system. Optionally, floor
temperature controls with programmable setback times and
setback temperatures are available.
B1 Control device
F1 Fuse
L Phase 230V~
N Neutral
PE Earth conductor, shield
R1 Heating mat with earthing braid
TF Floor sensing probe

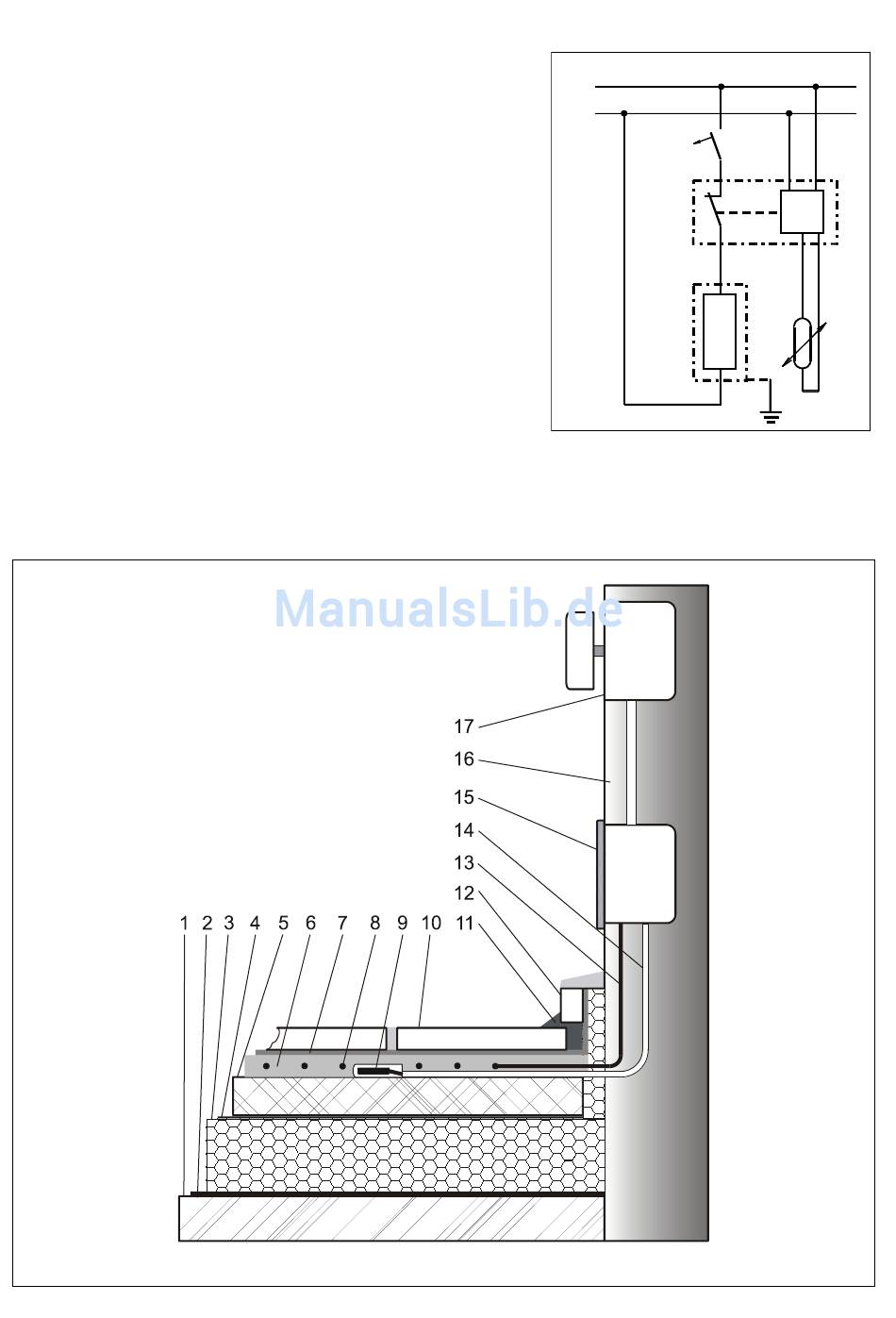

Example of floor construction and electrical installation
1. Unfinished floor
2. Vapour barrier, if required
3. Impact sound insulation, thermal insulation
4. Insulating sheet
5. Screed
6. Self-levelling compound, heat resistant
7. Thin-set adhesive, heat resistant
8. Heating mat
9. Floor sensing probe
10. Tiles
11. Elastic joint seal
12. Skirting board
13. Conduit for connecting lead
14. Conduit for temperature sensor
15. Connection box
16. Wall
17. Deep box , temperature controller
L
N
7
F1
B1
R1
PE
TF
