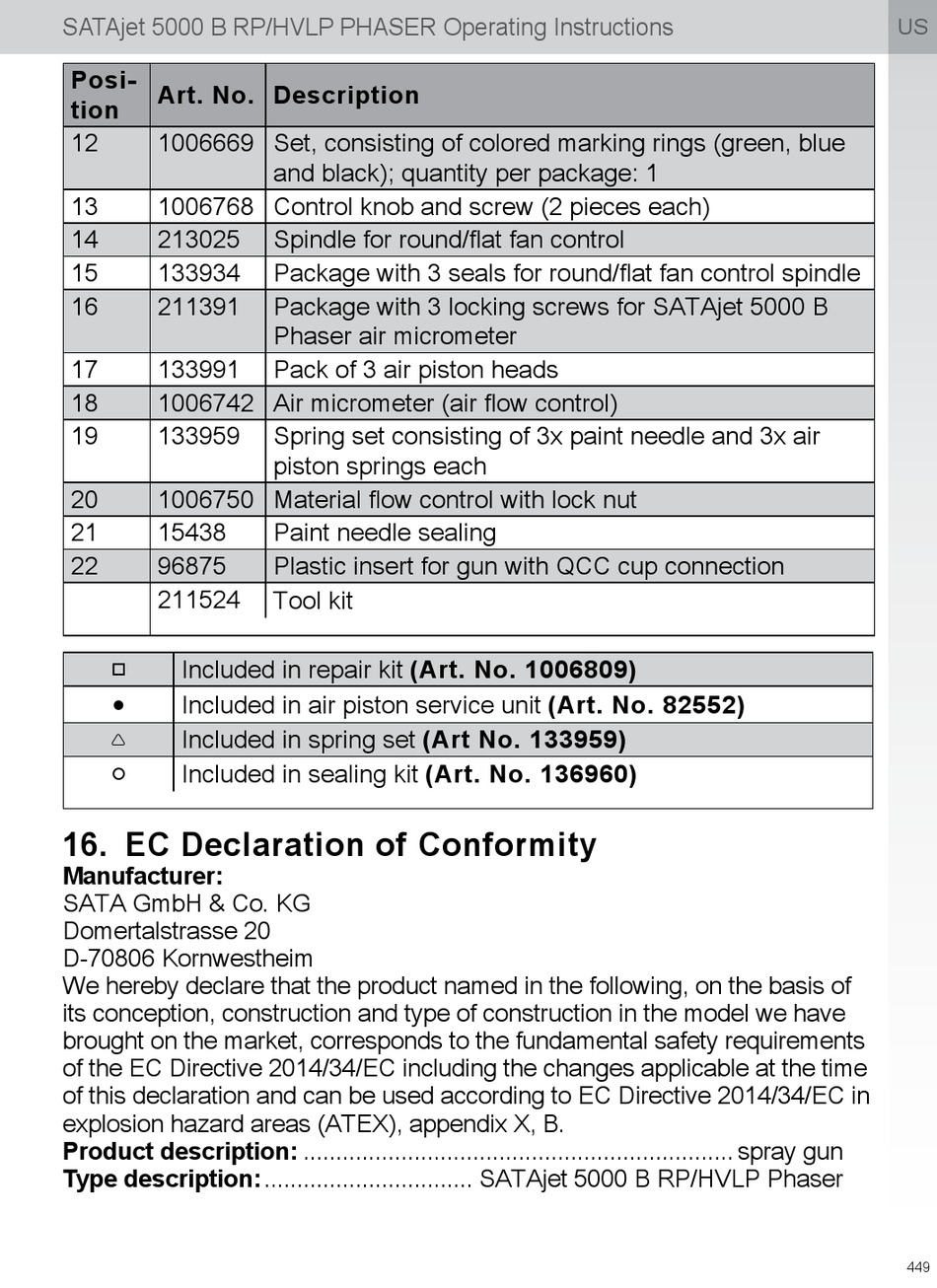

SATAjet 5000 B RP/HVLP PHASER Operating Instructions
Posi-
Art. No. Description
tion
12 1006669 Set, consisting of colored marking rings (green, blue
13 1006768 Control knob and screw (2 pieces each)
14 213025
15 133934
16 211391
17 133991
18 1006742 Air micrometer (air flow control)
19 133959
20 1006750 Material flow control with lock nut
21 15438
22 96875
211524
Included in repair kit (Art. No. 1006809)

Included in air piston service unit (Art. No. 82552)

Included in spring set (Art No. 133959)

Included in sealing kit (Art. No. 136960)


16. EC Declaration of Conformity

Manufacturer:
SATA GmbH & Co. KG
Domertalstrasse 20
D-70806 Kornwestheim
We hereby declare that the product named in the following, on the basis of
its conception, construction and type of construction in the model we have
brought on the market, corresponds to the fundamental safety requirements
of the EC Directive 2014/34/EC including the changes applicable at the time
of this declaration and can be used according to EC Directive 2014/34/EC in
explosion hazard areas (ATEX), appendix X, B.
Product description: .................................................................. spray gun
Type description: ................................ SATAjet 5000 B RP/HVLP Phaser
and black); quantity per package: 1
Spindle for round/flat fan control
Package with 3 seals for round/flat fan control spindle
Package with 3 locking screws for SATAjet 5000 B
Phaser air micrometer
Pack of 3 air piston heads
Spring set consisting of 3x paint needle and 3x air
piston springs each
Paint needle sealing
Plastic insert for gun with QCC cup connection
Tool kit
US
