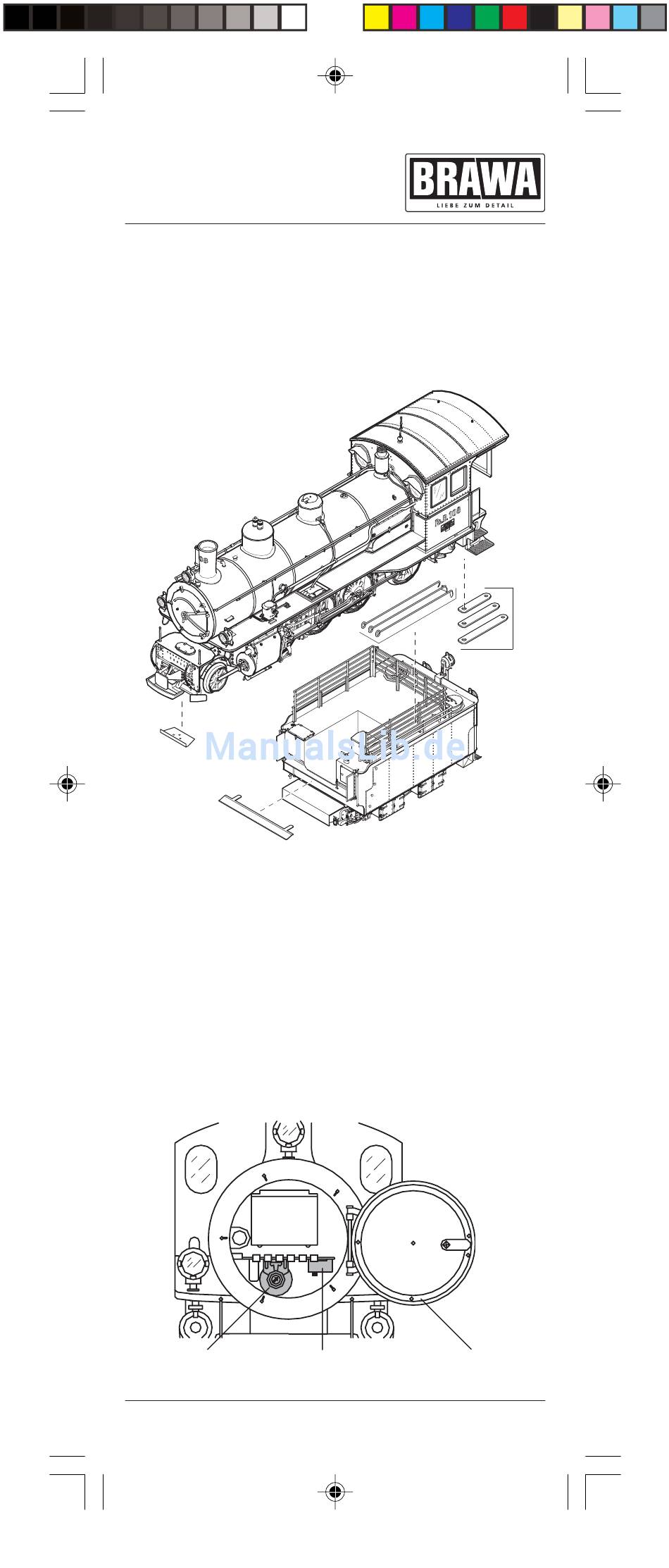

Fitting additional parts (Fig. 2)
Accessory parts have been loosely enclosed in the packaging.
• 1 = 3 x Draw bar, mounting see page 19, item 3.
• 2 = 3 x Tools
• 3 = 1 x Buffer detail
• 4 = 1 x Metal plate
Fig. 2
1
2
3
4
Sound control / exhaust puffs (Fig. 3)
(only together with the sound module)
The potentiometer (1) for adjusting the sound control of the
loudspeaker and the switch (2) for 2 or 4 exhaust puffs is located
behind the boiler door (3).
Turn the potentiometer (1) clockwise to increase the volume. Switch
(2) has two positions. As shown in the graphic at the front, setting on
the left for 2 exhaust puffs, setting on the right for 4 exhaust puffs.
Fig. 3
1
2
3
