2. If the interface is not in use, solder the decoder to the dummy

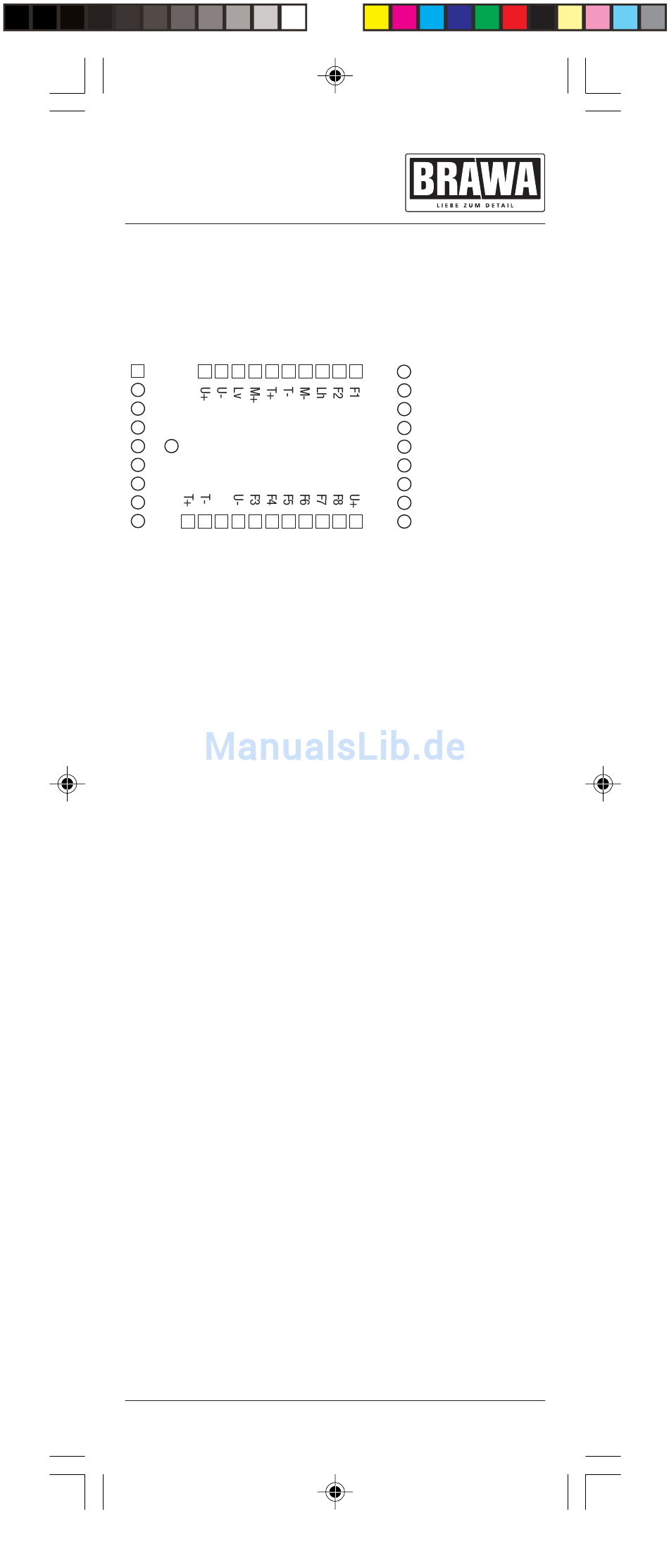

Configuration dummy plug
T- : Track
T+ : Track
M- : Motor left
M + : Motor right
U- : Minus pole rectified rail voltage
U+ : Plus pole rectified rail voltage
Lh : Light back (-)
Lv : Light front (-)
F1 : Light front and back 3x each
F2 : not in use
F3 : Smoke generators
F4 : Smoke generators
F5 : Inner lighting with F12
F6 : Light back right
F7 : Light front left
F8 : Inner lighting coupled with driving light
3. As far as possible, use a sound module and decoder with SUSI
Configuration:
Pin 1 = echo sensor
Pin 2 = control boiler light
Pin 3 = U-ground
Pin 4 = loudspeaker
Pin 5 = loudspeaker
Pin 6 = reserved for future use
Pin 7 = reserved for future use
7. Replacing the pick-up (Fig. 7)
Rail pick-up: unscrew the screws (17) of the pick-up (16) and
remove the pick-up.
Wheelset pickup: dismantle housing, see point 1. Unscrew fastening
screws (04) and pull PCB (05) up and off. Unscrew screws (34) of
the cover (33) and remove the pick-up (32).
8. Switch, bottom of the tender (Fig. 7)
The switches on the bottom of the tender are marked with numbers
1, 2 and 3.
Switch 1: motor on/off
Switch 2: polarity changeover NMRA/LGB
Switch 3: all additional functions of the locomotive on/off
G4_5_10000_10001.p65
plug. Remove all parts on the dummy plug before connecting to
the tender PCB.
1
Sense
9
interface. To connect the sound module, use the "sound"
connection on the tender PCB.
