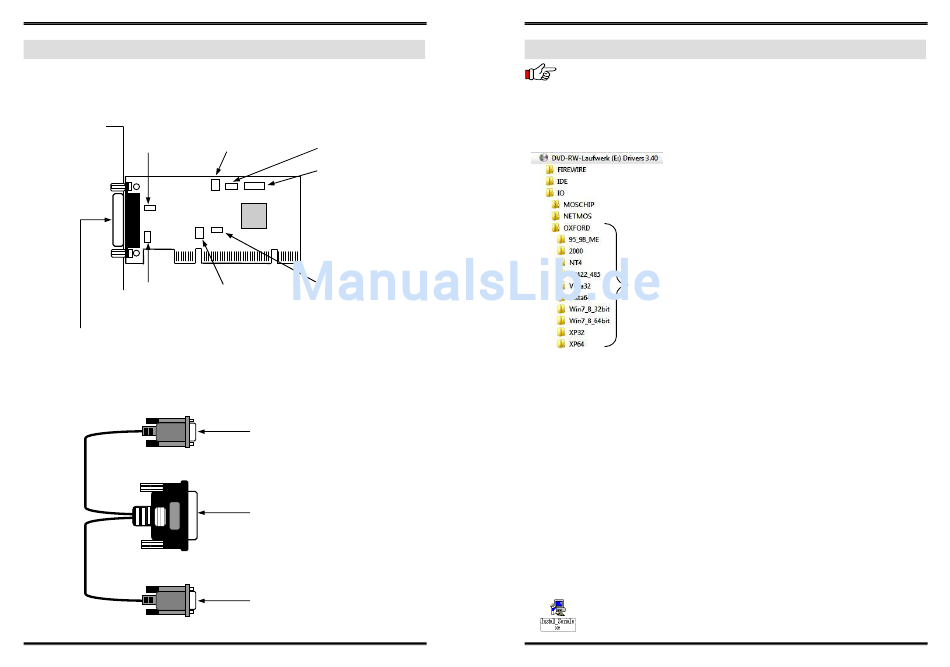

3. Layout und Jumpereinstellungen
3.1 Layout
JP7:
S1 Abschlusswiderstand
Ein/Ausschalten
JP8:
S2 Abschlusswiderstand
Ein/Ausschalten
J2: DB25 Stecker für Octopus-Kabel 2 x 9 Pin
3.2 Octopus Kabel (DB25 Buchse zu 2 x DB9 Stecker)
P1
P2
Seriell RS-422/485 PCI Karte
S1:
S1
JP1 RS-485TXD Control
JP5: RS-422/485
JP3 Echo
Mode Einstellung
J1:
Nur für Testzwecke
im Werk
S2
S2:
JP6: RS-422/485
JP2 RS-485TXD Control
Mode Einstellung
JP4 Echo
Port 1 (DB 9 Pin Stecker)
Zur J2 Buchse DB 25 Stecker
Port 2 (DB 9 Pin Stecker)
4
Seriell RS-422/485 PCI Board
5. Driver Installation
Note:
PLEASE DO NOT LET WINDOWS AUTO SEARCH THE DRIVERS ON THE CD, it
will cause problems because the INF files will be conflict in this case. Instead, please
browse to the correct location (folder) manually to make sure the correct drivers are
chosen and installed correctly.
Drivers are in each corresponding folder
5.1 Windows 98, ME, 2000, XP, Vista, 7, 8 and
Server 2003 / 2008
1. When the system is powered, Windows will invoke Windows' New Hardware
Wizard. Click〝 Next 〞to continue, select〝 Install from a list or specific loca-
tion（ （ （ （ Advanced） ） ） ） 〞and click〝 Next 〞.
2. Select〝 Include this location in the search 〞then click〝 Browse 〞to speci-
fy the driver's location for your OS (for example, XP is E:\IO\OXFORD\XP32)
and click〝 Next 〞to continue.
3. Click〝 Next 〞to continue, and click〝 Finish 〞to complete the installation.
4. To check the Installation, right click on〝My Computer〞and choose
〝Manage〞. Choose〝 Device Manager 〞and double click〝 Ports 〞.
5.2 Windows NT 4.0
To install the Windows NT driver, please go into WinNT4 sub-directory and run
(double click) Install_Serial.exe to install all Serial Port Drivers.
Windows NT 4.0 start the Setup Program and install the driver. Restart
Windows NT again.
