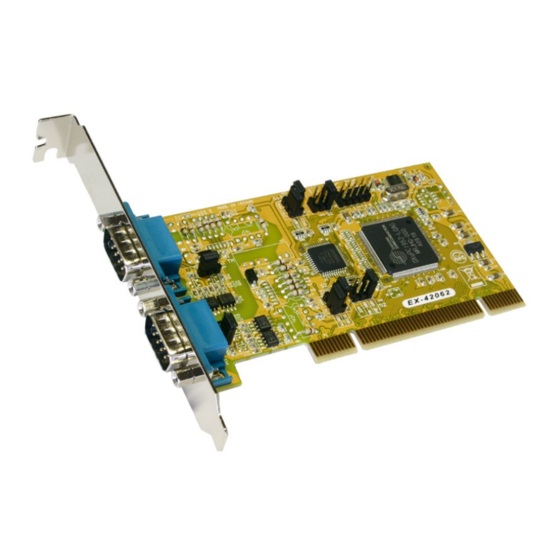

- Seite 1 All manuals and user guides at all-guides.com Bedienungsanleitung Vers. 1.1 / 31.05.13 EX-42062 RS-422/485 Board EX-42062IS RS-422/485 Board Surge Protection & Optical Isolation User Manual...
-
Seite 2: Inhaltsverzeichnis
All manuals and user guides at all-guides.com Deutsch Seriell RS-422/485 PCI Karte Inhaltsverzeichnis Beschreibung ·········································································· 3 Paketinhalt ·············································································· 3 Layout und Jumper Einstellungen ················································ 4 3.1 Layout ······································································································· 4 3.2 Jumper Einstellungen ··················································································· 5 Hardware Installation ································································ 6 Treiber Installation ···································································· 6 5.1 Windows 98/ ME/ 2000/ XP/ Vista/ 7/ 8 und Server 200x ·····································... -
Seite 3: Beschreibung
Deutsch 1. Beschreibung Vielen Dank das Sie sich für die RS-422/485 PCI Karte von EXSYS entschieden ha- ben. Sie ist eine Add-On Karte für den PCI-Bus für Desktop, Workstation oder Server um eine High-Speed Datenübertragung herzustellen. Die Seriellen Ports sind kompa- tible mit dem RS-422/485 Standard. -
Seite 4: Layout Und Jumpereinstellungen
All manuals and user guides at all-guides.com Deutsch Seriell RS-422/485 PCI Karte 3. Layout und Jumpereinstellungen 3.1 Layout JP7: S1 Abschlusswiderstand JP1 RS-485TXD Control JP5: RS-422/485 Ein/Ausschalten JP3 Echo Mode Einstellung Nur für Testzwecke im Werk J3: S1 J4: S2 JP8: JP6: RS-422/485 S2 Abschlusswiderstand... - Seite 5 All manuals and user guides at all-guides.com Seriell RS-422/485 PCI Karte Deutsch 2. Abschlusswiderstand Ein/Aus: Diese Jumper aktiviert oder deaktiviert den 120 Ohm Abschlusswiderstand zwi- schen DATA+ und DATA– des RS-485 Transceiver: JP7 für S1 Port JP8 für S2 Port OFF ON = Abschlusswiderstand Ausgeschaltet (Werkseinstellung) = Abschlusswiderstand Eingeschaltet...
-
Seite 6: Hardware Installation
All manuals and user guides at all-guides.com Deutsch Seriell RS-422/485 PCI Karte 4. Hardware Installation Beachten Sie die folgenden Installationshinweise. Da es grosse Unterschiede bei Com- putern gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau der RS-422/485 PCI Karte geben. Bei Unklarheiten halten Sie sich bitte an die Betriebsanleitung Ihres Computersystem. -
Seite 7: Windows 98/ Me/ 2000/ Xp/ Vista/ 7/ 8 Und Server 200X
All manuals and user guides at all-guides.com Seriell RS-422/485 PCI Karte Deutsch 5.1 Windows 98, ME, 2000, XP, Vista, 7, 8 und Server 2003 / 2008 Windows startet automatisch den Hardwareassistenten um die Treiber zu installie- ren. Klicken sie auf >Weiter<. Legen sie die Treiber CD in Ihr CD-ROM Laufwerk ein (z.B. -
Seite 8: Rs-422 (4 Draht) Verkabelung
All manuals and user guides at all-guides.com Deutsch Seriell RS-422/485 PCI Karte RS-425 (4 Draht) Verkabelung TXD(-) Pin 1 Pin 1 TX(-) TXD(+) Pin 2 Pin 2 TX(+) RXD(+) Pin 3 Pin 3 RX(+) RXD(-) Pin 4 Pin 4 RX(-) Ground Pin 5 Pin 5... -
Seite 9: Description
All manuals and user guides at all-guides.com Seriell RS-422/485 PCI Board English 1. Description Thank you for purchasing this 2-Port RS422/485 Serial PCI Card. It is a universal add on card that connects to a PC or server via the PCI Bus, providing high-speed serial connectivity. -
Seite 10: Layout And Jumpersetting
All manuals and user guides at all-guides.com English Seriell RS-422/485 PCI Board 3. Layout and Jumpersetting 3.1 Layout JP7: S1 Terminator JP1 RS-485TXD Control JP5: RS-422/485 Enable/Disable JP3 Echo Mode Setting Factory Use Only J3: S1 J4: S2 JP8: JP6: RS-422/485 S2 Terminator JP2 RS-485TXD Control Mode Setting... - Seite 11 All manuals and user guides at all-guides.com Seriell RS-422/485 PCI Board English 2. Termination Resistor Enable/Disable: This jumper enables/disables the 120 Ohm termination resistor between DATA+ and DATA- of the RS485 transceiver: JP7 for S1 Port JP8 for S2 Port OFF ON Termination Resistor Disabled (Default) Termination Resistor Enabled...
-
Seite 12: Hardware Installation
All manuals and user guides at all-guides.com English Seriell RS-422/485 PCI Board 4. Hardware Installation • Turn the system power OFF before installation! • Use static electricity discharge precautions. • Remove the chassis cover from your computer • Locate an unused PCI slot (typically white or ivory) and remove the correspond- ing slot cover from computer chassis. -
Seite 13: Windows 98/ Me/ 2000/ Xp/ Vista/ 7/ 8 Und Server 200X
All manuals and user guides at all-guides.com Seriell RS-422/485 PCI Board English 5.1 Windows 98, ME, 2000, XP, Vista, 7, 8 and Server 2003 / 2008 1. When the system is powered, Windows will invoke Windows’ New Hardware Wizard. Click〝 Next 〞to continue, select〝 Install from a list or specific loca- tion（Advanced）... -
Seite 14: Rs-422 (4-Wire) Wiring
All manuals and user guides at all-guides.com English Seriell RS-422/485 PCI Board RS-425 (4-wire) Cable Wiring TXD(-) Pin 1 Pin 1 TX(-) TXD(+) Pin 2 Pin 2 TX(+) RXD(+) Pin 3 Pin 3 RX(+) RXD(-) Pin 4 Pin 4 RX(-) Ground Pin 5 Pin 5... - Seite 15 All manuals and user guides at all-guides.com...
- Seite 16 All manuals and user guides at all-guides.com...
