Deutsch

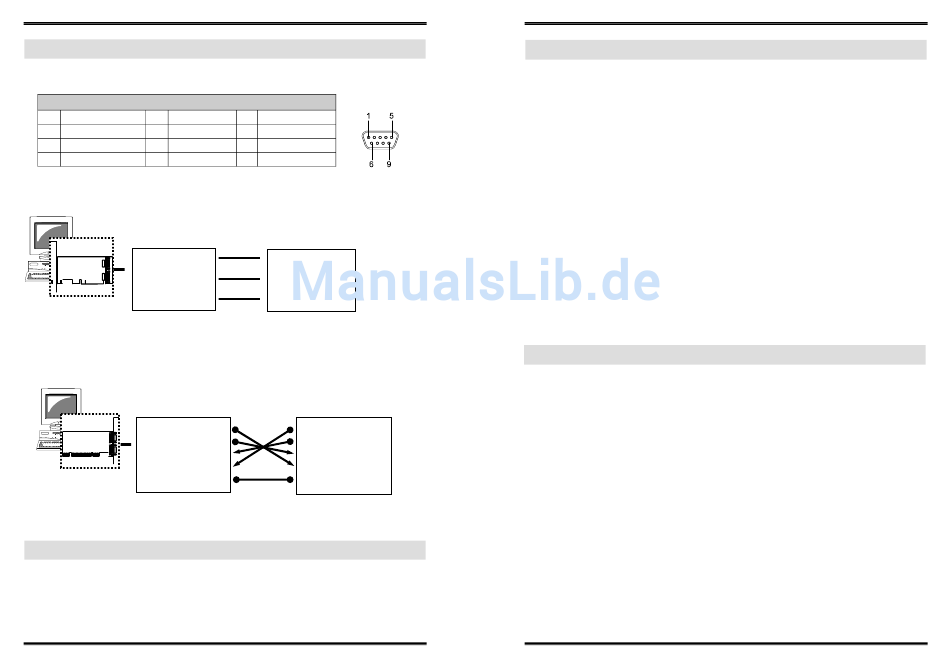

6. Verdrahtungsübersicht
6.1

S1 und S2 Anschlussbelegung

9 Pin D-SUB Stecker (S1 und S2)
Pin Signal Pin Signal
1 TXD- (DATA-) 4 RXD-
2 TXD+ (DATA+) 5 GND
3 RXD+ 6
6.2

RS-485 (2 Draht) Verkabelung

DATA(-) Pin 1
DATA(+) Pin 2
Ground Pin 5
RS-422/485 PCI Karte
6.3 RS-425 (4 Draht) Verkabelung
TXD(- - - - ) ) ) ) TXD( TXD( TXD(
TXD(+) TXD(+) TXD(+) TXD(+)
RXD(+) RXD(+) RXD(+) RXD(+)
RXD( RXD(- - - - ) ) ) ) RXD( RXD(
Ground Ground Ground Ground
RS-422/485 PCI Karte

7. Technische Daten

Stromaufnahme: 5V DC, 450mA (max)
0 0
Betriebstemperatur: 0 bis 55 C (32
Betriebs Luftfeuchtigkeit: 5% bis 95% RH
Seriell RS-422/485 PCI Karte
DB 9M DB 9M DB 9M DB 9M
Pin Signal
7
8
9
Pin 1 DATA (-)
Pin 2 DATA (+)
Pin 5 Ground
RS-485 Geräte
Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 Pin 1 TX( TX(- - - - ) ) ) ) TX( TX(
Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 Pin 2 TX(+) TX(+) TX(+) TX(+)
Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 Pin 3 RX(+) RX(+) RX(+) RX(+)
Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 Pin 4 RX( RX(- - - - ) ) ) ) RX( RX(
Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Pin 5 Ground Ground Ground Ground
RS-485 Geräte
0 0
bis 131 F)
8
Seriell RS-422/485 PCI Board

1. Description

Thank you for purchasing this 2-Port RS422/485 Serial PCI Card. It is a universal add
on card that connects to a PC or server via the PCI Bus, providing high-speed serial
connectivity. The serial ports are fully compatible with RS422/485 standard by the bun-
dled Serial COM port drivers. Each port can be set at any mode (RS485 2-wire, RS485
4-wire and RS422) and operate simultaneously.
Feature:
•
Support PCI Bus Specification 3.0 and Power Management 1.1
•
128-byte On-Chip FIFO and Arbitrary Trigger Levels and Interrupts, Automatic
Hardware/Software Flow Control
•
Up to 921.6Kbps Baud Rate
•
5,6,7,8,9-bits Data Framing
•
Support Echo Mode
•
Universal PCI compatible for 3.3/5V PCI and PCI-X Bus
•
15KV ESD Surge Protection and 2500Vrms Optical Isolation Protection
(only for EX-42372IS)
•
Support Win98/ME, NT4.0, 2000, XP(32/64bit),Vista(32/64bit)
Win7(32/64bit), Win8(32/64bit) and Linux

2. Packet Content

Before you install the RS-422/485 PCI card in your PC, check the contents of delivery:
•
1 x RS-422/485 Serial PCI card
•
1 x Octopus cable with 2 x 9 pin male connector
•
1 x LowProfile bracket for small computer case
•
1 x Driver CD
•
1 x User Manual
•
Optional 5 Pin Terminal Block (EX-47999)
English
