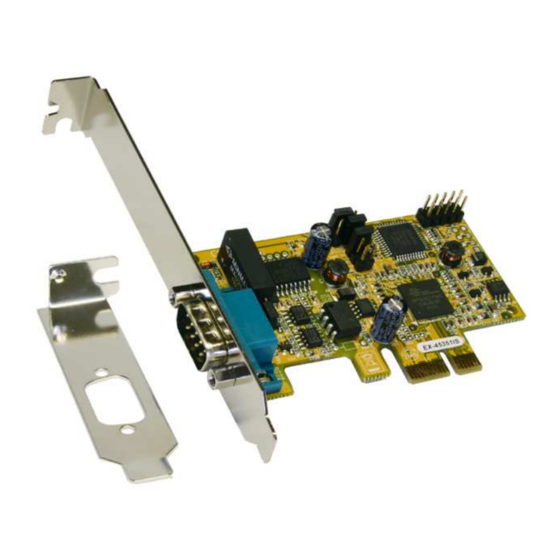

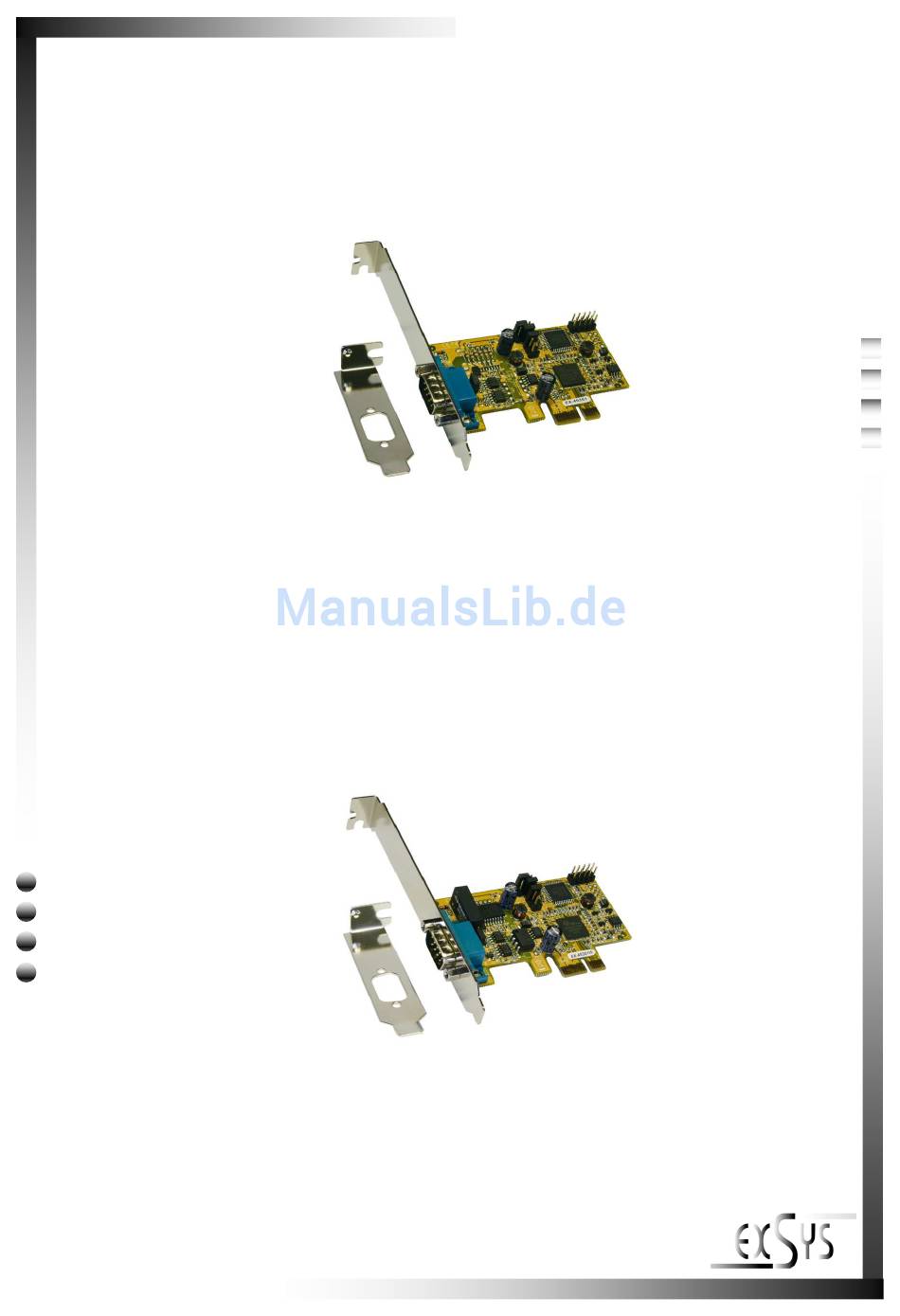

- Seite 1 Bedienungsanleitung Vers. 1.1 / 29.02.12 EX-45351 RS-422/485 PCIe Board EX-45351IS RS-422/485 PCIe Board Surge Protection & Optical Isolation User Manual...
-
Seite 2: Inhaltsverzeichnis
Deutsch Seriell RS-422/485 PCIe Karte Inhaltsverzeichnis Beschreibung ··························································································· 3 Paketinhalt ······························································································· 3 Layout und Jumper Einstellungen ··························································· 4 3.1 Layout ······················································································································· 4 3.2 Jumper Einstellungen ································································································ 4 Hardware Installation ··············································································· 6 Treiber Installation ··················································································· 7 5.1 Windows 98 / ME / 2000 / XP/ Vista und 2003 Server ··············································· 7 Verdrahtungsübersicht ·············································································... -
Seite 3: Beschreibung
Deutsch 1. Beschreibung Vielen Dank das Sie sich für die RS-422/485 PCIe Karte von EXSYS entschieden ha- ben. Sie ist eine Add-On Karte für den PCI-Express-Bus für Desktop, Workstation oder Server um eine High-Speed Datenübertragung herzustellen. Der Serielle Port ist kom- patible mit dem RS-422/485 Standard. -
Seite 4: Layout Und Jumpereinstellungen
Deutsch Seriell RS-422/485 PCIe Karte 3. Layout und Jumpereinstellungen 3.1 Layout JP5: Abschlusswiderstand Ein/Ausschalten JP2, JP4: RS-485TXD Control Nur für Testzwecke im Werk DB9 Stecker JP3: RS-422/485 RS-422/485 Port Mode Einstellung 3.2 Jumper-Einstellung Es gibt vier Jumper um den RS-422/485 Port einzustellen 1. - Seite 5 Seriell RS-422/485 PCIe Karte Deutsch 2. Abschlusswiderstand Ein/Aus (JP5): Diese Jumper aktiviert oder deaktiviert den 120 Ohm Abschlusswiderstand zwi- schen DATA+ und DATA– des RS-485 Transceiver: OFF ON = Abschlusswiderstand Ausgeschaltet (Werkseinstellung) = Abschlusswiderstand Eingeschaltet 3. Echo oder No Echo Einstellung (JP4): Der “Echo Mode”...
-
Seite 6: Hardware Installation
Deutsch Seriell RS-422/485 PCIe Karte 4. Hardware Installation Beachten Sie die folgenden Installationshinweise. Da es grosse Unterschiede bei Com- putern gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau der RS-422/485 PCI Karte geben. Bei Unklarheiten halten Sie sich bitte an die Betriebsanleitung Ihres Computersystem. -
Seite 7: Treiber Installation
Seriell RS-422/485 PCIe Karte Deutsch 5. Treiber Installation Anmerkung! Bitte lassen Sie Windows nicht automatisch nach den Treibern suchen, da dies wegen den INF Files zu Problemen führen könnte. Stattdessen durchsuchen sie manuell den Treiber an der richtigen Stelle (Ordner) auf der mitgelieferten CD. Bild 1 Die Treiber finden Sie in dem Order für das installierte Be-... -
Seite 8: Verdrahtungsübersicht
Deutsch Seriell RS-422/485 PCIe Karte 6. Verdrahtungsübersicht Anschlussbelegung DB 9M DB 9M DB 9M DB 9M 9 Pin D-SUB Stecker (S1 und S2) Pin Signal Pin Signal Pin Signal TXD- (DATA-) RXD- TXD+ (DATA+) RXD+ RS-485 (2 Draht) Verkabelung DATA(-) Pin 1 Pin 1 DATA (-) -
Seite 9: Description
Seriell RS-422/485 PCIe Board English 1. Description Thank you for purchasing this 1-Port RS422/485 Serial PCI-Express Card. It is a uni- versal add on card that connects to a PC or server via the PCIe Bus, providing high- speed serial connectivity. The serial ports are fully compatible with RS422/485 stand- ard by the bundled Serial COM port drivers. -
Seite 10: Layout And Jumpersetting
English Seriell RS-422/485 PCIe Board 3. Layout and Jumpersetting 3.1 Layout Layout Layout Layout JP5: Terminator Enable / Disable JP2, JP4: RS-485TXD Control Factory Use Only DB9 male JP3: RS-422/485 RS-422/485 port Mode Selector 3.2 Jumper setting Jumper setting Jumper setting Jumper setting There are 4 jumpers listed as following to set the settings for the RS-422/485 port: 1. - Seite 11 Seriell RS-422/485 PCIe Board English 2. Termination Resistor Enable/Disable (JP5): This jumper enables/disables the 120 Ohm termination resistor between DATA+ and DATA- of the RS485 transceiver: OFF ON Termination Resistor Disabled (Default) Termination Resistor Enabled 3. Echo or No Echo Settings (JP4): This jumper is to set the transmission data will be echoed back or not.
-
Seite 12: Hardware Installation
English Seriell RS-422/485 PCIe Board 4. Hardware Installation • Turn the system power OFF before installation! • Use static electricity discharge precautions. • Remove the chassis cover from your computer • Locate an unused PCI-Express slot (typically white or ivory) and remove the corresponding slot cover from computer chassis. -
Seite 13: Driver Installation
Seriell RS-422/485 PCIe Board English 5. Driver Installation Note: PLEASE DO NOT LET WINDOWS AUTO SEARCH THE DRIVERS ON THE CD, it will cause problems because the INF files will be conflict in this case. Instead, please browse to the correct location (folder) manually to make sure the correct drivers are chosen and installed correctly. -
Seite 14: Rs-485 (2-Wire) Wiring
English Seriell RS-422/485 PCIe Board 6. Pin Assignments and Cable Wiring Pin connection DB 9M 9 Pin D-SUB male connector Pin Signal Pin Signal Pin Signal TXD- (DATA-) RXD- TXD+ (DATA+) RXD+ RS-485 (2-wire) Cable Wiring Pin 1 DATA (-) DATA(-) Pin 1 Pin 2...
