Installation - HomeMatic HM-Sec-SC-2 Montageanleitung

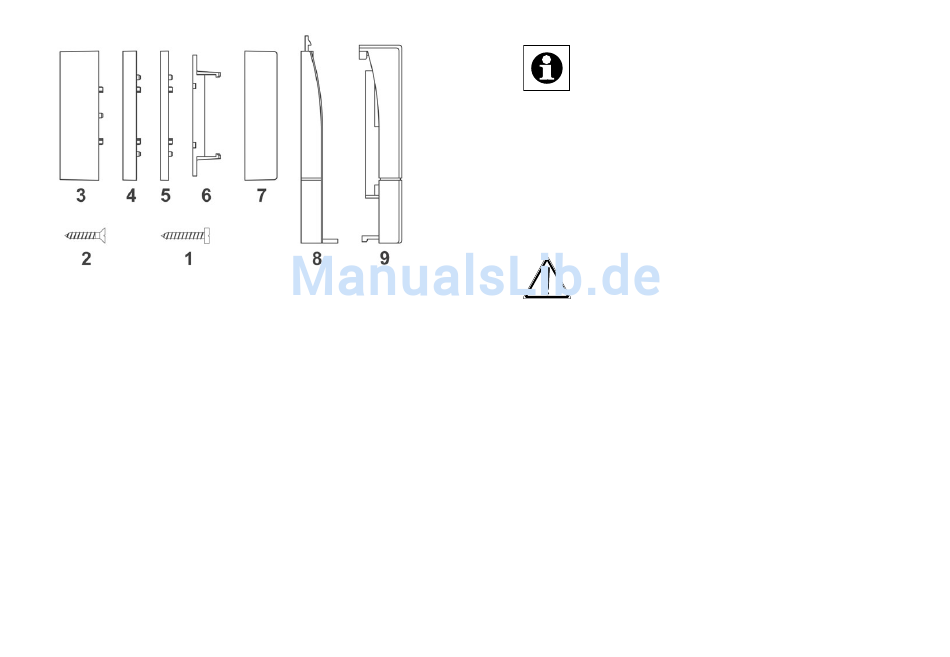

(1) Screws 2.2 x 16 (4x)
(2) Screws 2.2 x 13 (2x)
Spacer-piece for height correction of magnets
(3) Spacer-pieces 14.5 mm
(4) Spacer-pieces 5 mm
(5) Spacer-pieces 3 mm
(6) Magnet
(7) Magnet cover
(8) Wall holder
(9) Electronics unit
38

6.2 Installation

Please read this section completely before star-
ting any installation work!
You can use the screws provided to fasten the shutter
contact or use the provided doubled-sided tape as
an alternative. When fastening the with double-sided
tape, no additional spacer-pieces may be used for
reasons of stability.
In certain cases, damage may be caused to the
doors and windows when installing with the
double-sided tape.
For the installation, please proceed as follows:
• During the installation, a part of the shutter
contact (magnet or electronics unit) is installed
on the moveable part (door-leaf or window-case-
ment), the other on the stationary part (frame).
• Based on the installation conditions you must
device where to mount which part. In this case,
it is important whether the magnet is mounted
vertically, horizontally or to the right or left of the
electronics unit.
