4. Installation
Flexible hose
Hydrotap
appliance
Tap
Tray
Spacer
Spacer
threaded
rod
Drain pipe
Washer
S/S washer
and fixing
Spider clamp
nut
Fixing nut
Note: Additional ventilation must be ensured if the temperature in the base unit
exceeds 35 °C.
1. Position the undersink unit as close to the tap as possible.
2. Connect the water inlet to the angle valve (not supplied). Use the flexible hose
supplied and the adapter if necessary to make this connection.
Adapter
3. Connect the tap hoses to the undersink unit. Ensure there is a constant fall from the
tap down to the undersink unit. Trim the hoses to avoid loops and kinks. The hoses
must not be lengthened.
a. Connect the blue marked silicone hose to the cold water connection.
Angle
valve
4. Connect the signal leads of the tap and the undersink unit. Attach the plug
connection at a location away from any water splashes.

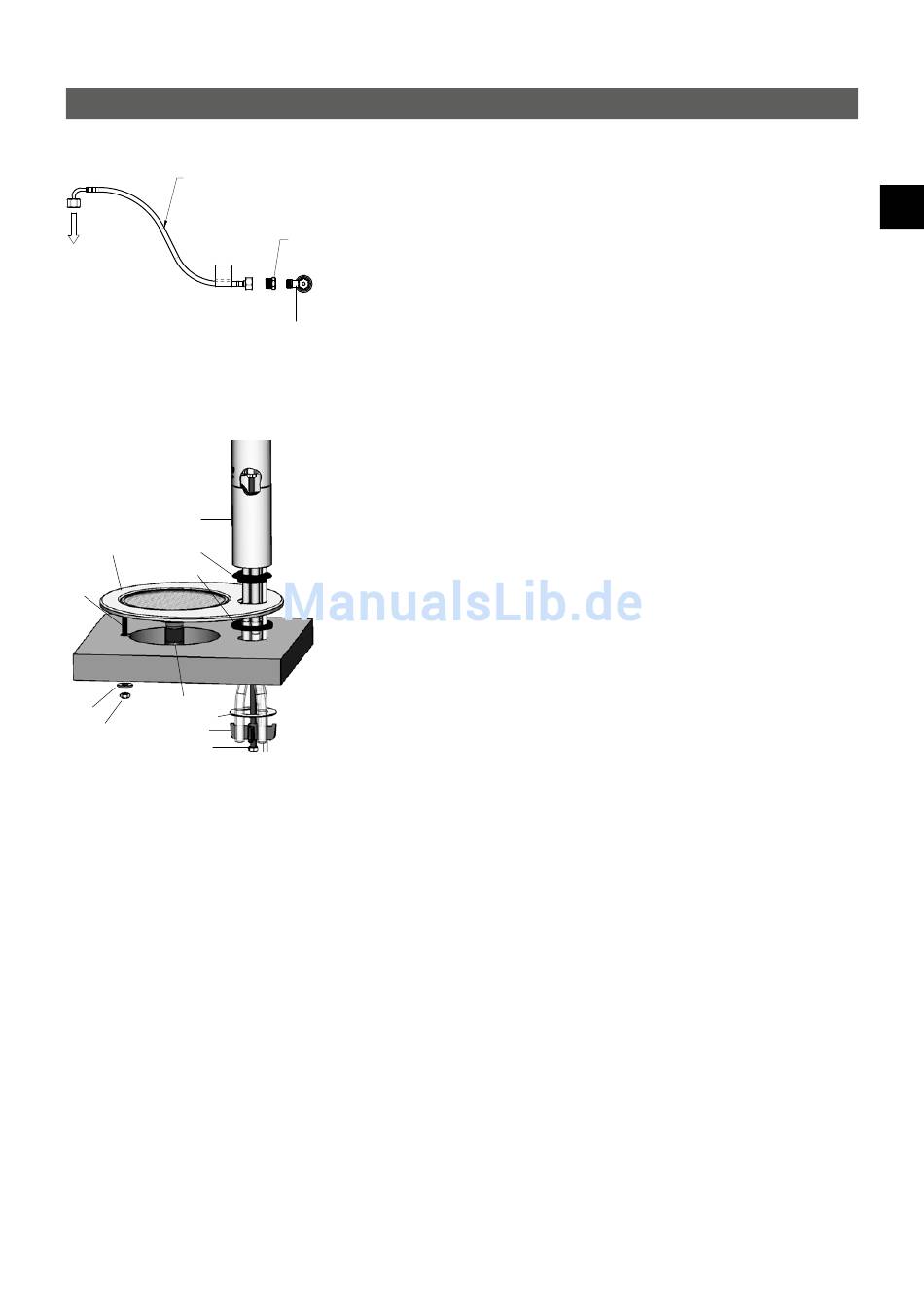

Optional: Installing the tray

The tray (article number: 4100-44111) is an accessory which can be used to install the
tap independently of a kitchen sink.
1. Ensure that a water supply, a drain, a socket fitted with at least a 10 A fuse and
enough room for the undersink unit are all available at the tray installation location.
2. Place the template supplied over the tray installation location.
3. Cut out the holes as indicated on the template.
4. Insert the tray. Place the plastic spacer between the worktop and the tray at the
35 mm hole. Working from below, fasten the tray to the threaded rod using the
washer and fixing nut supplied.
5. Install the tap as described from point 3 onwards of 'Installing the tap'.
6. If the drain bend is facing the wrong way, slacken off the fastening nut above the
bend, turn it to the correct position and then tighten up the fastening nut again.
7. Connect the drain bend to a siphon connecting sleeve, using a 22 mm diameter
hose. If no siphon connecting sleeve is available, use the snap connecting sleeve.
a. Place the snap connecting sleeve on the side of the siphon facing the sink. Drill a
13 mm diameter hole in the drain pipe behind the snap connecting sleeve for a
drain connection. Use a suitable sealant to make a watertight seal between the
snap connecting sleeve and the drain pipe.

Commissioning

1. Before using the unit for the first time, flush through the connecting pipes and hoses
thoroughly. To flush, detach the flexible hose from the water inlet of the undersink
unit and hold it over a drain or bucket. Turn on the water and allow it to run for
several minutes. Then reattach the hose to the water inlet of the undersink unit and
check the installation for leaks.
2. If no leaks are found, plug the plug into the socket and press the On switch on the
right-hand side of the undersink unit to activate the unit.
3. A prompt will appear on the display asking you to flush the filter. A container with a
capacity of about 10 litres will be needed to collect the water.
a. Open the service hatch on the front of the unit. Place the end of the plastic hose
in the collecting container and open the valve on the hose.
b. Touch 'Start' to start flushing.
c. Allow about 10 litres of water to drain out and then touch 'Stop' to stop flushing.
Close the valve on the hose and touch 'Next'.
4. The unit will then be in normal operating mode.
5. Register the appliance with the customer service department online at
www.clage.com.
21
CLAGE
EN
