B U D D Y B O X O p e r a t i n g M a n u a l

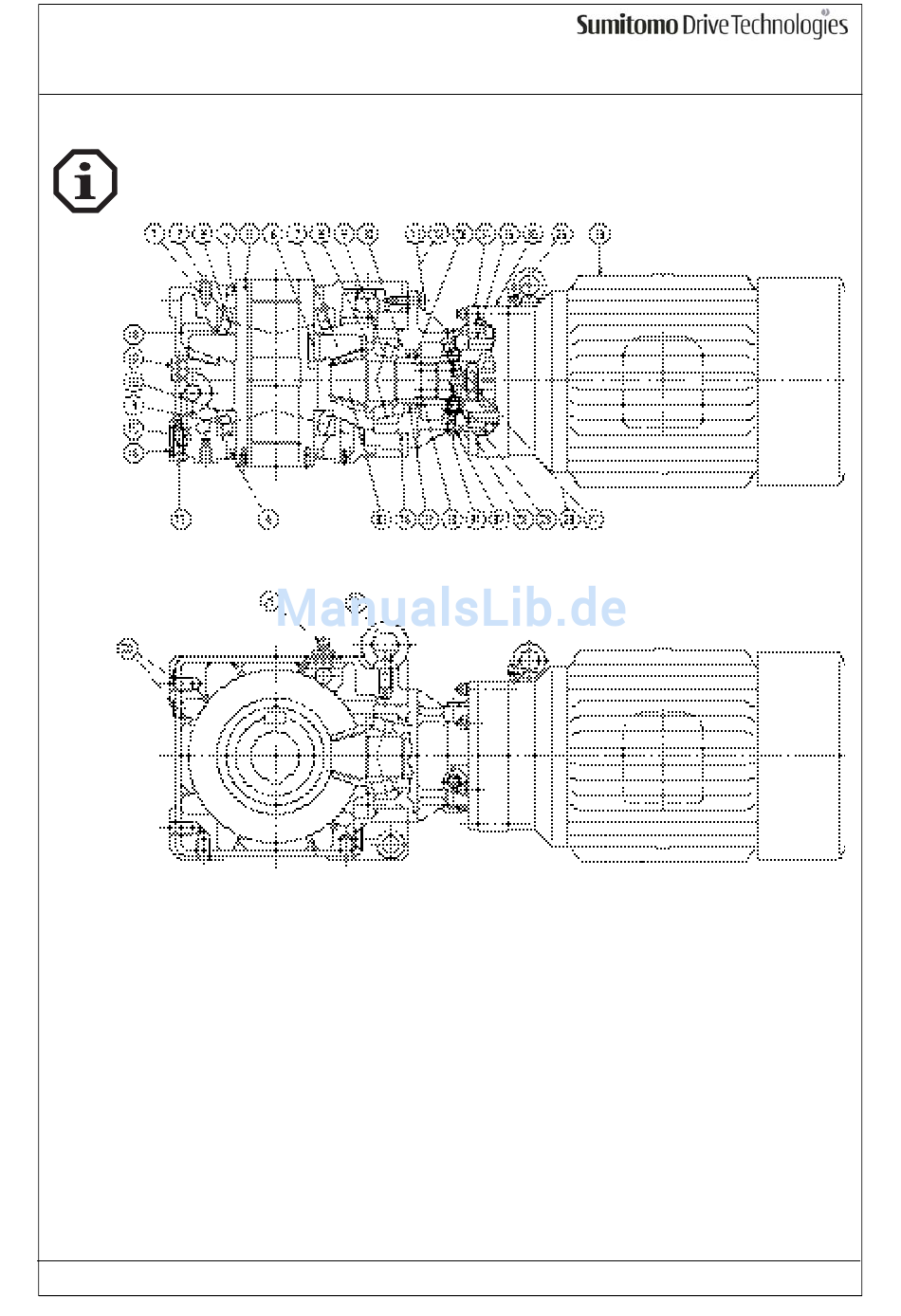

11 . Spa r e pa r ts Bevelbuddybox
1 Casing
2 Shim
3 Taper roller bearing
4 Oil seal
5 Hollow output shaft
6 Key
7 Bevel gear
8 Nilos ring
9 Taper roller bearing
10 Shim
11 Hex. head bolt
12 Spring washer
BB_D_GB_09_06 NO. 991002
13 Motor
14 O-ring
15 O-ring
16 Output cover
17 Hex. head bolt
18 Nilos ring
19 Oil gauge
20 Hex. socket head plug
21 Air breather
23 Eye bolt
24 Oil gauge
25 Air breather
Issue:
26 Collar
27 fillister socket head screw
28 Nord lock washer
29 End plate
30 Shim
31 Hex. socket head plug
32 Oil seal
33 Bevel pinion shaft
34 Flanged casing
35 Pin carrier
36 Ring gear housing
09/2006 Page 15
