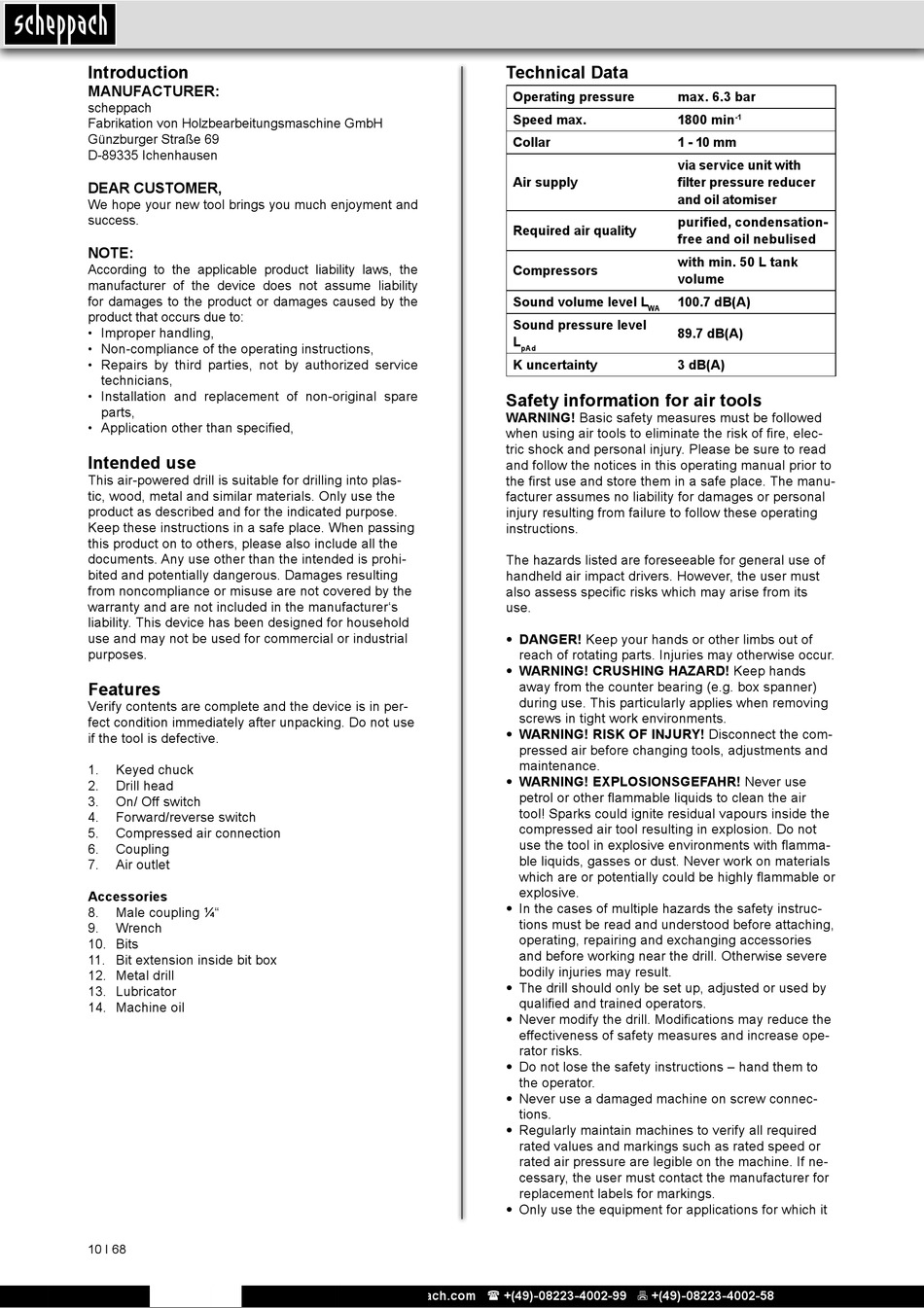

Introduction
MANUFACTURER:
scheppach
Fabrikation von Holzbearbeitungsmaschine GmbH
Günzburger Straße 69
D-89335 Ichenhausen
DEAR CUSTOMER,
We hope your new tool brings you much enjoyment and
success.
NOTE:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by the
product that occurs due to:
• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service
technicians,
• Installation and replacement of non-original spare
parts,
• Application other than specified,
Intended use
This air-powered drill is suitable for drilling into plas-
tic, wood, metal and similar materials. Only use the
product as described and for the indicated purpose.
Keep these instructions in a safe place. When passing
this product on to others, please also include all the
documents. Any use other than the intended is prohi-
bited and potentially dangerous. Damages resulting
from noncompliance or misuse are not covered by the
warranty and are not included in the manufacturer's
liability. This device has been designed for household
use and may not be used for commercial or industrial
purposes.
Features
Verify contents are complete and the device is in per-
fect condition immediately after unpacking. Do not use
if the tool is defective.
1. Keyed chuck
2. Drill head
3. On/ Off switch
4. Forward/reverse switch
5. Compressed air connection
6. Coupling
7. Air outlet
Accessories
8. Male coupling ¼"
9. Wrench
10. Bits
11. Bit extension inside bit box
12. Metal drill
13. Lubricator
14. Machine oil
10 І 68
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
Technical Data
Operating pressure max. 6.3 bar
Speed max. 1800 min
Collar 1 - 10 mm
via service unit with
Air supply filter pressure reducer
and oil atomiser
purified, condensation-
Required air quality
free and oil nebulised
with min. 50 L tank
Compressors
volume
Sound volume level L 100.7 dB(A)
WA
Sound pressure level
89.7 dB(A)
L
pAd
K uncertainty 3 dB(A)
Safety information for air tools
WARNING! Basic safety measures must be followed
when using air tools to eliminate the risk of fire, elec-
tric shock and personal injury. Please be sure to read
and follow the notices in this operating manual prior to
the first use and store them in a safe place. The manu-
facturer assumes no liability for damages or personal
injury resulting from failure to follow these operating
instructions.
The hazards listed are foreseeable for general use of
handheld air impact drivers. However, the user must
also assess specific risks which may arise from its
use.
• DANGER! Keep your hands or other limbs out of
reach of rotating parts. Injuries may otherwise occur.
• WARNING! CRUSHING HAZARD! Keep hands
away from the counter bearing (e.g. box spanner)
during use. This particularly applies when removing
screws in tight work environments.
• WARNING! RISK OF INJURY! Disconnect the com-
pressed air before changing tools, adjustments and
maintenance.
• WARNING! EXPLOSIONSGEFAHR! Never use
petrol or other flammable liquids to clean the air
tool! Sparks could ignite residual vapours inside the
compressed air tool resulting in explosion. Do not
use the tool in explosive environments with flamma-
ble liquids, gasses or dust. Never work on materials
which are or potentially could be highly flammable or
explosive.
• In the cases of multiple hazards the safety instruc-
tions must be read and understood before attaching,
operating, repairing and exchanging accessories
and before working near the drill. Otherwise severe
bodily injuries may result.
• The drill should only be set up, adjusted or used by
qualified and trained operators.
• Never modify the drill. Modifications may reduce the
effectiveness of safety measures and increase ope-
rator risks.
• Do not lose the safety instructions – hand them to
the operator.
• Never use a damaged machine on screw connec-
tions.
• Regularly maintain machines to verify all required
rated values and markings such as rated speed or
rated air pressure are legible on the machine. If ne-
cessary, the user must contact the manufacturer for
replacement labels for markings.
• Only use the equipment for applications for which it
