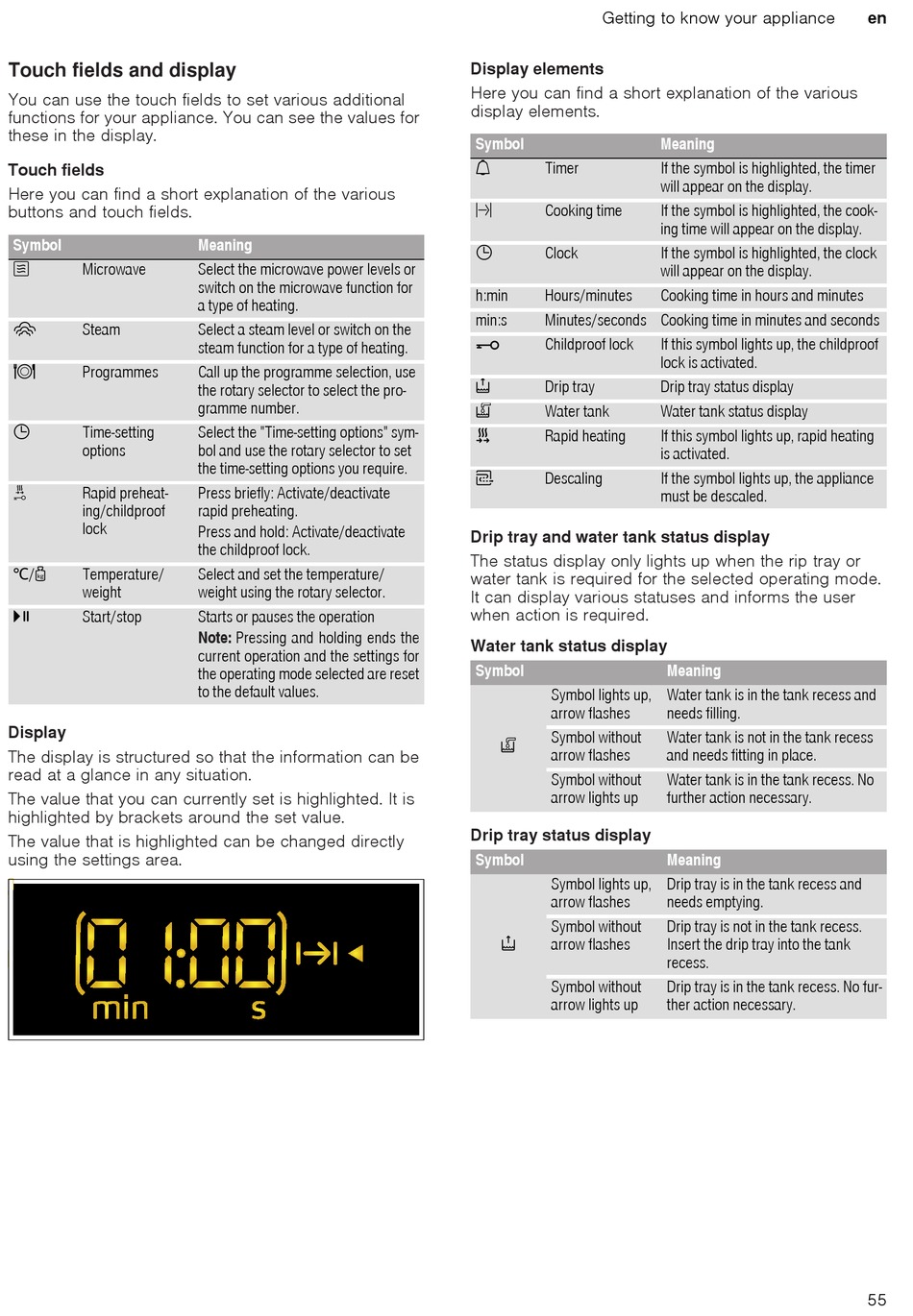

Touch fields and display

You can use the touch fields to set various additional
functions for your appliance. You can see the values for
these in the display.
Touch fields
Here you can find a short explanation of the various
buttons and touch fields.
Symbol
Microwave
!
Steam
É
Programmes
=
Time-setting
0
options
Rapid preheat-
i
ing/childproof
lock
Temperature/
û/A
weight
Start/stop
@
--------
Display
The display is structured so that the information can be
read at a glance in any situation.
The value that you can currently set is highlighted. It is
highlighted by brackets around the set value.
The value that is highlighted can be changed directly
using the settings area.
Meaning
Select the microwave power levels or
switch on the microwave function for
a type of heating.
Select a steam level or switch on the
steam function for a type of heating.
Call up the programme selection, use
the rotary selector to select the pro-
gramme number.
Select the "Time-setting options" sym-
bol and use the rotary selector to set
the time-setting options you require.
Press briefly: Activate/deactivate
rapid preheating.
Press and hold: Activate/deactivate
the childproof lock.
Select and set the temperature/
weight using the rotary selector.
Starts or pauses the operation
Note: Pressing and holding ends the
current operation and the settings for
the operating mode selected are reset
to the default values.
Getting to know your appliance

Display elements

Here you can find a short explanation of the various
display elements.
Symbol
Timer
Q
Cooking time
+
Clock
0
h:min Hours/minutes
min:s Minutes/seconds Cooking time in minutes and seconds
Childproof lock
@
Drip tray
D
Water tank
9
Rapid heating
d
Descaling
$
--------
Drip tray and water tank status display
The status display only lights up when the rip tray or
water tank is required for the selected operating mode.
It can display various statuses and informs the user
when action is required.
Water tank status display
Symbol
Symbol lights up,
arrow flashes
Symbol without
9
arrow flashes
Symbol without
arrow lights up
Drip tray status display
Symbol
Symbol lights up,
arrow flashes
Symbol without
arrow flashes
D
Symbol without
arrow lights up
Meaning
If the symbol is highlighted, the timer
will appear on the display.
If the symbol is highlighted, the cook-
ing time will appear on the display.
If the symbol is highlighted, the clock
will appear on the display.
Cooking time in hours and minutes
If this symbol lights up, the childproof
lock is activated.
Drip tray status display
Water tank status display
If this symbol lights up, rapid heating
is activated.
If the symbol lights up, the appliance
must be descaled.
Meaning
Water tank is in the tank recess and
needs filling.
Water tank is not in the tank recess
and needs fitting in place.
Water tank is in the tank recess. No
further action necessary.
Meaning
Drip tray is in the tank recess and
needs emptying.
Drip tray is not in the tank recess.
Insert the drip tray into the tank
recess.
Drip tray is in the tank recess. No fur-
ther action necessary.
