Operation

The UPS has a four-button, two-line graphical LCD with backlight. It provides useful
information about the UPS itself, load status, events, measurements, and settings
(see Figure 7).
Power On Indicator
Output Voltage
and Frequency
Current Operating
Mode

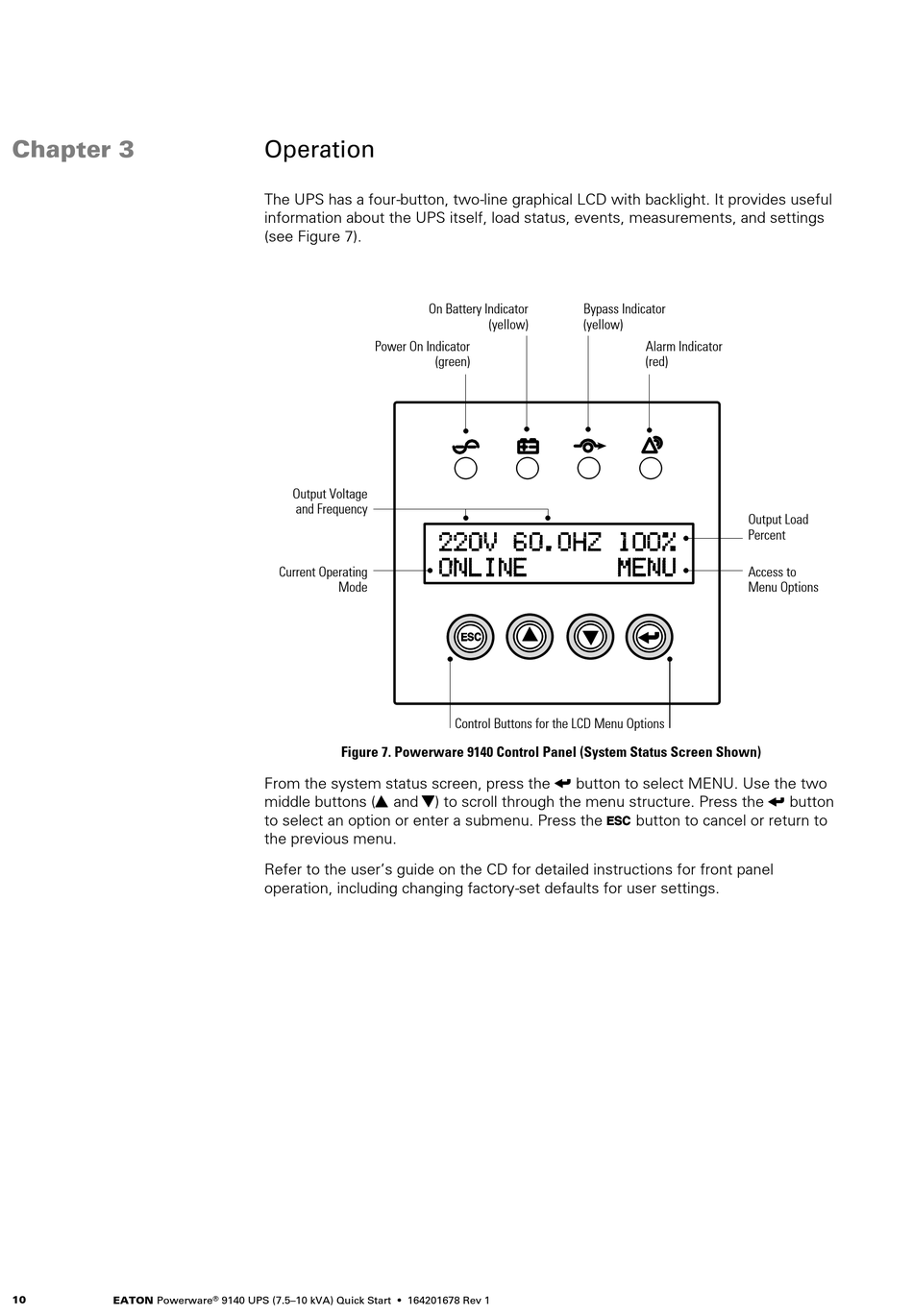

Figure 7. Powerware 9140 Control Panel (System Status Screen Shown)
From the system status screen, press the
middle buttons (
to select an option or enter a submenu. Press the
the previous menu.
Refer to the user's guide on the CD for detailed instructions for front panel
operation, including changing factory-set defaults for user settings.
®
