Circuit Diagram - Dräger Interlock 5000 Installationsanweisung

Installation
3.4.3

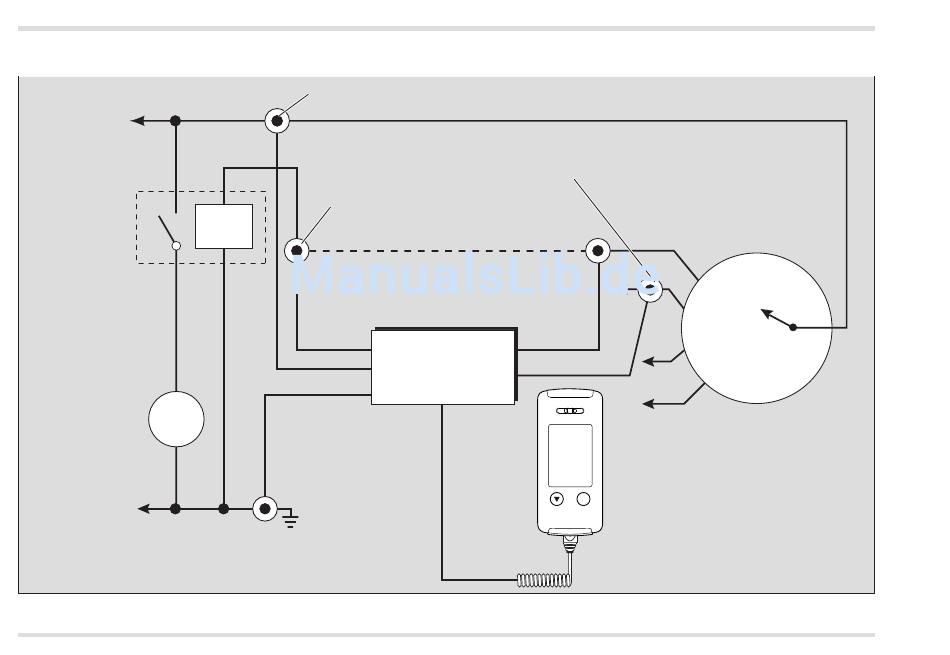

Circuit diagram

V +
Starter relay
M
Starter motor
V -
26
Positive supply termination (Terminal 30)
Starter relay termination
Break
brown
Dräger
red ®
Interlock 5000/7000
Control box
black
Ground termination
(Terminal 31)
Ignition termination
Ignition switch
Starter relay
(Terminal 50)
Ignition
(Terminal +15, Position 2)
grey
Accessories
blue
Off
®
Dräger Interlock 5000/7000
Handset
OK
M
Dräger Interlock 5000/7000
Plus
Power
00233352_en.eps
