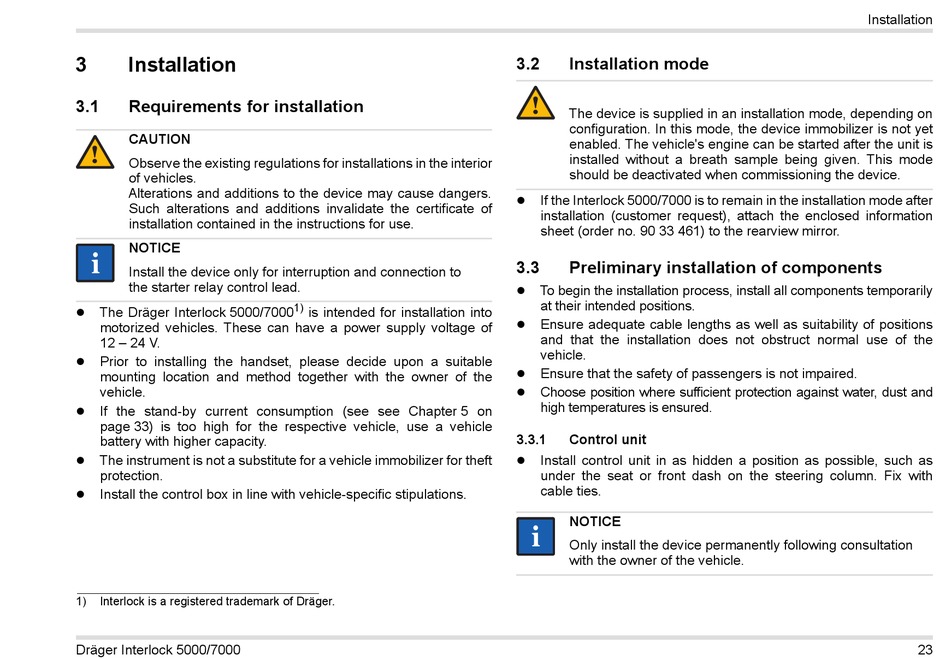

Installation

3.1

Requirements for installation

CAUTION
!
Observe the existing regulations for installations in the interior
of vehicles.
Alterations and additions to the device may cause dangers.
Such alterations and additions invalidate the certificate of
installation contained in the instructions for use.
NOTICE
i
i
Install the device only for interruption and connection to
the starter relay control lead.
The Dräger Interlock 5000/7000
motorized vehicles. These can have a power supply voltage of
12 – 24 V.
Prior to installing the handset, please decide upon a suitable
mounting location and method together with the owner of the
vehicle.
If the stand-by current consumption (see see Chapter 5 on
page 33) is too high for the respective vehicle, use a vehicle
battery with higher capacity.
The instrument is not a substitute for a vehicle immobilizer for theft
protection.
Install the control box in line with vehicle-specific stipulations.
1)
Interlock is a registered trademark of Dräger.
Dräger Interlock 5000/7000
1)
is intended for installation into
3.2

Installation mode

CAUTION
!
The device is supplied in an installation mode, depending on
configuration. In this mode, the device immobilizer is not yet
enabled. The vehicle's engine can be started after the unit is
installed without a breath sample being given. This mode
should be deactivated when commissioning the device.
If the Interlock 5000/7000 is to remain in the installation mode after
installation (customer request), attach the enclosed information
sheet (order no. 90 33 461) to the rearview mirror.
3.3

Preliminary installation of components

To begin the installation process, install all components temporarily
at their intended positions.
Ensure adequate cable lengths as well as suitability of positions
and that the installation does not obstruct normal use of the
vehicle.
Ensure that the safety of passengers is not impaired.
Choose position where sufficient protection against water, dust and
high temperatures is ensured.
3.3.1

Control unit

Install control unit in as hidden a position as possible, such as
under the seat or front dash on the steering column. Fix with
cable ties.
NOTICE
i
i
Only install the device permanently following consultation
with the owner of the vehicle.
Installation
23
