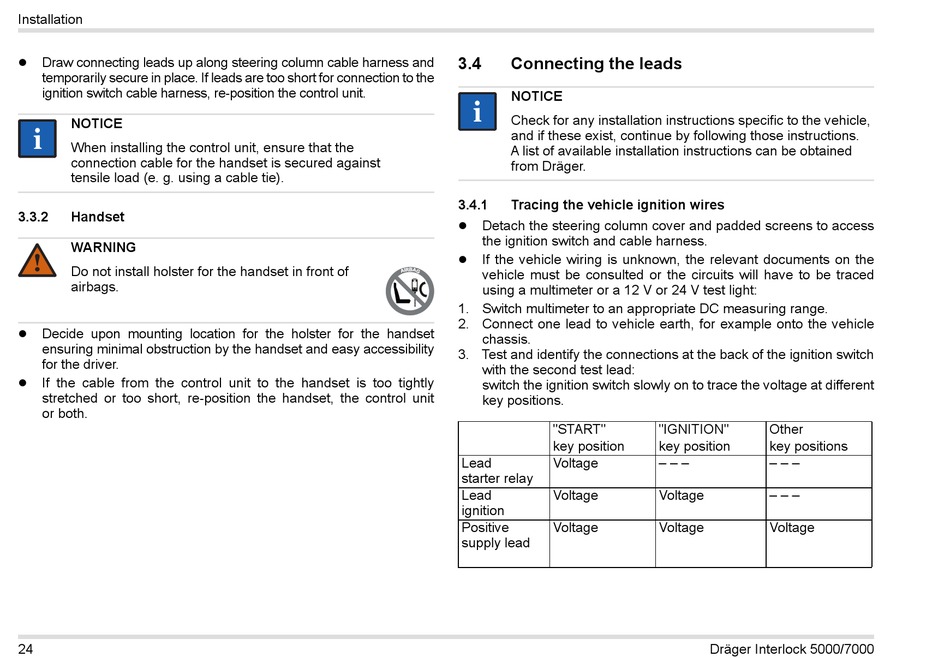

Installation
Draw connecting leads up along steering column cable harness and

temporarily secure in place. If leads are too short for connection to the
ignition switch cable harness, re-position the control unit.
NOTICE
i
i
When installing the control unit, ensure that the
connection cable for the handset is secured against
tensile load (e. g. using a cable tie).
3.3.2

Handset

WARNING
!
Do not install holster for the handset in front of
airbags.
Decide upon mounting location for the holster for the handset

ensuring minimal obstruction by the handset and easy accessibility
for the driver.
If the cable from the control unit to the handset is too tightly

stretched or too short, re-position the handset, the control unit
or both.
24
3.4

Connecting the leads

NOTICE
i i
Check for any installation instructions specific to the vehicle,
and if these exist, continue by following those instructions.
A list of available installation instructions can be obtained
from Dräger.
3.4.1

Tracing the vehicle ignition wires

Detach the steering column cover and padded screens to access

the ignition switch and cable harness.
If the vehicle wiring is unknown, the relevant documents on the

vehicle must be consulted or the circuits will have to be traced
using a multimeter or a 12 V or 24 V test light:
1. Switch multimeter to an appropriate DC measuring range.
2. Connect one lead to vehicle earth, for example onto the vehicle
chassis.
3. Test and identify the connections at the back of the ignition switch
with the second test lead:
switch the ignition switch slowly on to trace the voltage at different
key positions.
"START"
key position
Lead Voltage
starter relay
Lead Voltage
ignition
Positive Voltage
supply lead
"IGNITION" Other
key position key positions
– – – – – –
Voltage – – –
Voltage Voltage
