MICRO-EPSILON wireSENSOR P115-M Betriebsanleitung Seite 44

Anhang | Drawings and References for Attachment

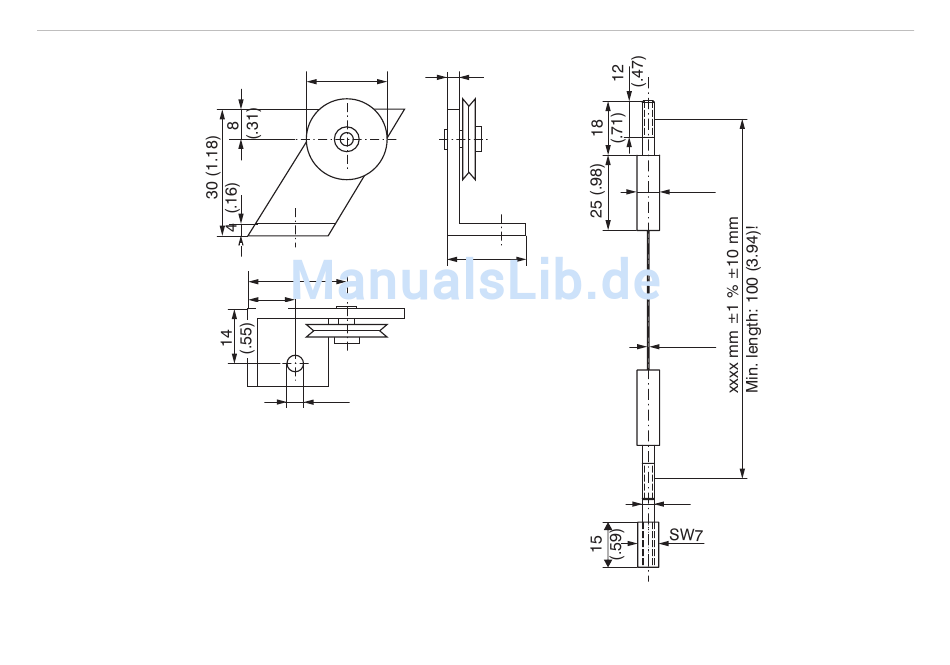

Fig. 12 Guide pulley TR3-WDS fix with mounting socket,
dimensions in mm (inches), not to scale
wireSENSOR, Z60-M / P96-M / P115-M / P200-M
ø21(.83 dia)
26 (1.02)
11
(.43)
ø4.3 (.17 dia)
4 (.16)
20 (.79)
Fig. 13 Wire extension WE-xxxx-M4, dimensions in
mm (inches), not to scale
The delivery includes:
1 Pcs. wire extension
2 Pcs. nut M4
DIN 934-A2
2 Pcs. antiturn washer
J4.3 DIN 6797
ø7.5
1 Pcs. distance piece
M4 15 mm long
(.30 dia.)
ø0.54
(.02 dia.)
M4
